GPEN GPEN11 12-57 V PoE power injector
Product Information
MikroTik RouterBOARD GPEN11
Gigabit Passive Ethernet Network 12-57 V PoE power injector

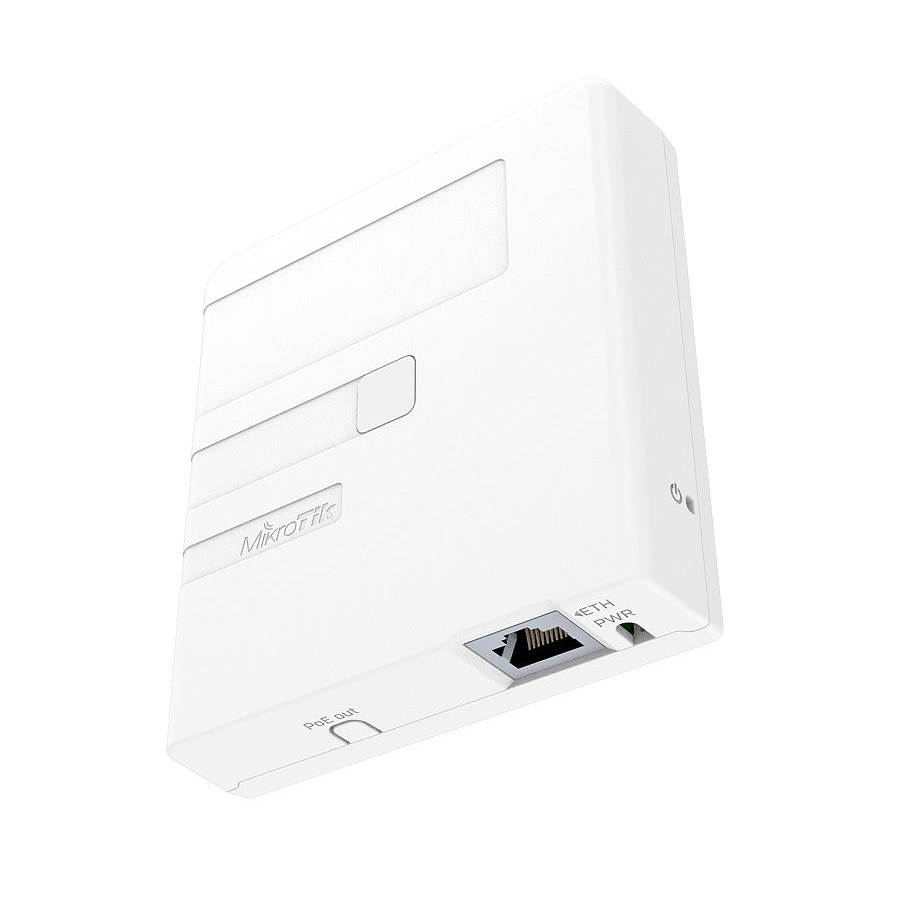

The GPEN11 is a power injector that can be mounted on a wall, and will power your uplink devices with PoE power. The GPEN11 is part of the GPEN (Gigabit Passive Ethernet Network) concept, which aims to replace GPON installations with lower cost and more easy to deploy ethernet alternative.

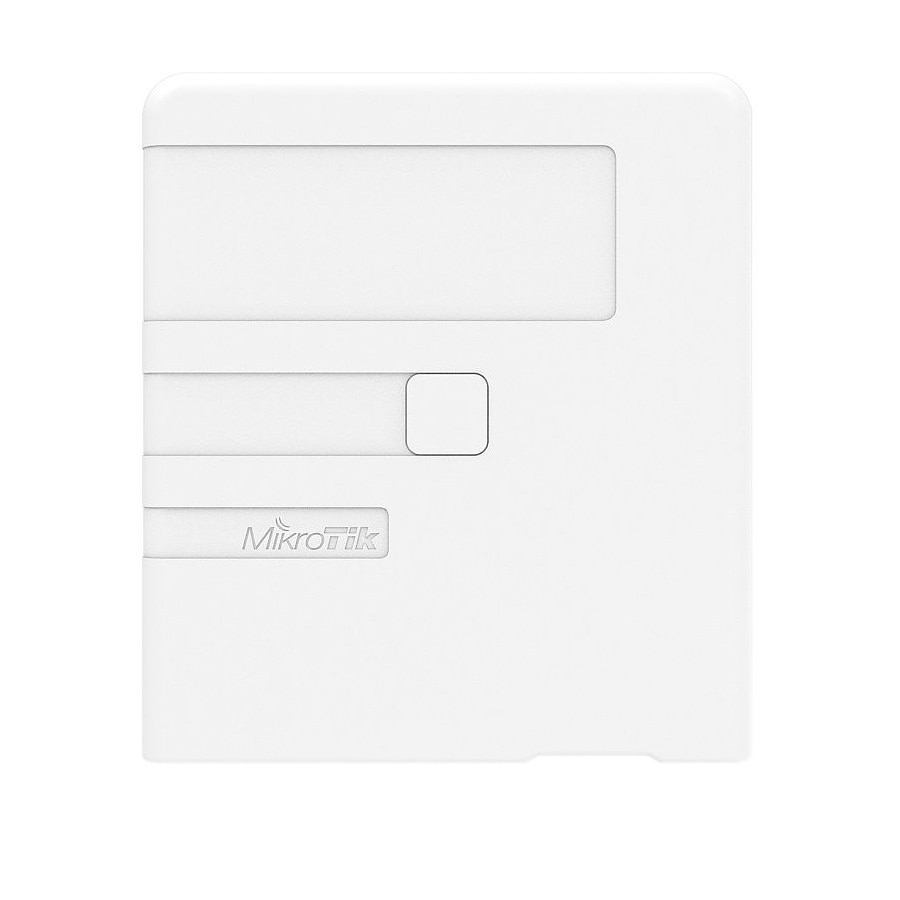

It also has a designated space for an ISP sticker on the front. Sticker size: 6,6 x 2,54 cm.
GPEN11 can be mounted inside customer premises, next to the WiFi router which provides the connectivity to the users. The GPEN11 itself will then power the ISP router, whether an outdoor wireless unit mounted on a roof, or the network switch.

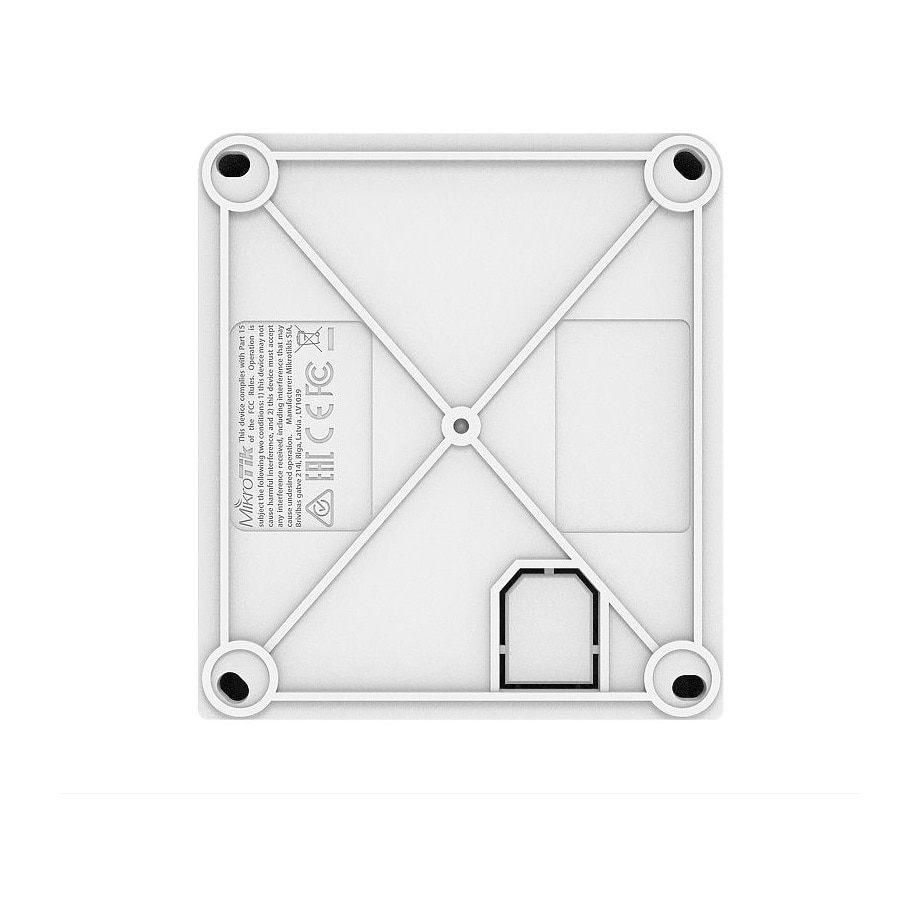

The GPEN unit can be securely attached to a wall, or communications cabinet. The ethernet cable can be routed either directly through it’s bottom cable opening, or into the wall, as preferred.
Specifications
Specifications GPEN11
| 10/100/1000 Ethernet ports | 2 |
| Number of DC inputs | 1 |
| PoE out | Yes, Passive PoE |
| Supported input voltage | 12 - 57 V |
| Dimensions | 92 x 104 x 24 mm |
| Operating temperature | -40 to 70°C |
