MikroTik RB960PGS-PB PowerBox Pro

  • SKU: RB960PGS-PB
  • Manufacturer: MikroTik
  • Data Sheet: Download
  • Quick Guide: Download
  • Block Diagram: Download
  • Availability: Call for Availability This item can sometimes be sourced and shipped direct from other locations when out of stock. Email me when this product is in stock!
    Out of stock at College Station
US$‎99.00

Specifications RB960PGS-PB

Product code RB960PGS-PB
CPU QCA9557
CPU nominal frequency 800 MHz
Size of RAM 128 MB
Memory type Flash
Memory size 16 MB
10/100/1000 Ethernet ports 5
SFP 1
Switch chip model QCA8337
PoE in Yes
Supported input voltage 12 -57 V
PoE out Ports 2 - 5, 802.3af/at, max 1 A per port (input < 30 V), max 450 mA per port (input > 30 V), max out total: 2 A
PCB temperature monitor Yes
Voltage monitor Yes
Dimensions 125 x 52 x 225 mm
Operating temperature -40°C .. +70°C tested
License level 4
Operating System RouterOS
Max power consumption 9 W

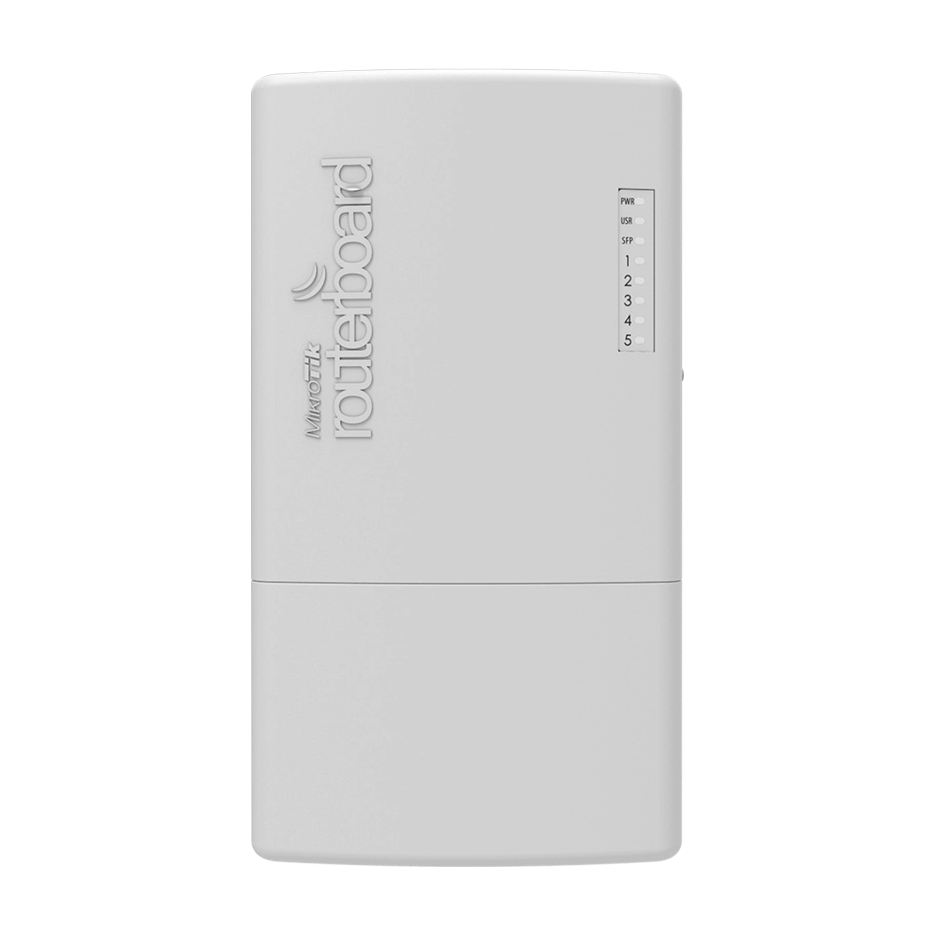

MikroTik RouterBOARD RB960PGS-PB PowerBox Pro

Five Gigabit Ethernet Router with 4xPoE-out ports, SFP cage and outdoor enclosure

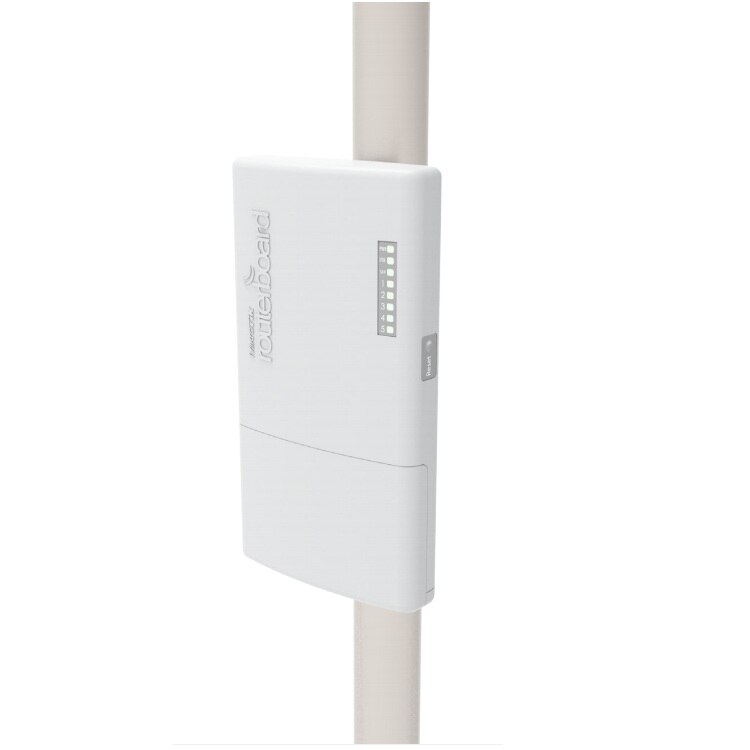

The PowerBox Pro is an outdoor five gigabit ethernet port router with PoE output on four ports. Since the device has a waterproof outdoor case, you can mount it on a tower, or in other outdoor locations.

It also supports passive PoE input and passive or 802.3af/at PoE output. Ethernet ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about! It can power 802.3at and af mode B compatible devices, if 48-57 input voltage is used.

The device has a SFP port for adding optical fiber connectivity. It is affordable, small and easy to use, but at the same time comes with a very powerful 800MHz CPU, capable of all the advanced configurations that RouterOS supports.
