Baicells Wi-Fi 6 Mesh Network Router
US$98.00
Tariff/Surcharge Fee: US$5.81
- SKU: ER2820
- Manufacturer: Baicells
- Data Sheet: Download
Product Information

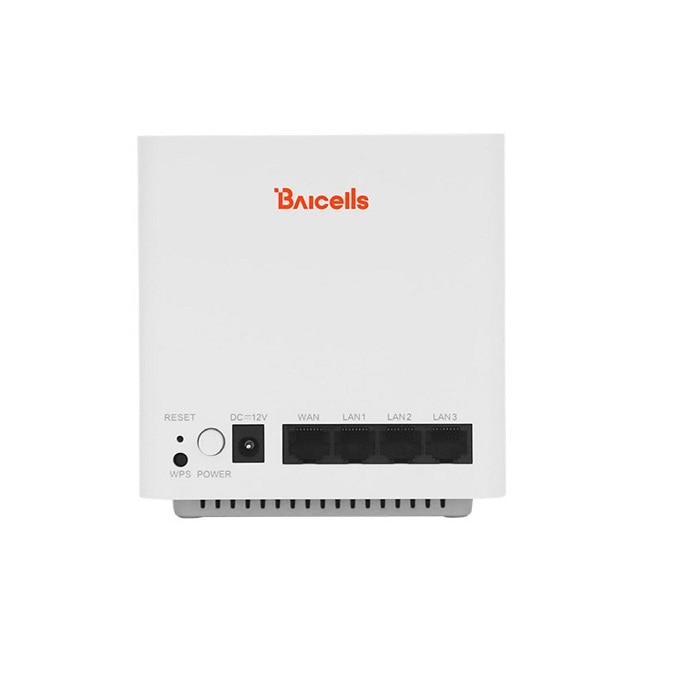

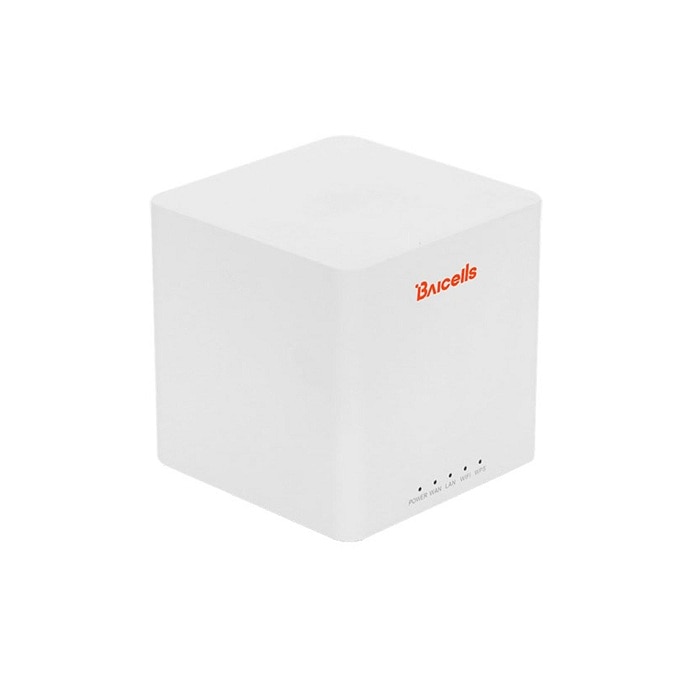

Baicells ER2820
Wi-Fi 6 Mesh Network Router
The Baicells Wi-Fi 6 Mesh Network Router is an on-premise access point that provides comprehensive routing capabilities to multiple users accessing the Internet. In a few easy steps, a mesh network can be set up to cover the whole house with reliable, high-speed Wi-Fi. The Wi-Fi 6 router supports 2.4 GHz and 5 GHz Wi-Fi standards that can be managed through the Operations Management Console (OMC).
Features:
- Standard IEEE 802.11a/b/g/n/ac/ax Wi-Fi operating in dual-band (2.4 GHz and 5 GHz) mode
- 574 Mbps at 2.4 GHz and 1.2 Gbps at 5 GHz as peak rates.
- 1 Gigabit WAN/LAN port and 3 Gigabit LAN ports
- Easy Mesh function
- Supports OMC management by TR-069 protocol
- User-friendly LED status indicators
Specifications
Specifications ER2820
| Peak Rate | 802.11b: 11 Mbps 802.11g: 54 Mbps 802.11n: 300 Mbps 802.11ac: 866 Mbps 802.11ax 5G: 1200 Mbps 802.11ax 2.4G: 574 Mbps |
| Modulation | DSSS, CCK, OFDM, MIMO-OFDM |
| Sensitivity | •11b/g: -91 dBm (1Mbps), -90 dBm (5 Mbps), -87 dBm (11 Mbps) •11a: -89 dBm (6 Mbps), -82 dBm (24 Mbps), -78 dBm (36 Mbps), -72 dBm (54 Mbps) •11n: -85 dBm (MCS0), -67 dBm(MCS7) •11ac: 20 MHz: -85 dBm (MCS0), -60 dBm (MCS9) •11ac: 40 MHz: -82 dBm (MCS0), -57 dBm (MCS9) •11ac: 80 MHz: -79 dBm (MCS0), -53dBm (MCS9) •11ax: HE80: -79 dBm (MCS0), -53 dBm (MCS9), -53 dBm (MCS11) |
| Max Output Power | 24 dBm |
| Antenna Type | Internal omni, 2T2R |
| Antenna Gain | 5 dBi (for 2.4 & 5 GHz) |
| Active Users | 128 |
| SOFTWARE | |
| Network Mode | NAT, Bridge or Wireless Relay |
| IP Protocol | IPv4/IPv6 |
| Network Connection | DHCP, Static |
| WLAN | WPS, Wireless Roaming, 5G Priority |
| VPN | N/A |
| NAT | Basic NAT |
| Firewall | ACL, URL, MAC, Schedule |
| Network Management | WebUI, TR-069* |
| Diagnostics | Ping, Traceroute, DNS lookup |
| Statistics | •RAM utilization •Online user •Device running time •SSID configuration •Port status |
| Maintenance | •System time •Login management •Configuration management •LED setting •System upgrade •Reboot |
| System Logs | Device status, client status, configuration change, user login |
| Antenna Selection | N/A |
| ENVIRONMENTAL | |
| Operating Temperature | 23°F to 113°F / -5°C to 45°C |
| Storage Temperature | -40°F to 158°F / -40°C to 70°C |
| Operating Humidity | 5% to 95% RH |
| IP Protection Rating | IP41 |
