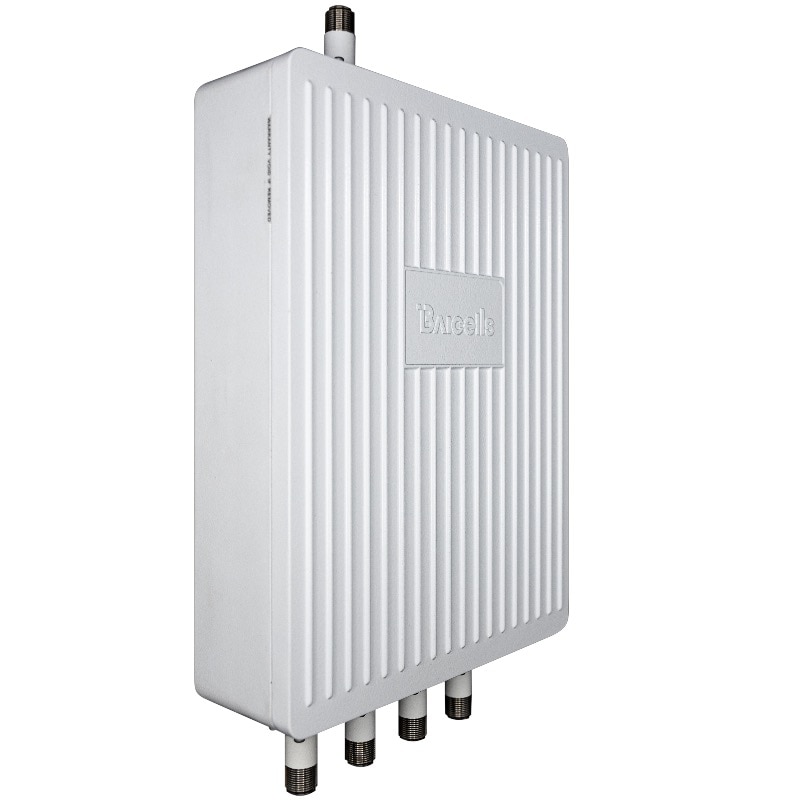

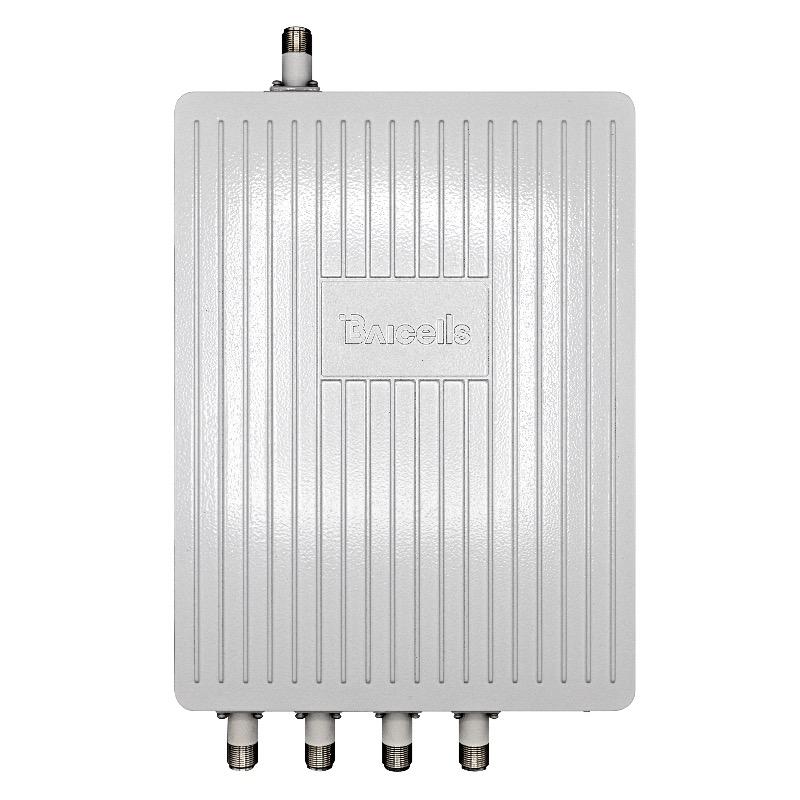

Baicells Nova430e Outdoor TDD eNodeB (external antenna)
- SKU: pBS3101SE
$1,349.00
Product Information
Baicells pBS3101SE
Nova430e Outdoor TDD eNodeB - LTE Release 15, 4x250mW (24 dBm), 4-port, 3.5 GHz (3550-3700 MHz), B48, External Antenna
The Baicells Nova430e is an advanced two-carrier outdoor eNodeB (eNB) compliant with 3GPP LTE TDD technology. This 4x250 mW eNB operates in Carrier Aggregation (CA) mode or Dual Carrier (DC) mode.
In CA mode, Nova430e supports 2CC (2 Component Carriers) DL/UL CA. 2CC DL/UL CA doubles DL/UL peak throughput compared to a single carrier by aggregating two separate spectrum resources into a virtual contiguous spectrum resource.
In DC mode, each carrier is treated as an independent cell, supporting 128+128 users with each cell supporting 5, 10, 15, or 20 MHz bandwidth. Using a Nova430e in DC mode simplifies and streamlines the deployment of split sectors.
In addition, HaloB (an embedded EPC option) is available on the Nova430e as part of the base software. The Baicells patented HaloB solution migrates the necessary core network functions to the eNB.
This product has a standard one-year warranty; an extended warranty is available.
Features:
- Standard LTE TDD Band 48
- GUI-based local and remote Web management.
- Compact, all-in-one design of internal antenna and GPS.
- Excellent Non-Line-of-Sight (NLOS) coverage.
- Peak rate for DL: Up to 290 Mbps with 2x20 MHz bandwidth.
- Peak rate for UL: Up to 70 Mbps with 2x20 MHz bandwidth.
- 2CC DL/UL CA improves the spectrum efficiency of fragmented spectrum resources.
- Suitable for private and public deployments; any IP-based backhaul can be used, including public transmission protected by Internet Protocol Security (IPsec).
- 128 RRC connected users per carrier (128+128 in DC mode), upgradeable to higher capacity in future releases.
- Integrated small cell form factor for quick and easy installation.
- Configured out-of-the-box to work with Baicells CloudCore.
- HaloB as embedded EPC solution.
- Supports Transparent Bridge Mode.
- Supports Citizens Broadband Radio Service (CBRS) with proxy/direct Spectrum Access System (SAS.
- Supports Multi Operator Radio Access Network (MORAN).
- Supports static Inter Cell Interference Coordination (ICIC).
- Plug-and-play with Self-Organizing Network (SON) capabilities.
- Interoperable with standard LTE Evolved Packet Core (EPC).
- Supports TR-069 network management interface.
- Lower power consumption, which reduces OPEX.
Specifications
Specifications pBS3101SE
| Standard | LTE TDD RAN (3GPP Release 15 compliant) |
| TDD UL/DL Configuration | 1, 2, 6 (with Special Subframe Configuration 7) |
| Frequency Band | B48 (3550 MHz–3700 MHz) |
| Channel Bandwidth | SC: 5/10/15/20 MHz CA: 40 MHz as maximum aggregated bandwidth |
| Multiplexing | MIMO: 2x2 (DL) |
| Security | Radio: SNOW 3G/AES-128 Backhaul: IPsec (X.509 AES-128, AES-256, SHA-128, SHA-256) |
| INTERFACE | |
| Ethernet Interface | 1 RJ-45 Ethernet interface (1 FE/GE) |
| Power Supply | PoE++ (IEEE 802.3bt compliant) |
| Protocols Used | IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, SSH, IPsec, TR-069, HTTP/HTTPs, 1588v2, DHCP |
| Network Management | IPv4/IPv6, HTTP/HTTPs, SNMPv2c, TR-069, SSH, Embedded EPC |
| VLAN/VxLAN | 802.IQ/VxLAN |

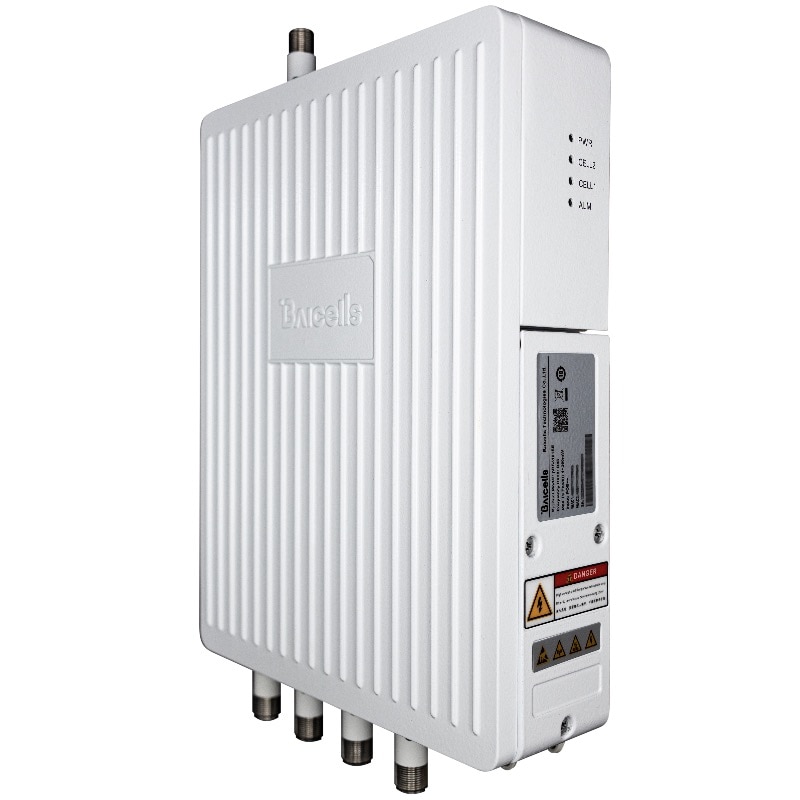

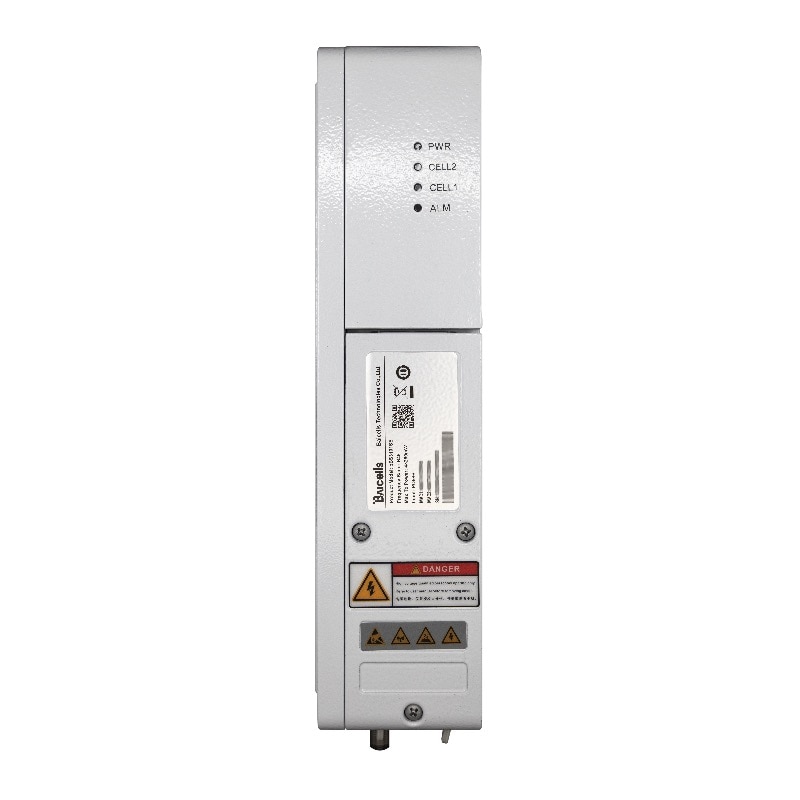

| LED Indicators | 4 x status LED CELL1/CELL2/ALM/PWR |
| PERFORMANCE | |
| Peak Data Rate (DC) | 2x20 MHz |
| User Capacity | Up to 128 RRC connected users per cell (4 users per TTI) • SC/CA: 128 RRC connected users • DC: 128 +128 RRC connected users |
| Maximum Deployment Range | 5 kilometers |
| Latency | 30 milliseconds |
| Receive Sensitivity | -100 dBm (per channel) |
| Modulation | MCS0 (QPSK) to MCS27 (256 QAM) DL: QPSK, 16 QAM, 64 QAM, 256 QAM UL: QPSK, 16 QAM, 64 QAM |
| Transmit Power Range | 0 to 24 dBm per channel (combined +30 dBm, configurable) (1 dB interval) |
| Quality of Service | Nine-level priority indicated by QoS Class Identifiers (QCI) |
| ARQ/HARQ | Yes |
| Synchronization | GPS, 1588v2 |
| Voice | VoLTE* |
| NSA | Supported |
| SON | Self-Organizing Network • Automatic setup • Automatic Neighbor Relation (ANR) • PCI confliction detection |
| EPC | HaloB (Embedded EPC) |
| Traffic Offload | Local breakout |
| Layer 2 Support | Transparent Bridge Mode |
| Maintenance | • Local/Remote Web maintenance • Online status management • Performance statistics • Fault management • Local/Remote software upgrade • Logging • Connectivity diagnosis • Automatic start and configuration • Alarm reporting • User information tracing • Signaling trace |
| LINK BUDGET | LINK BUDGET |
| Antenna Connection | N-Type connector for external high-gain antenna |
| GPS Antenna | External GPS antenna, N-Type connector |
| Power Control | UL Open-loop/Closed-loop Power Control, DL Power Allocation (3GPP TS 36.213 compliant) |
| PHYSICAL | |
| Surge Suppression | Yes |
| Power Interface Lightning Protection | Differential mode: ±10 KA Common mode: ±20 KA |
| MTBF | ≥ 150000 hours |
| MTTR | ≤ 1 hour |
| Ingress Protection Rating | IP65 |
| Operating Temperature | -40°F to 131°F / -40°C to 55°C |
| Storage Temperature | -58°F to 149°F / -50°C to 65°C |
| Humidity | 5% to 95% RH |
| Atmospheric Pressure | 70 kPa to 106 kPa |
| Power Consumption | Typical 20 W, maximum 25 W |
| Weight | With pre-installed bracket: 10.5 lb/4.75 kg Without bracket: 9.6 lb/4.35 kg |
| Dimensions (HxWxD) | With joint: • 15.0 x 8.9 x 3.0 inches • 381 x 227 x 75 millimeters Without joint and handle: • 12.2 x 8.9 x 3.0 inches • 311 x 227 x 75 millimeters |
| Installation | Pole or wall mount |
