Baicells Atom ID04 2.5GHz 5dBi Gen2, B40/41
US$195.00
Tariff/Surcharge Fee: US$9.45
- SKU: EG2030C-M1
- Manufacturer: Baicells
- Data Sheet: Download
Product Information

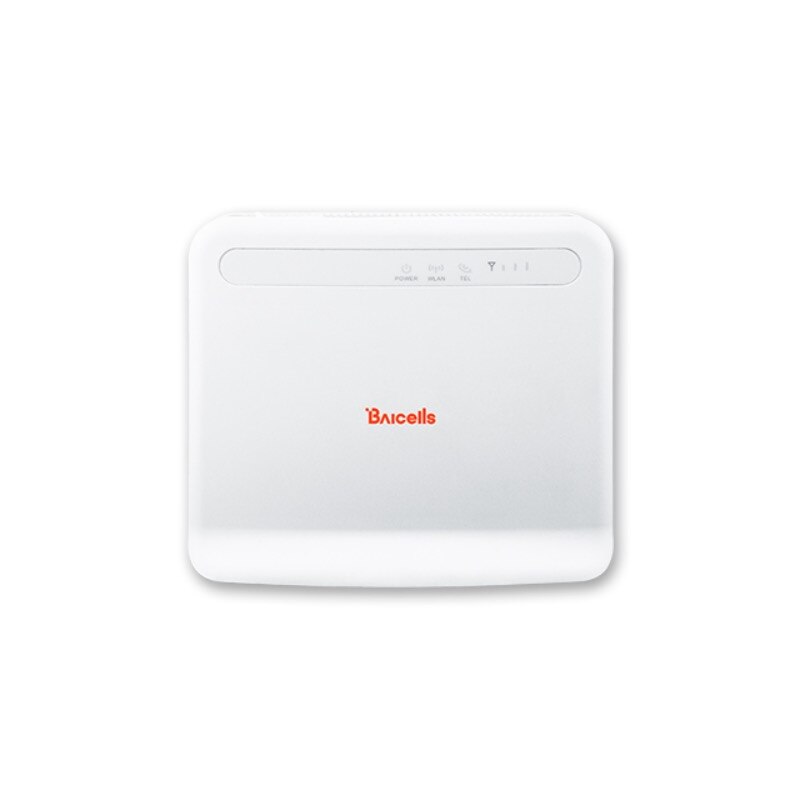

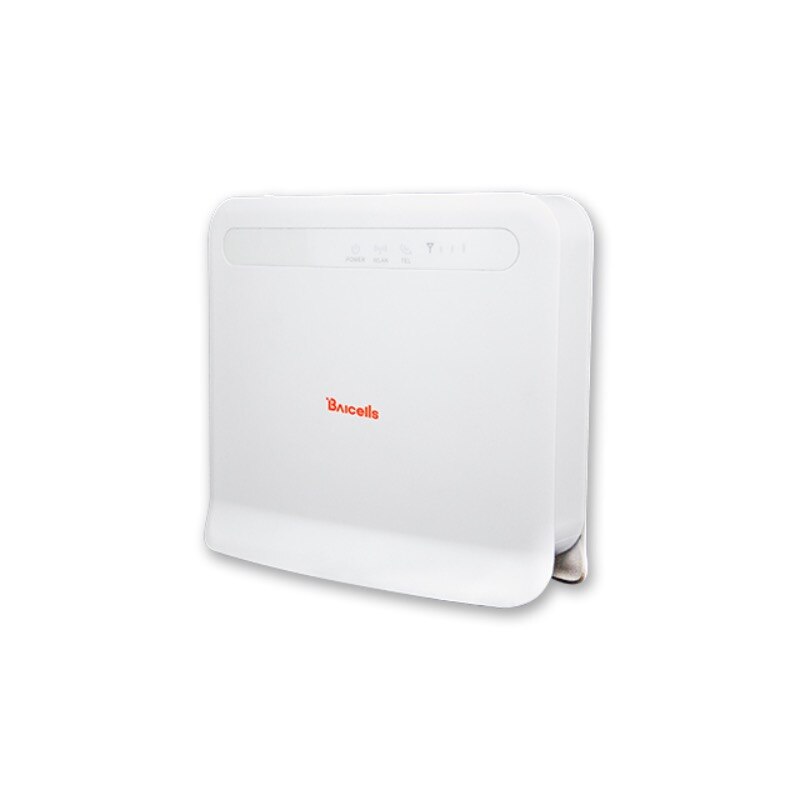

Baicells EG2030C-M1
Atom ID04 2.5GHz 5dBi antenna Gen2 Indoor CPE - CAT 4, 1T2R, Band B40/41
The Baicells Atom ID04 Indoor User Equipment (UE) provides superior wireless access performance and routing capabilities to bring broadband data and voice services to end-users.
It converts high-speed Long-Term Evolution (LTE) Time Division Duplexing (TDD) signals to Wi-Fi signals on the local area network (LAN). Wireless and wired devices, including mobile phones, laptops, tablets, and other smart devices, can access the UE simultaneously
Features:
- Supports LTE TDD Bands 40/41
- 2.5 GHz models
- Complies with 3GPP Release 9 Cat4 standards
- 100 Mbps Ethernet interface
- IEEE 802.11b/g/n Wi-Fi compliant, 2.4 GHz supported
- GUI-based local and remote Web management
- TR069 network management protocol support
- Cell lock, SIM lock, and pin lock
- User-friendly LED status indicators
Specifications
Specifications EG2030C-M1
| BASIC SPEC | |
| LTE Standard | 3GPP Release 9 Cat4 |
| ETH LAN Port | 1 RJ-45 port 10/100 auto-sensing, auto-MDX |
| LED Indicators | Power, LTE, LTE Signal, WLAN |
| USIM | 1.8V/3V 2FF |
| Restore | Button Press for 10 seconds to restore the UE to its factory settings |
| Power Switch | On/Off |
| Power Supply | Input: Universal range 100V to 240V AC Output: 12VDC |
| Battery | Customization |
| Dimensions (HxWxD) | 7.6 x 6.6 x 2.9 inches 193 x 168 x 74 millimeters |
| Weight | 14 oz / 400 g |
| RF SPEC | |
| LTE Mode | TDD |
| Channel Bandwidth | 5/10/15/20 MHz |
| Max Output Power | 23 ± 2 dBm |
| Frequency Bands | 40/41/42/43/48 |
| Peak Rate (20 MHz) | DL 100 Mbps, UL 10 Mbps (2:7) Modulation DL: QPSK, 16QAM, 64QAM UL: QPSK, 16QAM |
| Receive Sensitivity | -94 dBm @ QPSK, 20 MHz, 25°C |
| Antenna Type | Internal Omni, 1T2R |
| Antenna Gain | 6.5 dBi @ 3.x GHz 5 dBi @ 2.x GHz |
| Antenna Polarization | Linear, vertical |
| Antenna Efficiency | > 70% |
| Isolation | N/A |
| VSWR | ≤ 2 |
| Horizontal Beamwidth (3 dB) | N/A |
| Vertical Beamwidth (3 dB) | N/A |
| SOFTWARE SPEC | |
| Network Mode | NAT or Bridge |
| IP Protocol I | Pv4/IPv6 |
| SIM | PIN management, SIM lock |
| Network Connection | Auto or manual |
| LTE Scan Mode | Full band scan or frequency lock |
| WLAN | WPS, MSSID isolation, VLAN |
| VPN | L2TP, GRE, PPTP, L2 VxLAN |
| NAT | Port forwarding, port trigger, DMZ, ALG |
| Firewall | IP/MAC/URL filter; access control; block port scanner/SYN flood; SPI filter |
| Network Mgmt | TR069, SNMP |
| Diagnostics | TCP dump, ping, traceroute |
| Statistics | LTE status; connection/system up time; device status; DHCP client list; Wi-Fi station list; firewall status |
| Maintenance | Date and time setting; reboot; restore factory settings; restore or back up configuration file; firmware upgrade locally or OTA |
| System Logs | Operating; run-time; filter/ select / display / export |
| ENVIRONMENTAL SPEC | |
| Operating Temperature | 14°F to 113°F / -10°C to 45°C |
| Storage Temperature | -4°F to 158°F / -20°C to 70°C |
| Humidity | 5%~95% |
| Wi-Fi SPEC | |
| Standard IEEE | 802.11b/g/n |
| Channel Bandwidth | 20/40 MHz |
| Frequency | 2.4 GHz |
| MIMO | 2x2 |
| Peak Rate | 802.11b: 11 Mbps 802.11g: 54 Mbps 802.11n: 300 Mbps |
| Modulation | DSSS/CCK, OFDM |
| Receive Sensitivity | • -64 dBm @ 65 Mbps, typical for 802.11n • -65 dBm @ 54 Mbps, typical for 802.11g • -76 dBm @ 11 Mbps, typical for 802.11b |
| Max Output Power | 17 ± 3 dBm |
| Antenna Type | Internal omni, 2T2R |
| Antenna Gain | 2 dBi |
| Active Users | 32 |
