ICT Power Module, 48VDC, 700W Output, Hot Swappable, Floating Output

ICT ICT700-48PM

Power Module, 48VDC, 700W Output, Hot Swappable, Floating Output

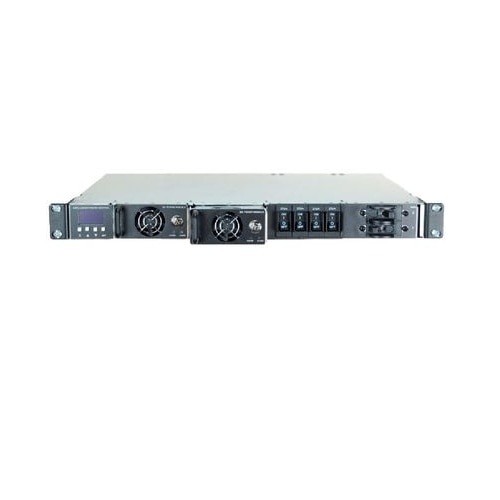

1RU Redundant Hot Swap Modular Power System for 48, 24 or 12 volts DC

The ICT Modular Power Series system provides flexible, managed DC power for a broad range of communications and broadband applications. The foundation is the power shelf and 700 watt high efficiency power modules. A number of optional factory-installed modules can be selected to provide TCP/IP monitoring and control, advanced battery management features, battery breakers, low voltage disconnects, and four-position breaker-protected power distribution including load current monitoring and remote power cycling over Ethernet.

The ICT Modular Power Series provides N+1 redundancy with 700 watt hot swappable 12, 24 or 48 volt power modules. The power shelf can accommodate one to four power modules and one or two accessory modules. A dedicated slot holds the optional Intelligent Control Module for full TCP/IP remote monitoring and control. When combined with the optional Battery Management Module, the Intelligent Control Module also provides advanced battery functions including battery state of charge, estimated run time remaining, and battery discharge testing.

Power Shelf

• Intelligent Power Shelf with fully integrated Intelligent Control Module provides remote monitoring and control of DC power system over Ethernet
• Up to 2800 watts of power with N+1 redundancy in a single shelf
• Hot swappable 700 watt, high efficiency power modules Accommodates optional Battery Management Module and Load Distribution Module in 1RU space
• Flexible configurations allow you to select the right DC power system for your needs

Power Modules

• 100-300 volts AC input with Power Factor Correction
• 700 watts continuous power output
• 12, 24 or 48 volts nominal DC
• 90-93% efficiency
• -30 to +60C operating temperature range
• Hot-swappable Power Modules

Load Distribution Module

• TCP/IP remote management and power control of individual outputs (with Intelligent Control Module installed) Four fully managed load outputs can be power
• Monitoring and alarm reporting of each output for pinpointing of issues with connected loads
• Adjustable alarm and load-shed settings for each output

Intelligent Control Module

• High resolution OLED display with Intelligent front panel controls fully integrated into Power Shelf
• TCP/IP remote Ethernet communications Embedded web server with easy to use Graphical User Interface
• Intelligent monitoring, reporting and control of system and all installed modules
• Full monitoring and control of second slave power shelf
• HTTPS, SMTP, SNMP protocols supported
• Alarms can be sent to multiple email accounts
• Four site monitoring sensor inputs with alarm reporting
• Data logging
• Password protection

Battery Management Module

• Single or dual 100 amp battery disconnect circuit breakers
• Integrated 150 amp low voltage disconnect
• Advanced battery management features (with Intelligent Control Module installed) including temperature compensated charging, display of battery voltage, status, battery current, state of charge, run time remaining; adjust LVD settings; configure advanced battery management features such as boost charge parameters, max charge current, battery capacity, battery test timer, and battery discharge test cut-off voltage.
