LightSaber 12RU 25.9"Hx24"Wx18"D Outdoor Pole Mount Battery Cabinet, NEMA 4X Rated|Grey

  • SKU: LSO-12UOD-600450-2BAT-PM
  • Manufacturer: LightSaber
  • Data Sheet: Download
  • Availability: 43 In Stock    (updated live)
US$‎345.00

Add-Ons (click to select)

Specifications LSO-12UOD-600450-2BAT-PM

Physical
Protection ClassNEMA 4X
Rack Unit Size2U
Battery Space Size10U (20.39inch, can hold of 4 Battery or 8 battery)
Cabinet TypePole-Mount with U Bolt (or hose clamps) or Wall-Mount
ColorGrey RAL7035
MaterialCold-rolled Steel
Unit Dimension(WxDxH)23.62 x 17.7 x 25.9 inches (without lock and mounting bracket)
Unit Weight(lbs.)80 lbs
Internal Depth (Front Rail to Back Door)14.57 inches
Rail to Rail DepthN/A
Shipping Dimension(WxDxH)25.59 x 20.09 x 28.15 inches
Shipping Weight(lbs.)84.85
Electrical
CoolingAC110V Cooling Fan x 1 (with tem. Controller)
GroundingEarthing Copper Bar,Grounding Wire
OtherN/A
Certifications
SafetyCE
ApprovalsDIN41491, DIN41494, EIA/ECA-310-E, IEC 60297-3-100, RoHS
Warranty
Product Warranty1 Year

LightSaber 12RU 25.9"Hx24"Wx18"D Outdoor Pole Mount Battery Cabinet, NEMA 4X Rated|Grey

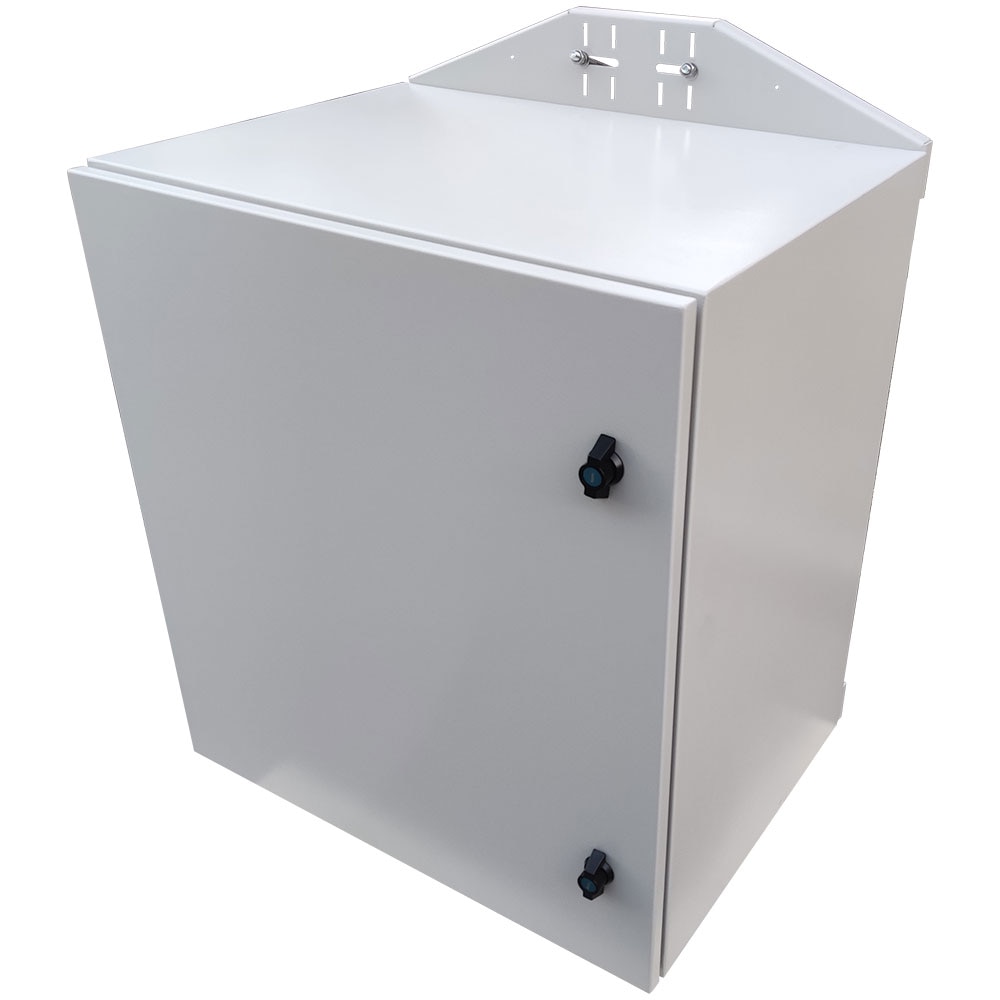

12RU 25.9"Hx24"Wx18"D Outdoor Pole Mount Battery Cabinet, NEMA 4X Rated

The LSO-12UOD-600450-2BAT-PM outdoor enclosure has feature of 2RU equipment mounting space plus 2 battery shelf storage space (10.4inch), which is designed for applications that require a sturdy, weatherproof enclosure to house various electronics. They are made from UV resistant materials and gasket sealed for long service life. They are able to be both wall or pole mounted with the included U-Bolts. Heavy duty pole mounting can accommodate up to a 4" diameter pole. For larger poles, stainless steel straps are recommended.

The enclosure is designed to be passively ventilated and also includes AC110V cooling fans with temperature controller, and turns on when interior temperatures reached setup temperature.

Comes with (2) cable glands and (2) cable grommets for weatherproof cable entry/exit mounted in the bottom of the enclosure.This outdoor enclosure is constructed of high quality steel, corrosion resistant and powder coated finish.

Feature:

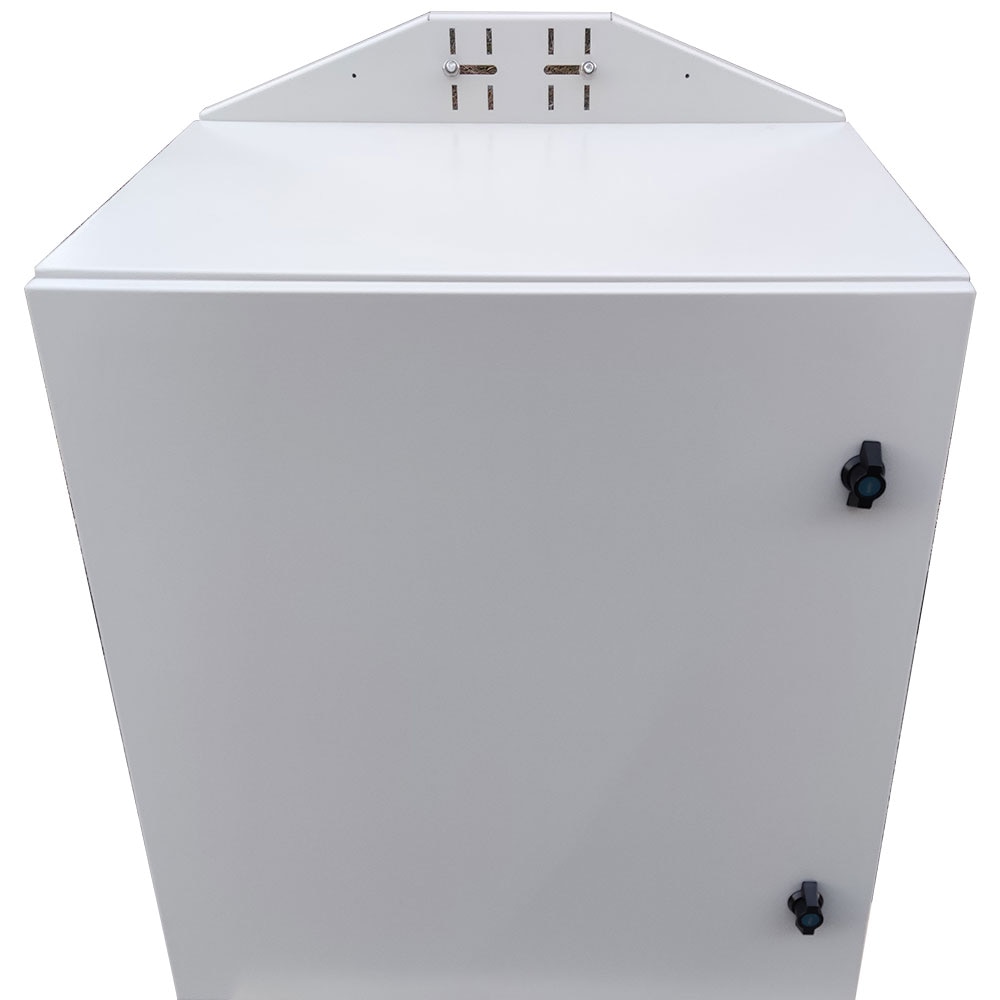

  • Front door opening access
  • Weatherproof Nema 4X / NEMA 4X, UV resistant
  • 2U 19” Rackmount Shelf

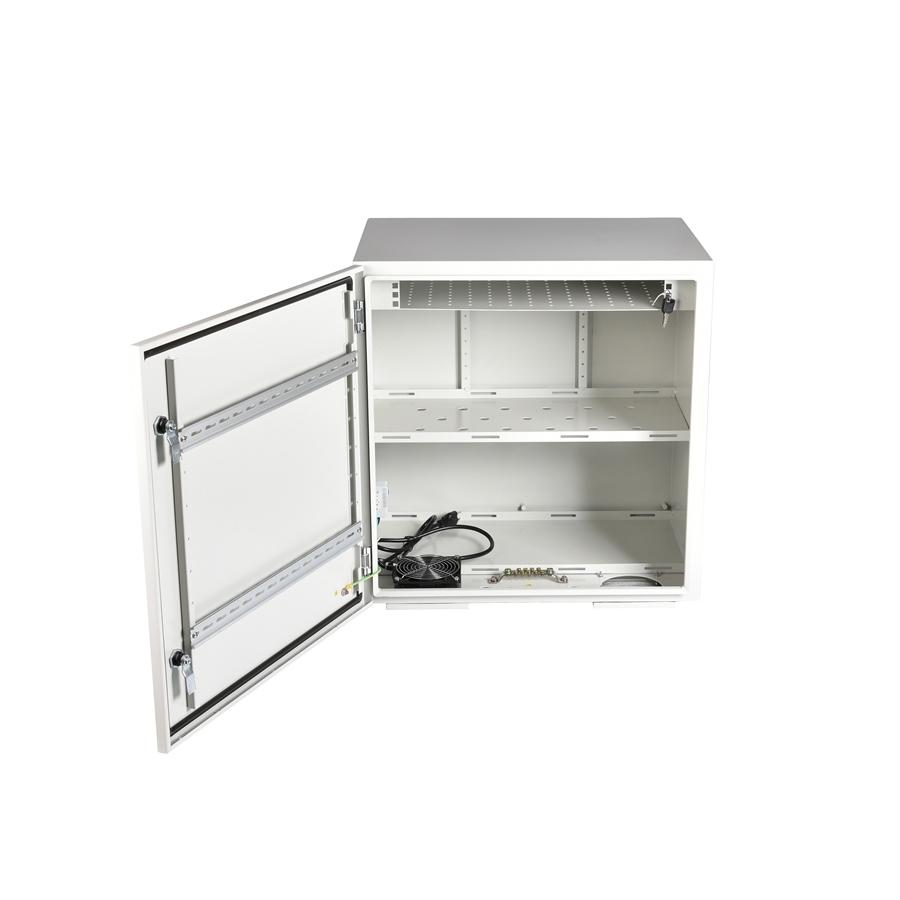

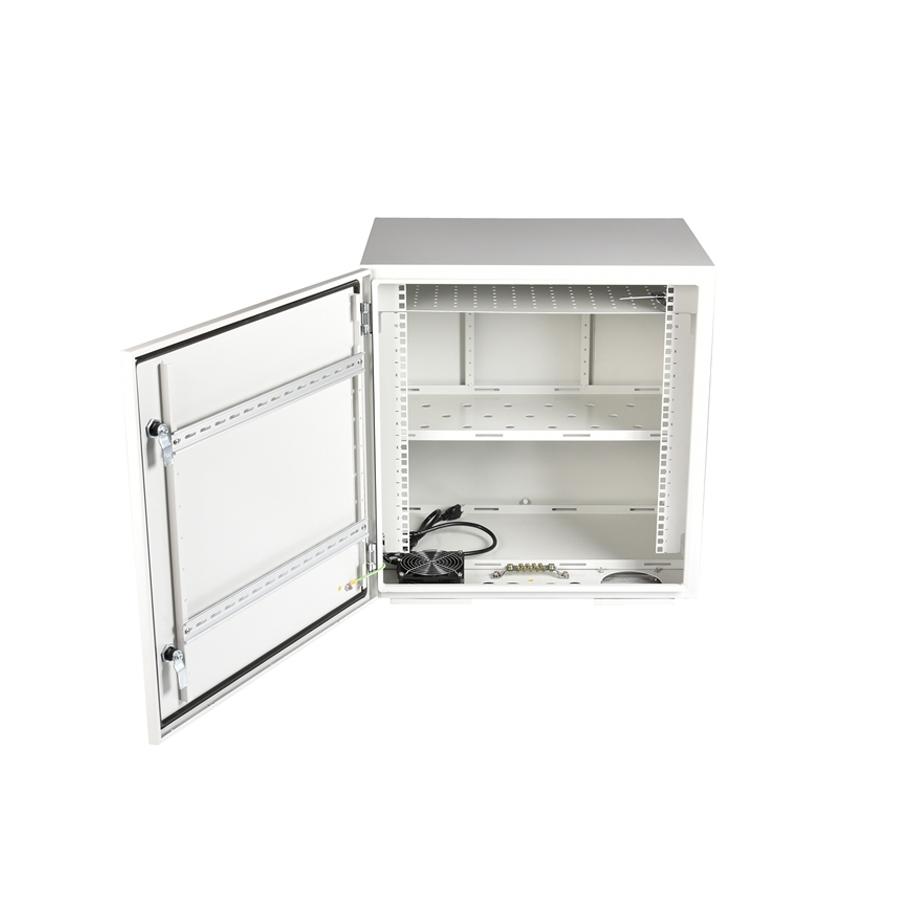

  • 2x Battery Shelves, Can Hold up to 400Ah of Battery

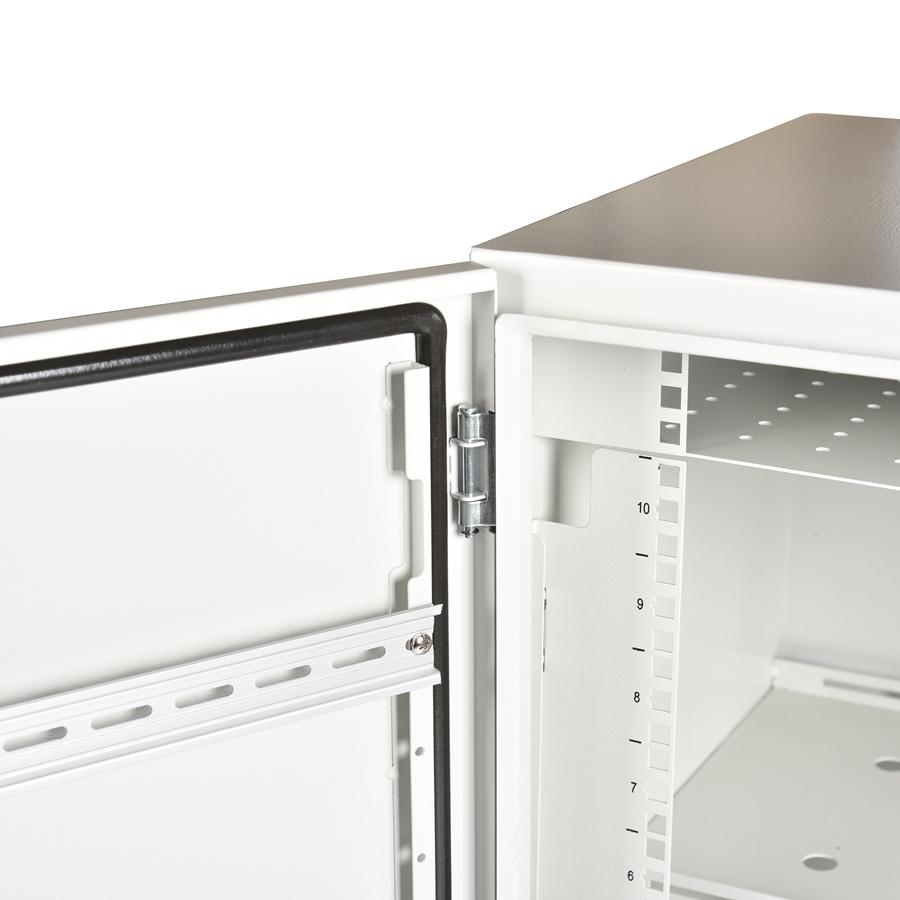

  • Built in DIN Rails on Inside Door( x 2) and Mounting inside Cabinet (x4)
  • AC110V Cooling Fan for cooling the cabinet if necessary
  • Grounding copper bar
  • Cable entry holes with gromment and cable gland on the bottom
  • Wall and Pole Mountable (Includes Mounting Hardware)

Also comes with:

  • 1x AC110V Cooling fan (with temperature controller)
  • 2x DIN Rail on the front door

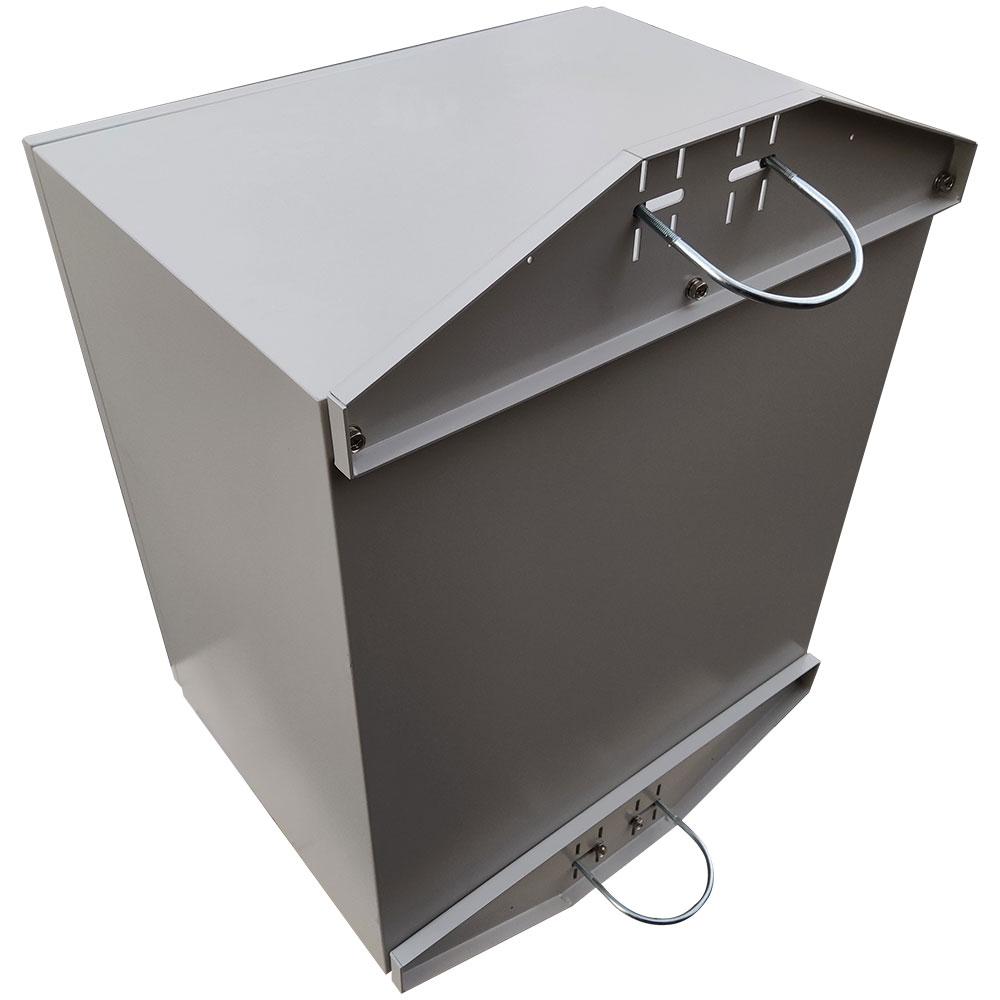

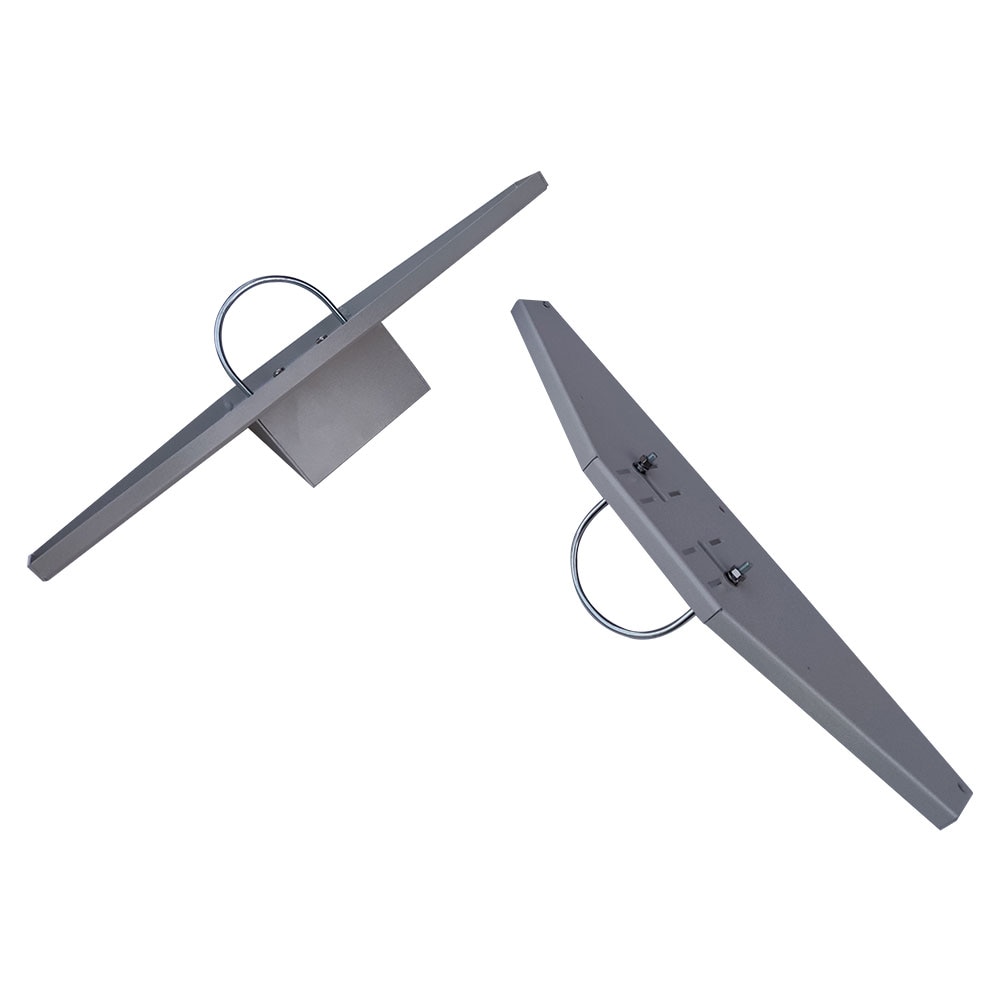

  • 4 x Pole-mount bracket kits (includes U Bolt mounting hardware)
  • 1 x Bottom Support bracket kits (includes mounting hardware)

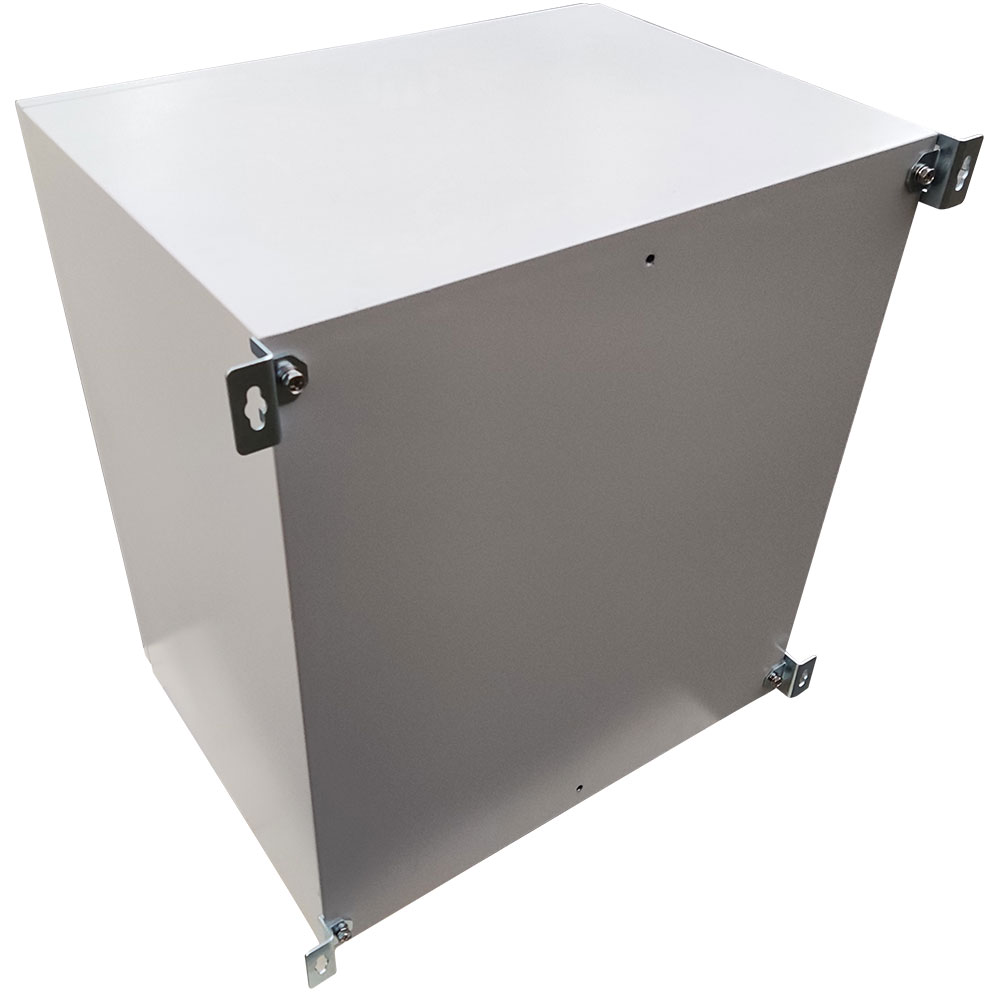

  • 4 x Wall Mount Kits
  • 12 x M6 cagenut
  • 2 x Keys
  • 1 x Manual
