MikroTik LDF 2 Outdoor Wireless System

(0) No Reviews yet
  • SKU: RBLDF-2nD
  • Manufacturer: MikroTik
  • Data Sheet: Download
  • User Guide: Download
  • Block Diagram: Download
  • Availability: 33 In Stock (updated live)
$39.00

Specifications RBLDF-2nD

Product code RBLDF-2nD
CPU QCA9533 650 MHz
Memory 64 MB
Storage type Flash
Storage size 16 MB
Ethernet One 10/100 Mbit/s Fast Ethernet port with Auto-MDI/X
Wireless QCA9533, wireless built-in 2.4 GHz 802.11b/g/n, dual chain
Wireless regulations Specific frequency range can be limited by country regulations
Frequency range 2412 - 2484 MHz
Power options Passive PoE input 10-28 V
Consumption 7 W
Internal antenna gain 10 dBi
Antenna beam width 60°
Dimensions 84mm x 84mm x 115mm
Operating temperature -40°C .. +70°C tested
LEDs 8x LEDs (7x user LEDs)
License level 3
Operating system RouterOS

Wireless specifications
Rate Tx Rx
1MBit/s 26 -100
11MBit/s 26 -93
6MBit/s 28 -94
54MBit/s 24 -78
MCS0 28 -94
MCS7 23 -75

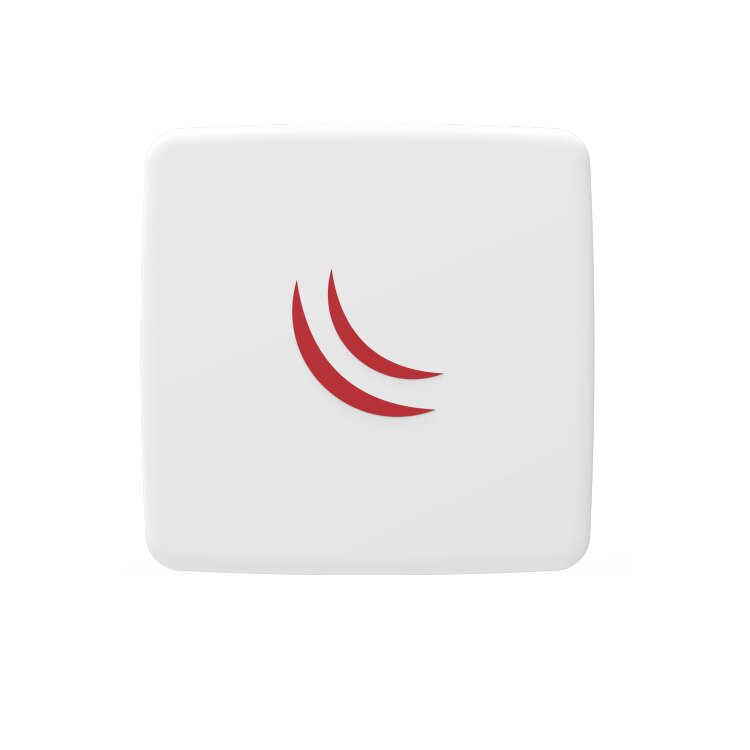

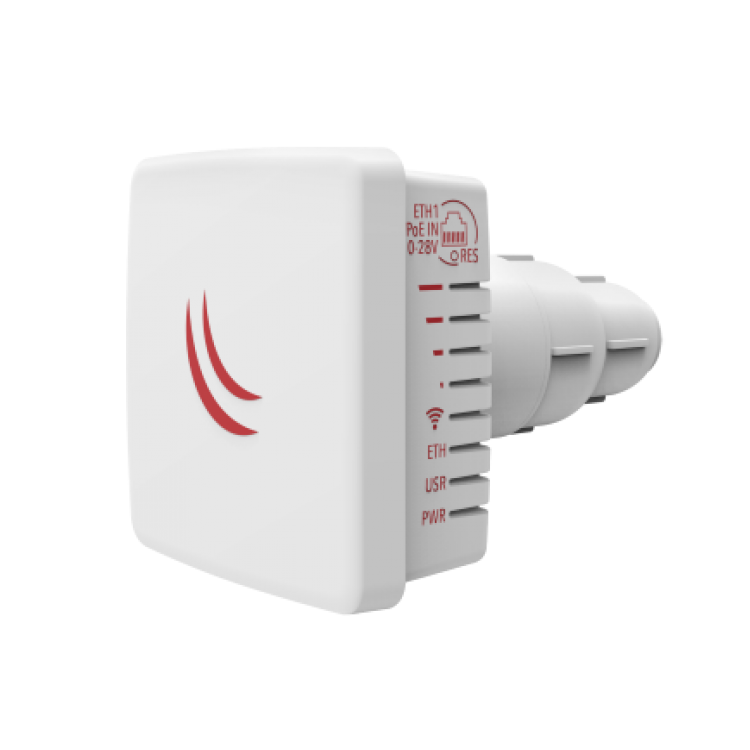

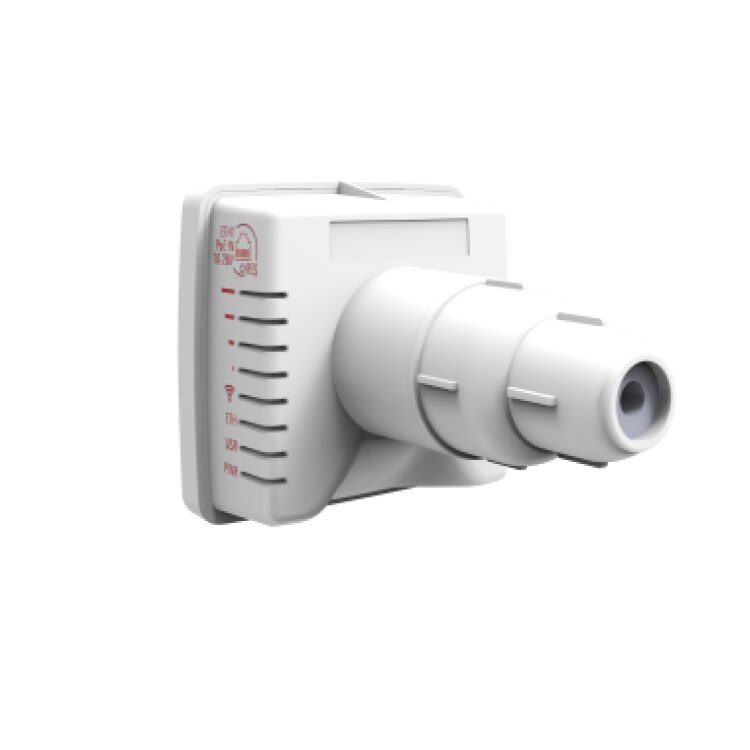

MikroTik RouterBOARD RBLDF-2nD

MikroTik LDF 2 for ultra-long 2.4GHz links outdoor wireless system

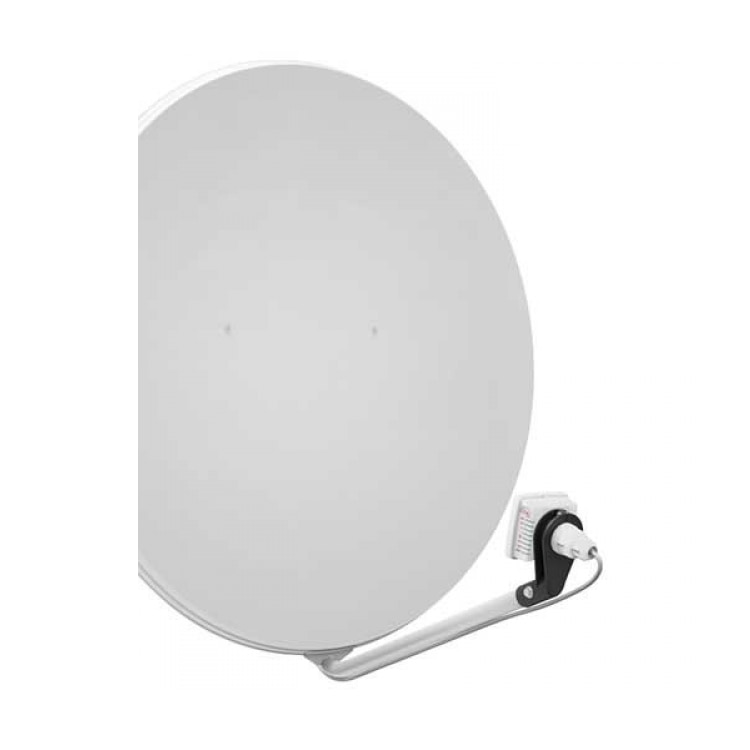

The LDF (Lite dish feed) is an outdoor wireless system with a built in antenna, meant to be installed on satellite offset dish antennas. The dish will act as a reflector, amplifying the signal.

This means you can use any available satellite TV dish with an offset mount to quickly deploy powerful long range wireless links. The offset mount is universal at 40 mm diameter, and the LDF can easily be placed inside it. Since the LDF itself is a tiny little package, it makes shipping and deployment simple and low cost.

Using large enough dishes, it is possible to obtain antenna amplification of 30 dBi or more. All it takes is to find a spare satellite dish with an offset mount, and put your LDF device. The device comes preinstalled with RouterOS and is ready to use.
