  • Primus Cable CAT6 Outdoor Ethernet Cable, Direct Burial Shielded Solid Copper, Gel Filled (1000ft)

Primus Cable CAT6 Outdoor Ethernet Cable, Direct Burial Shielded Solid Copper, Gel Filled (1000ft)

(0) No Reviews yet
  • SKU: C6CMXFS-1864BK
  • Manufacturer: Primus Cable
  • Data Sheet: Download
  • Availability: 1 In Stock (updated live)
$269.00

Specifications C6CMXFS-1864BK

Physical Characteristics
Conductor Size23AWG
Conductor MaterialSolid Bare Copper
Insulation MaterialHigh Density Polyethylene (HDPE)
Insulation Diameter1.12 ± 0.04mm
Number Of Conductors8 Conductors
Number Of Pairs4 Pairs
Outer Jacket Rip CordYes
Outer Shield MaterialAL Foil
Drain WireYes
Outer Jacket MaterialLDPE (Complies RoHS)
Outer Jacket Diameter7.8mm ± 0.4mm
Rip CordYes

Primus Cable C6CMXFS-1864BK

CAT6 Outdoor Bulk Ethernet Cable, Direct Burial Shielded Solid Copper, Gel Filled, 23 AWG 1000FT

Primus Cable's Shielded Outdoor Direct Burial Gel-Filled CAT6 Cable is ideal for your outdoor voice, data, video and security networking applications. Whether you are wiring your home, office or entire campus, we have the network solution that is right for you.

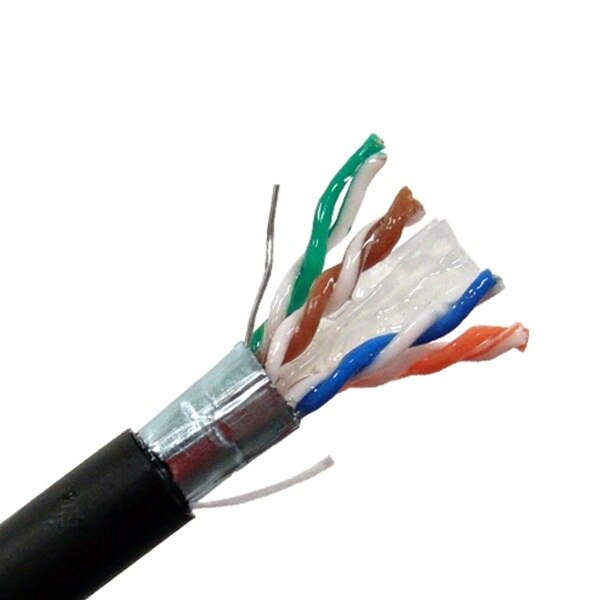

This Shielded Outdoor Gel-Filled Direct Burial CAT6 Cable is the perfect fit for installations where the cable will be buried under ground in conduit. This cable's 8 conductors (4-Pairs) are solid bare copper with a high density polyethylene (HDPE) insulation and a low density polyethylene (LDPE) Jacket. For added moisture protection this cable includes a Gel-filling that repels water keeping it out of the cable and away from the conductors. Our Category 6 Gel-Filled Direct Burial Outdoor Cable is designed for residential outdoor direct burial LAN applications, making it the best solution for installation runs that require the cable to be buried under ground in conduit. Additionally, this cable has a tinned copper drain wire which grounds the electricity after it has been terminated. This drain wire is required on all shielded cable in order to prevent signal loss, cross-talk, and other performance issues. This cable is tested to perform up to speeds of 600MHz.

To make sure we are supplying our customer with high quality bulk Ethernet cables our cable have to meet and/or exceeds CAT6 TIA 568 C.2 standards. Our CAT6 Shielded Outdoor cable is also manufactured to meet current CAT6 guidelines and is verified by outside standards organizations and is RoHS Compliant.

Features:

  • High-Performance Data Communications Cable
  • Cat6 Outdoor Direct Burial, Outside Plant
  • Suitable For 600MHz High-Speed Data Applications, Gigabit Ethernet, Fast Ethernet And 155Mbps TP-PMD/CDDI
  • Designed For Outdoor Direct Burial Installations (CMX)
  • AL Foil Shielding over Twisted Pairs (F/UTP)
  • 4-Pair Easily Identified Color Striped Pairs
  • 23 AWG Solid Bare Copper Conductors
  • Excellent Attenuation And Crosstalk Characteristics
  • Exceeds TIA 568C.2, ISO/IEC 11801, And YD/T1019 Specifications
  • RoHS Compliant
  • Sequential Length Markings On Jacket

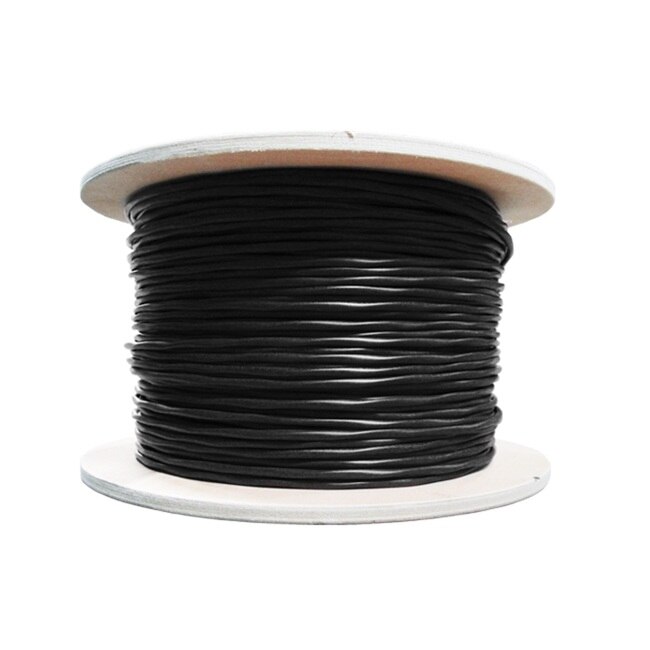

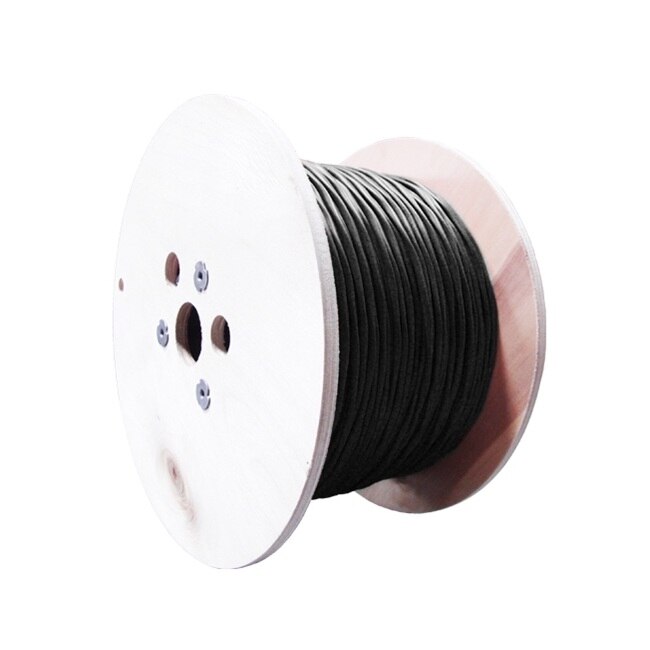

  • Supplied On A 1000' Wooden Spool
