Rohn Non-Penetrating Roof Mount - Mast 2-1/2" O.D., 10’ Height
US$797.56 US$938.30
Product Information
Rohn BRM42510 Non-Penetrating Roof Mount - Mast 2-1/2" O.D., 10’ Height
Mast Dimensions - 2” STD. Pipe (2.38 O.D.) x 10'

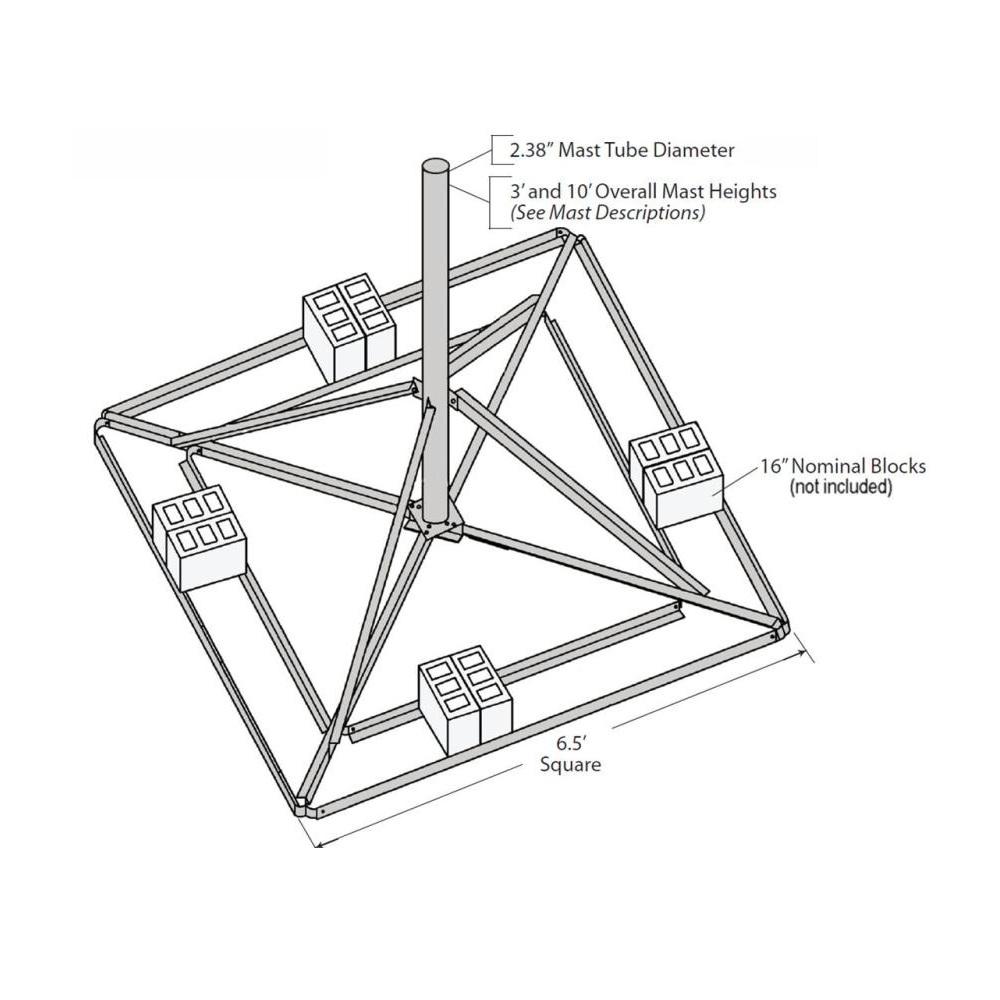

This roof mount is able to support various Antenna EPA's depending on wind and Ballast load (see details). The base of the roof mount is 6' - 6" square with a 16” tray to fit concrete blocks, typically used as ballast. The base mount and mast pipe are Hot dip galvanized for corrosion protection and go together quickly.
Height and Antenna Loading capability are dependant upon ballast weight... You need to Consult an Engineer to determine the Load Bearing Capability of the roof that you are entertaining such an Installation
Specifications
Specifications Rohn BRM42510
| Type | Flat roof mount |
| Mast length | 10' |
| Mast diameter | 2.38" OD |
| Depth | 16" |
| Width | 130" |
| Height | 16" |
| Weight | 150 LB |
