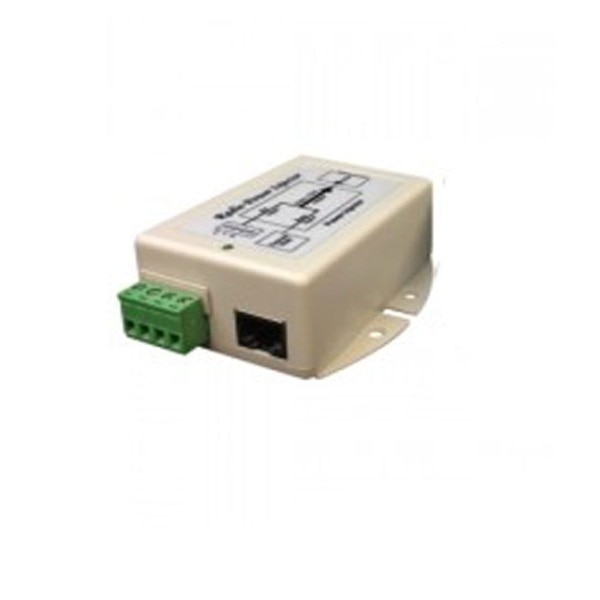

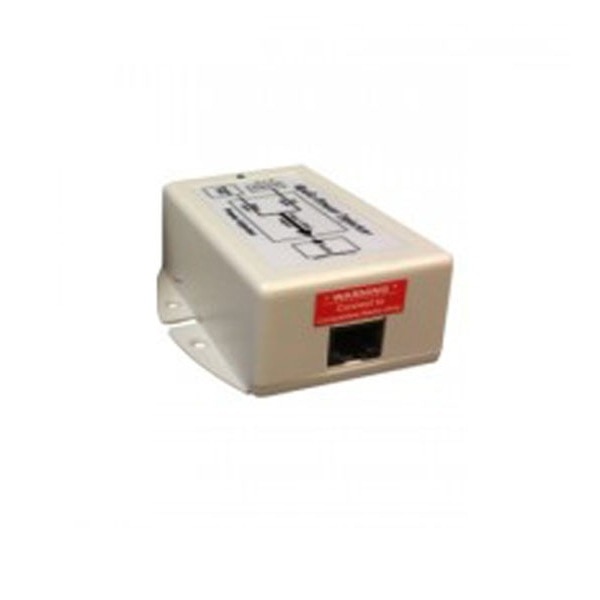

Siklu PoE Injector Unregulated Direct DC up to 2.5A 48VDC

  • SKU: EH-H-PoE-DC-PSU-TB
  • Manufacturer: Siklu
  • Data Sheet: Download
  • Availability: Please Contact us for AvailabilityEmail me when this product is in stock!
US$‎120.00

Specifications EH-H-PoE-DC-PSU-TB

Input Voltage DC 20V to DC 60V
Output Voltage Max. Load to 2.5A V
Protection Short Circuit Protection output Short GND Terminal will damage the FUSE.
RJ45 Output 1.25A on data pairs (1,2/3,6) and 1.25A on spare pairs (4,5/7,8), the fuse is 2A at (3,6) & (7,8)
Input current limit at 2.5A, the FUSE is T3.15A.
Operation Temperature -40 - +60 Degree
Storage Temperature -40 - +85 Degree
Operation Humidity 5% - 90% 45 Degree Cooling: Free air cooling
Size 86*76*36 (L*W*H)m/m

Siklu EH-H-PoE-DC-PSU-TB

PoE Injector Unregulated Direct DC up to 2.5A (48VDC Source, Terminal Block) Extended Temperature (Needs Case)
