Ubiquiti Networks UDM-B

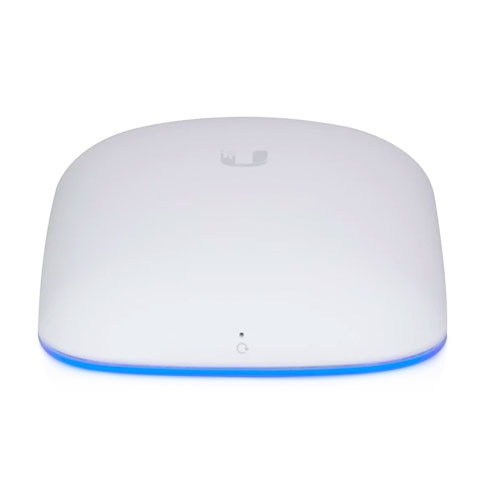

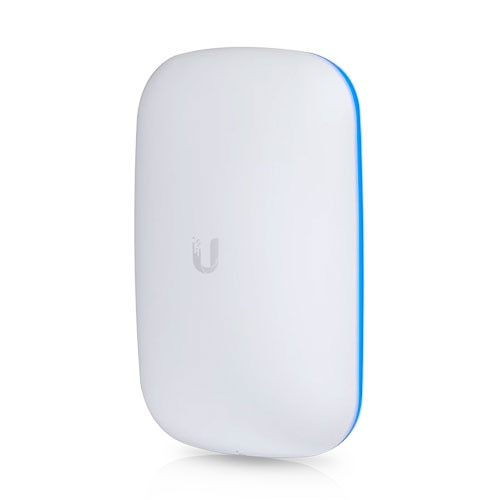

Unifi AP Beacon HD

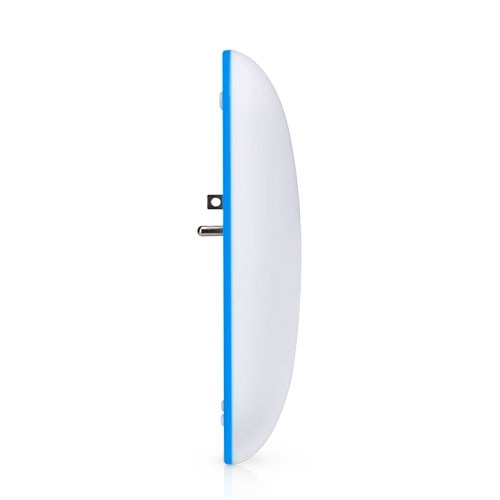

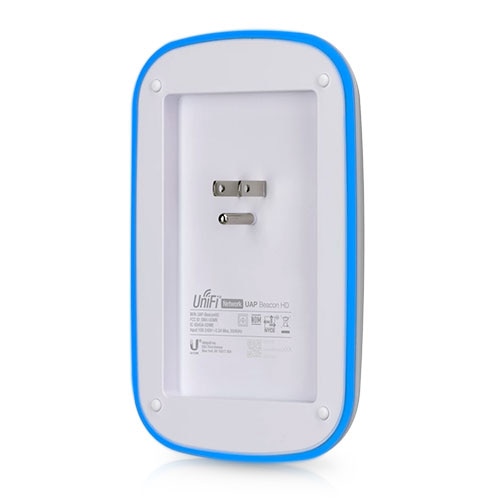

The Ubiquiti UniFi AP Beacon HD is the fastest way to extend Wi-Fi coverage and increase throughput in your home or office. It uses full 4x4 MU-MIMO capabilities to deliver true 300+ Mbps performance over a wireless mesh hop. The UniFi AP Beacon HD works with any nearby UniFi AP or UniFi Dream Machine (UDM) and is automatically discovered for adoption by the UniFi Controller. After adoption, enhanced performance is immediately available. Sleek and stylish, the UniFi AP Beacon HD fits a standard US AC wall outlet to blend into any environment.

High-Capacity Mesh Uplinks

The UniFi AP Beacon HD creates a bi-directional, high-capacity, 4x4 MU-MIMO mesh uplink to a nearby UniFi AP and provides improved radio data rates and faster network connections to nearby Wi-Fi devices.

Compared to a standard Wi-Fi device, the UniFi AP Beacon HD's uplink results in a Wi-Fi coverage range that is more than 4x larger in open space.

Its combination of a powerful uplink and enhanced signal levels for Wi-Fi devices saves airtime and increases channel efficiency.

The UniFi AP Beacon HD is a meshpoint designed for use with any UniFi AP supporting mesh uplinks, including the UDM. We recommend you use a maximum of two UniFi AP Beacon HD devices with one AP, but there is no specific upper limit. The UniFi AP Beacon HD creates another AP on the same channel that behaves like any other Wi-Fi AP, offering a performance boost for devices further away from the main AP.

While coverage-focused deployments may benefit the most from more UniFi AP Beacon HD devices, networks with the greatest capacity requirements may benefit from using additional APs instead of UniFi AP Beacon HD devices.


  • 802.11ac Wave 2, 4x4 MU-MIMO technology
  • 300+ Mbps performance over a wireless mesh hop
  • Works with UniFi AP or Dream Machine
  • Automatically discovered for adoption by UniFi Network Controller


Specifications UDM-B

Dimensions 169.7 x 112.15 x 32.2 mm
(6.68 x 4.42 x 1.27")
Weight 260 g (9.17 oz)
Networking Interface Wi-Fi
Buttons Reset
LED System Status
Processor 880 MHz MIPS 1004KEc
System Memory 128 MB SDRAM
Maximum Power Consumption 11.5W
Power Method AC
Power Supply AC
Supported Voltage Range 100 - 240VAC, 0.3A Max., 50/60 Hz
Power Save Supported
Beamforming Supported
Operating Frequency 2.4 GHz 5 GHz
TX Power* (EIRP) 2.4 GHz 5 GHz 24.8 dBm 30 dBm
Wi-Fi Standards 802.11 a/b/g/n/ac/ac-wave2
Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF
BSSID Up to 8 per Radio
Operating Temperature -10 to 60° C (14 to 140° F)
Operating Humidity 5 to 95% Noncondensing
Certifications FCC, IC
