Ubiquiti Unifi Mobile Router (US Version)

(0)No Reviews yet
  • SKU: UMR-US
$199.00
  • Manufacturer: Ubiquiti Networks
  • Data Sheet: Download
  • Installation Guide: Download

49 In Stock

49 in stock
Texas
49 In stock

Product Information

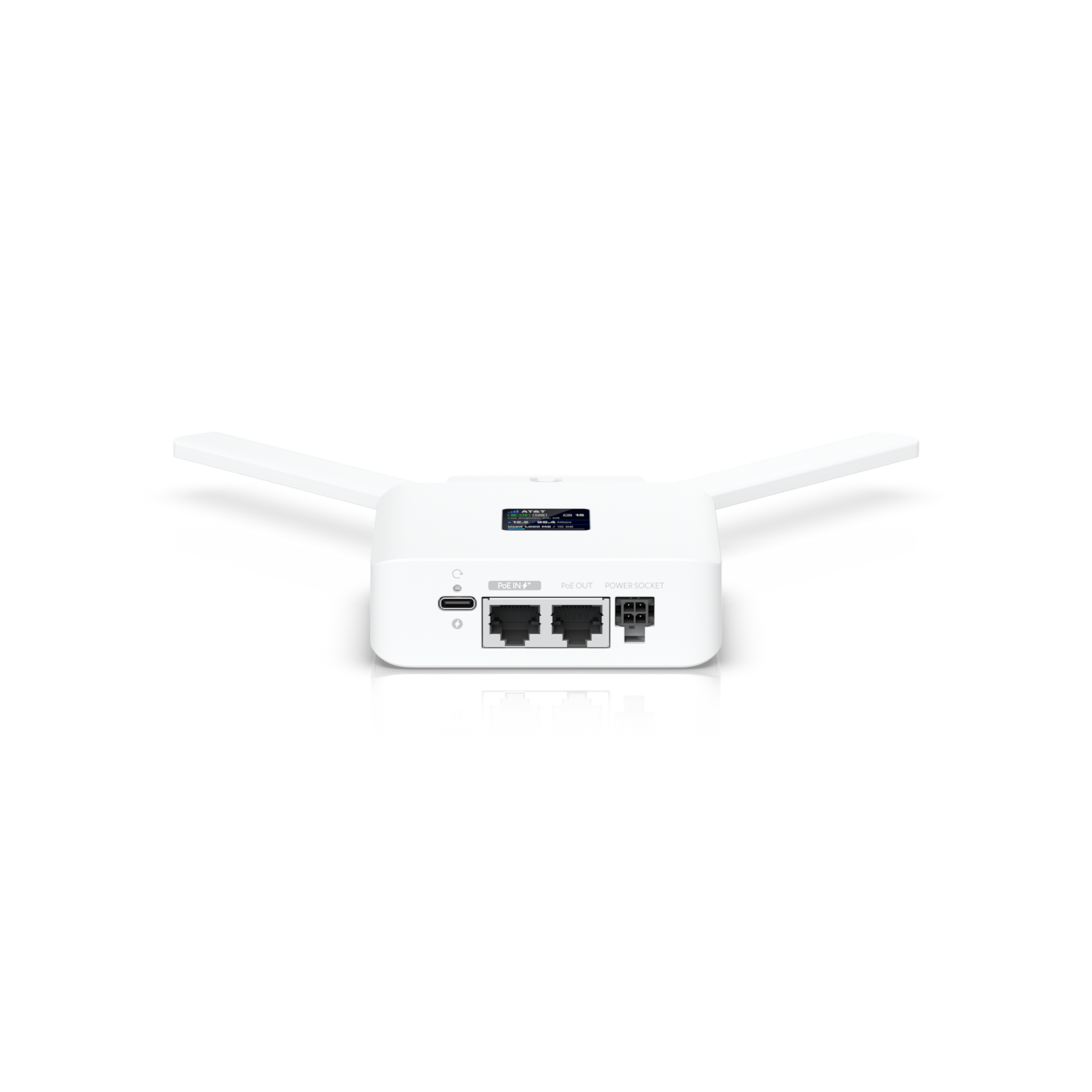

Ubiquiti Networks UMR-US

Unifi Mobile WiFi Router (US Version)

Managed mobile WiFi router that brings plug-and-play connectivity to any environment. Use the pre-installed AT&T nano-SIM with three data plan options for LTE data, or bring your own AT&T nano-SIM.

Features:

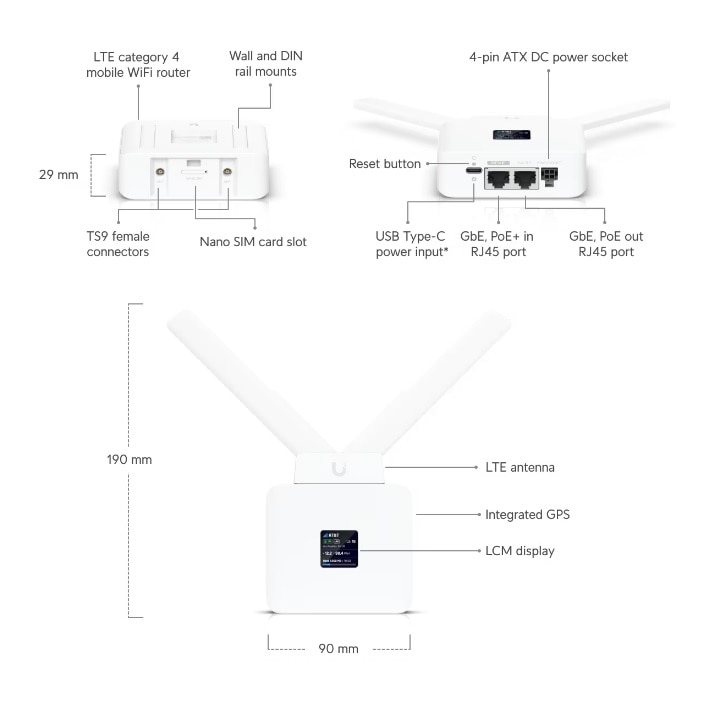

  • LTE category 4 mobile WiFi router
  • Pre-installed AT&T nano-SIM*
  • VPN client routing

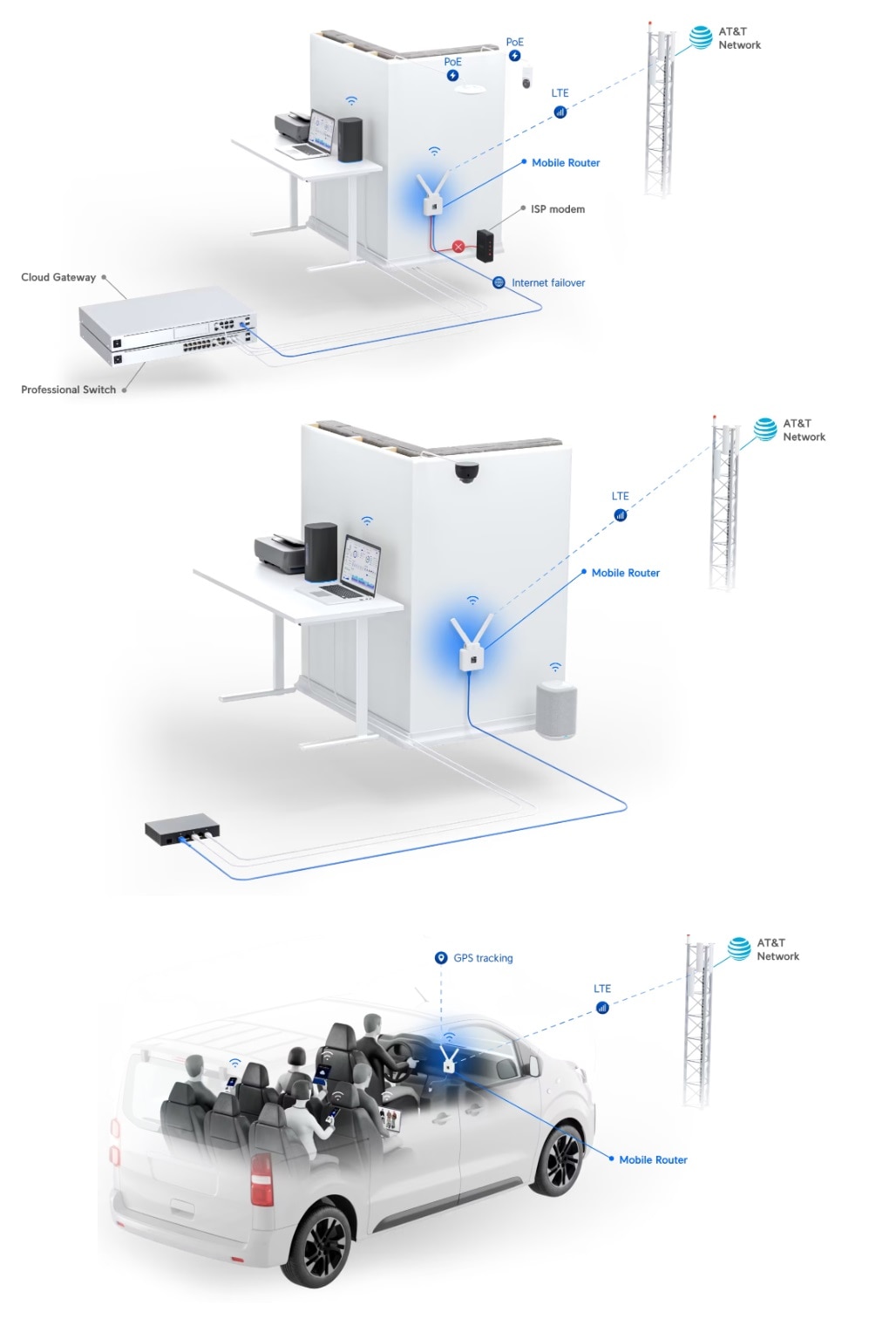

  • Automatic failover between LTE and wired WAN
  • (2) GbE ports with (1) PoE output**
  • Powered using PoE, USB Type-C, or 4-pin DC power socket
  • Integrated GPS
  • Optional Mobility Cloud subscription
UMR-US

Specifications

Specifications UMR-US

Dimensions220.6 x 89.8 x 28.8 mm (8.7 x 3.5 x 1.1")
WeightWithout mount: 257 g (9.1 oz)
With mount: 303 g (10.7 oz)
Enclosure materialPolycarbonate
Mount materialWall mount: polycarbonate
DIN rail mount: steel
Hardware
Processor74 Kc MIPS processor at 775 MHz
Memory128 MB DDR2
Networking interface(2) GbE RJ45 ports
LTE Category 4 radio
WiFi 4
Management interfaceEthernet WiFi
PoE interface(1) PoE input
(1) PoE output* (Max. 10W)
*Requires a PoE+ switch.
SIMPre-installed AT&T data-only nano SIM
LTE bandsB2, B4, B5, B12, B14, B66
OperatorAT&T network
LTE throughput speed*Download 150 Mbps / Upload 50 Mbps
*Speed depends on network coverage and performance at the device location.
WiFi standards802.11 b/g/n, WiFi 2.4G, 20/40 MHz
GPSYes

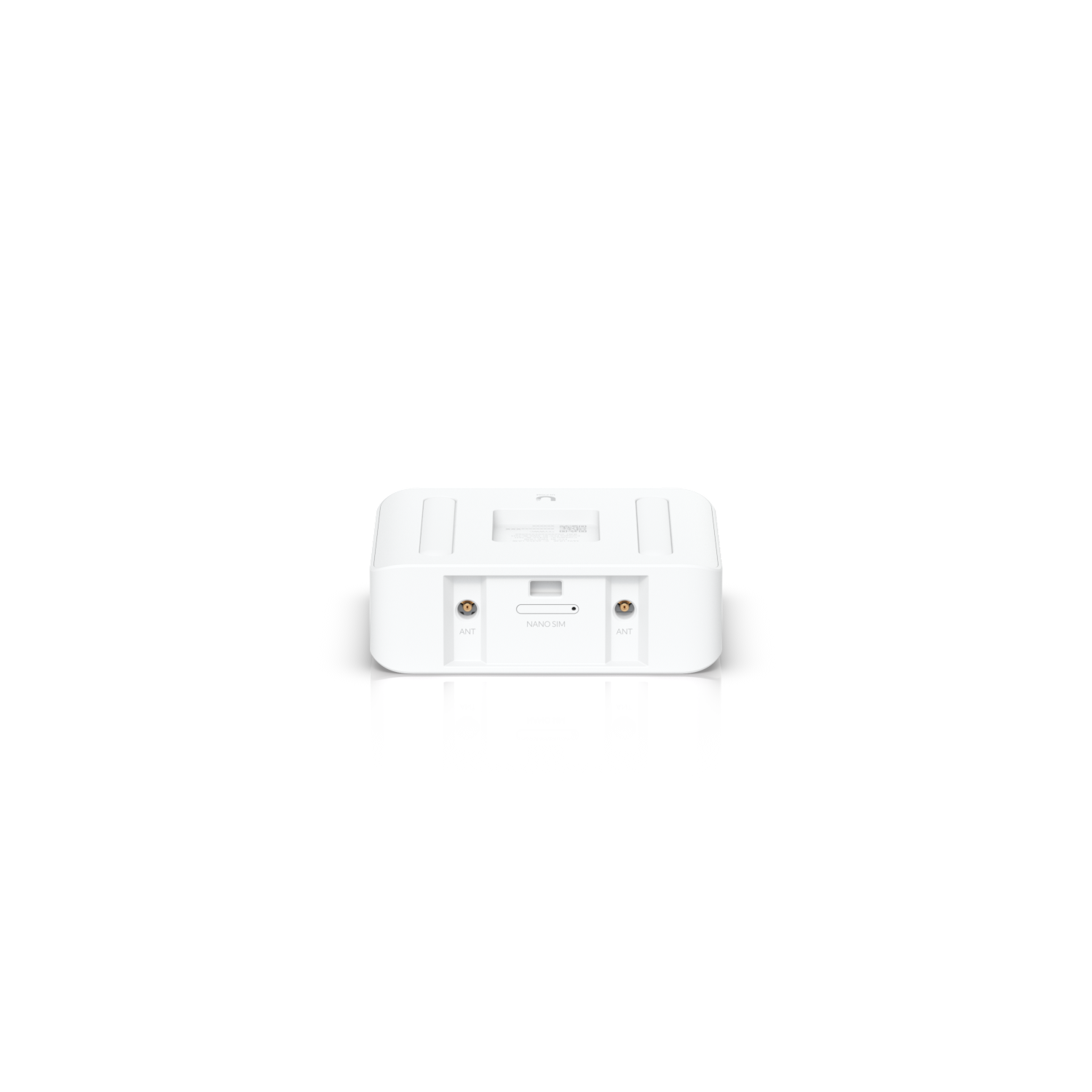

Antennas(1) External LTE antenna (main + aux) with TS9 male connectors
(1) Internal WiFi 2.4 GHz antenna
(1) Internal GPS antenna
Power supplyUniFi PoE switch (48—54V DC, 0.625A)
USB Type-C (5V DC, 3A)
4-pin* ATX DC power socket (9V DC, 1A)
*Please refer to the Installation Guide for power socket pinout.
Max. power consumption9W

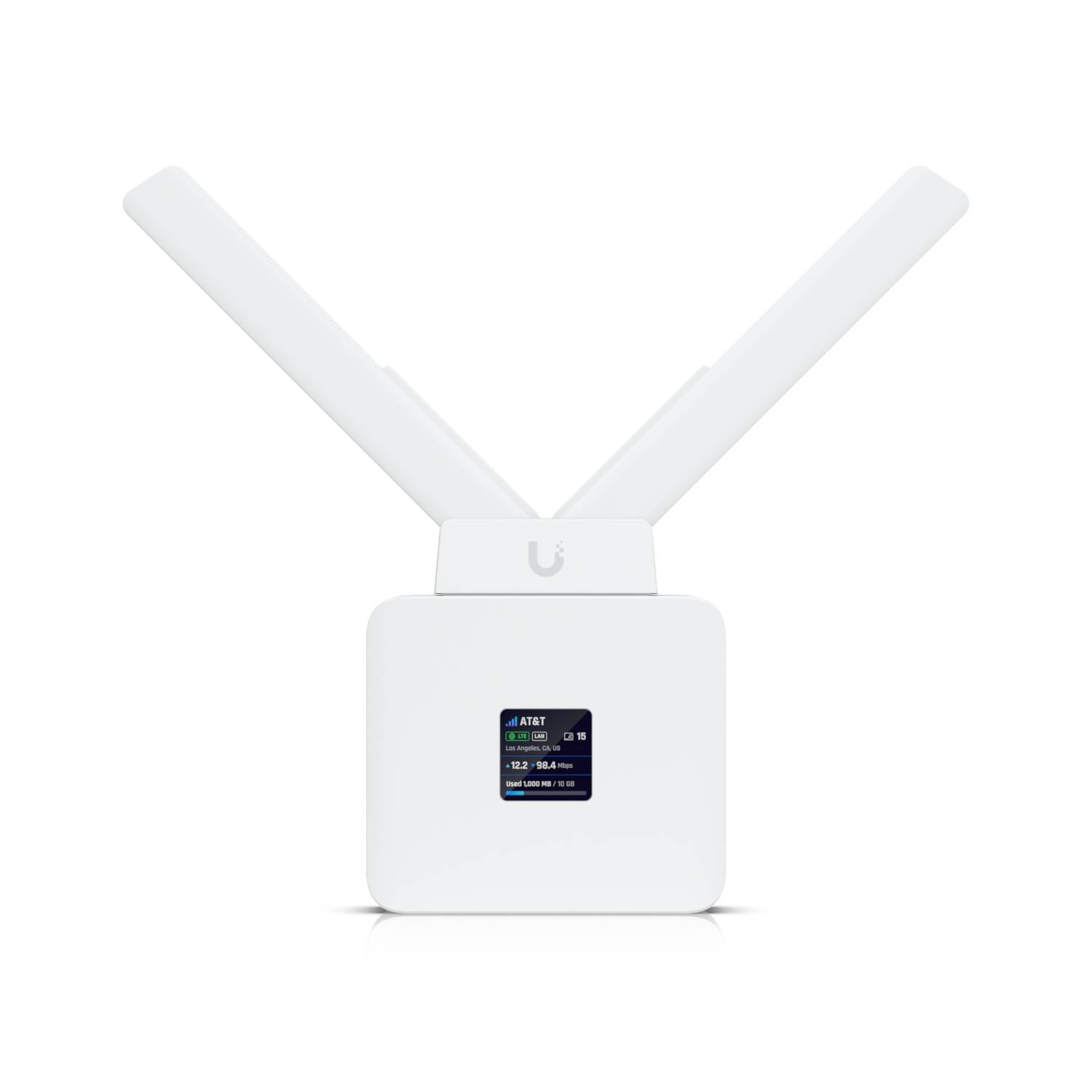

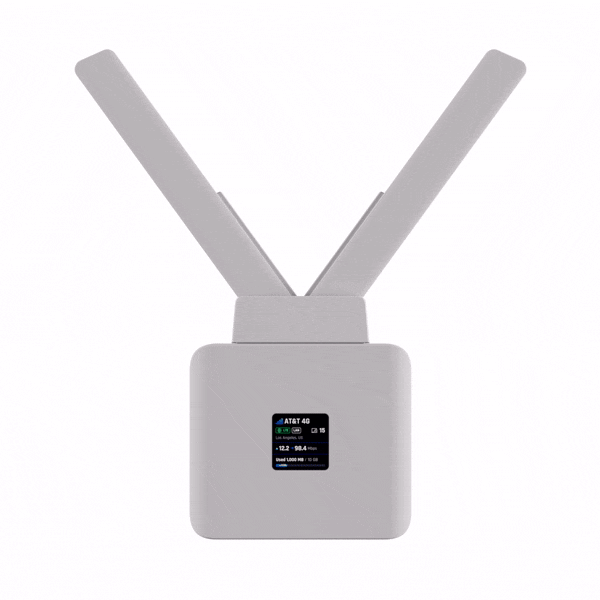

LCM display1.3" screen
ButtonFactory reset

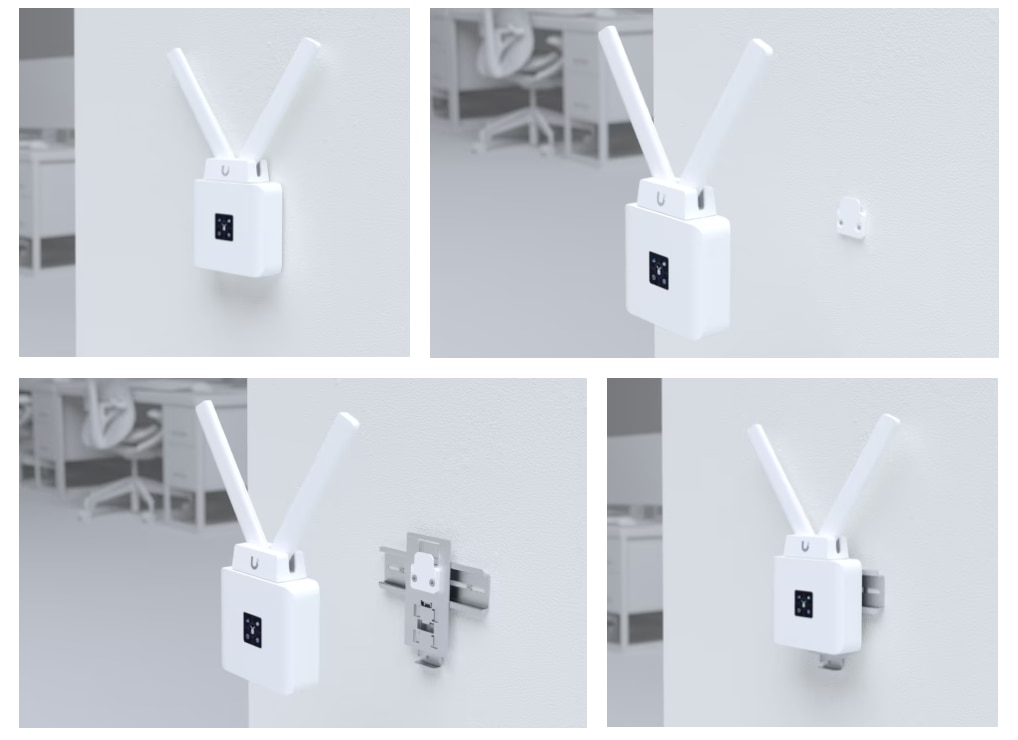

MountingDIN rail/wall (Included)
Ambient operating temperature-20 to 45° C (-4 to 113° F)
Ambient operating humidity5 to 95% noncondensing
CertificationsFCC, IC, PTCRB, AT&T
Supported WiFi Data Rates
802.11b1, 2, 5.5, 11 Mbps
802.11g6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4)6.5 Mbps to 150 Mbps (MCS0 - MCS7, HT 20/40)
