Ubiquiti UniFi Switch PRO 24 Port

  • SKU: USW-Pro-24
  • Manufacturer: Ubiquiti Networks
  • Availability: Call for Availability This item can sometimes be sourced and shipped direct from other locations when out of stock. Email me when this product is in stock!
US$‎449.00

Specifications USW-Pro-24

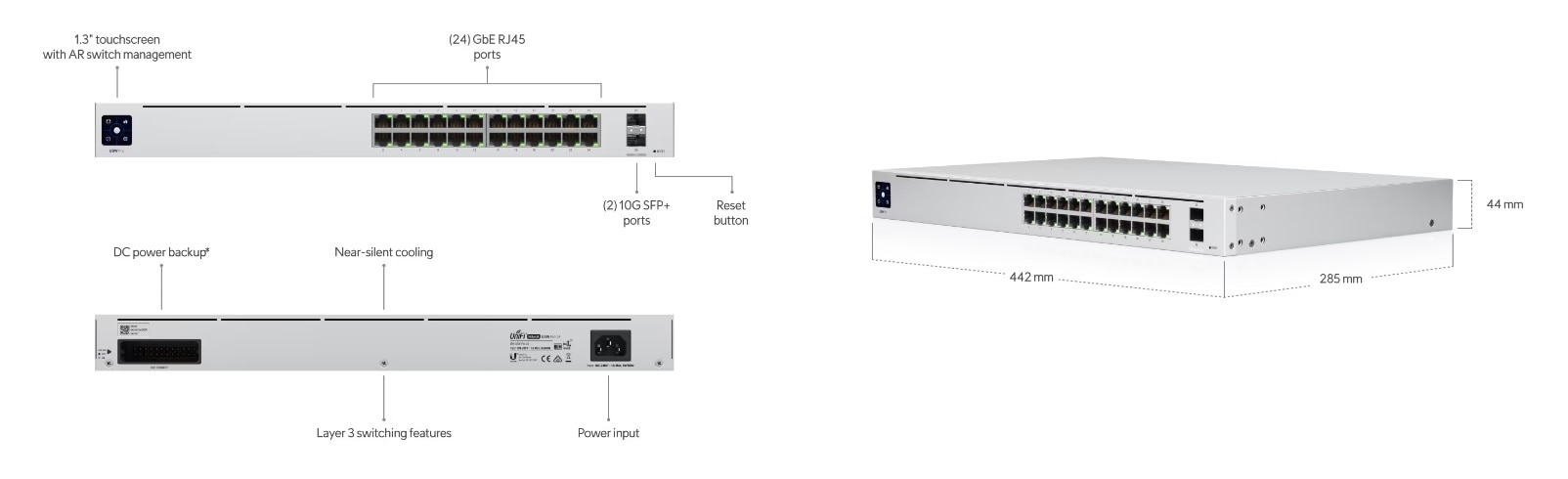

Dimensions442.4 x 285.4 x 43.7 mm (17.42 x 11.24 x 1.72")
Weight3.50 kg (7.72 lb)
With Brackets3.59 kg (7.92 lb)
Interfaces Networking(24) 10/100/1000 RJ45 Ports
(2) 1/10G SFP+ Ethernet Ports
ManagementEthernet In-Band
Total Non-Blocking Throughput44 Gbps
Switching Capacity88 Gbps
Forwarding Rate65.472 Mpps
Power Method
Universal Input
USP RPS DC Input

100-240VAC, 50/60 Hz
11.5VDC, 2.61A
Power SupplyAC/DC, Internal, 36W
Voltage Range100 to 240VAC
Max Power Consumption30W
LEDs
RJ45 Data Ports
SFP+ Data Ports

Speed/Link/Activity
Link/Activity
ESD/EMP ProtectionAir: ± 16 kV, Contact: ± 12 kV
Shock and VibrationETSI300-019-1.4 Standard
Operating Temperature-5 to 45° C (23 to 113° F)
Operating Humidity10 - 90% Noncondensing
CertificationsCE, FCC, IC

Ubiquiti Networks USW-Pro-24

24-port switch with (24) Gigabit RJ45 ports and (2) 10G SFP+ ports. Powerful second-generation UniFi switching

UniFi Switch Pro 24 is a fully managed Layer 3 switch with (24) Gigabit Ethernet ports. (2) 10G SFP+ uplinks offer link aggregation for higher capacity and increased availability. The UniFi Switch Pro 24 features a rich set of Layer 2 capabilities and integrates Layer 3 functionality such as inter-VLAN routing, static routing, and DHCP server. The UniFi Switch Pro 24 is an ideal aggregation and access layer switch for any UniFi solution – it combines innovative near-silent cooling with UniFi SmartPower RPS power redundancy. UniFi Network Controller and UniFi Network mobile app allow admins to configure and monitor virtually all of the switch features in an intuitive graphical user interface from anywhere.


Features:

  • (24) Gigabit RJ45 ports
  • (2) 10G SFP+ ports
  • Layer 2 and Layer 3 features
  • UniFi SmartPower RPS DC input
  • Near-silent cooling
  • 1.3" touchscreen display
  • Managed by UniFi Network Controller
  • Managed by UniFi Network Controller version: 5.12.11 or higher

Works with UniFi Network Controller

  • Manage Your Networks from a Single Control Plane
  • Intuitive and Robust Configuration, Control and Monitoring
  • Remote Firmware Upgrade
  • Users and Guests
  • Guest Portal/Hotspot Support
