Ubiquiti UniFi Next-Generation Gateway Pro AC/DC, Internal, 50W, 2GB DDR4
Product Information
Ubiquiti Networks UXG-Pro
UniFi Next-Generation Gateway Pro AC/DC, Internal, 50W, 2GB DDR4
Dual-WAN security gateway designed to protect medium to large-sized networks with enterprise-class firewall configuration and threat management features.
The UniFi Next-Generation Gateway Pro (UXG Pro) is a powerful security gateway that delivers a versatile networking interface and enterprise-class threat management functionality to medium to large-sized networks. The UXG Pro is equipped with (2) WAN ports (GbE RJ45 and 10G SFP+) that provide failover support, as well as (2) LAN ports (GbE RJ45 and 10G SFP+) to provide the high-speed connectivity needed to support the most bandwidth-intensive applications. It also excels as a complete network security solution, offering a full suite of threat mitigation features, including deep packet inspection (DPI), intrusion detection and prevention systems (IDS/IPS), and layered firewall configuration. The UXG Pro can be paired with a Cloud Key Plus to create a highly powerful and secure deployment that can be fully managed with the UniFi Network application (web/mobile).
Features:
- 1.7 GHz quad-core processor
- (2) WAN ports (GbE RJ45 and 10G SFP+) with failover support
- (2) LAN ports (GbE RJ45 and 10G SFP+)
- Enterprise-class DPI, IPS/IDS, and layered firewall configuration
- Power redundancy when connected to the USP RPS or USP RPS Pro (sold separately)
- SmartPower outlet (125VAC/2A) for an external modem

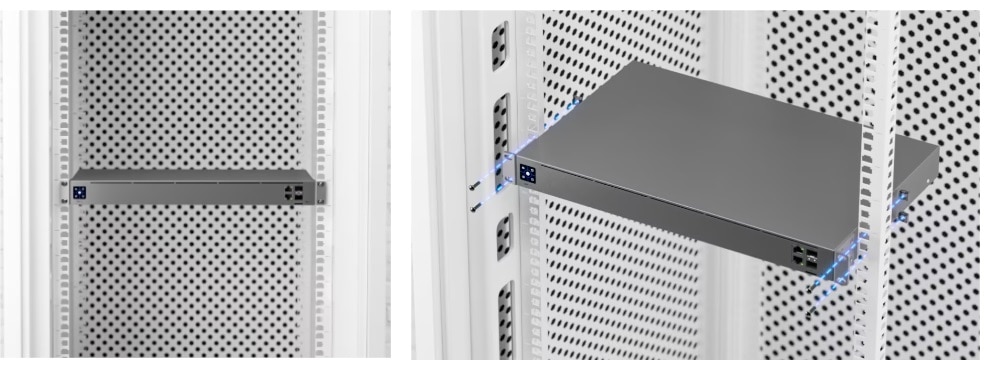

- 1U-sized, rack-mountable device
Specifications
Specifications UXG-Pro
| Mechanical | |

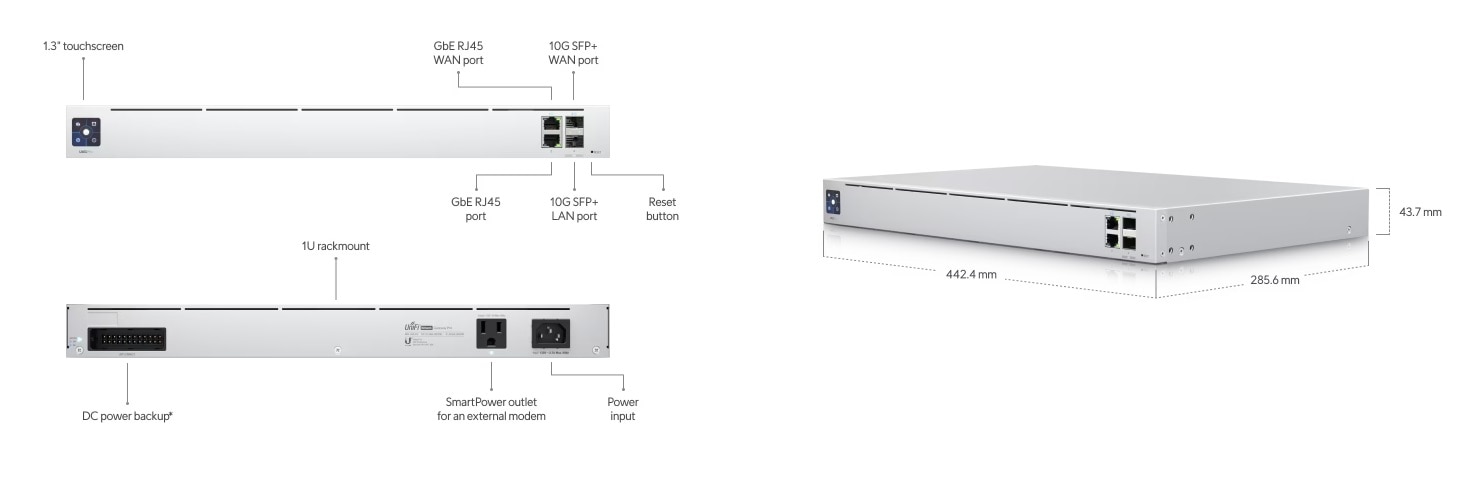

| Dimensions | 442.4 x 43.7 x 285.6 mm (17.42 x 1.72 x 11.24") |
| Weight | 3.42 kg (7.54 lb) |
| Enclosure materials | Front panel: aluminum CNC Top cover/base: SGCC steel |
| Hardware | |
| Processor | Quad-core ARM® Cortex®-A57 at 1.7 GHz |
| Memory information | 2 GB DDR4 |
| Management interface | Ethernet |
| Networking interface | LAN: (1) 1 GbE RJ45 port (1) 10G SFP+ port WAN: (1) 1 GbE RJ45 port (1) 10G SFP+ port |
| LCM display | (1) 1.3" touchscreen Bootup animation: bootup in progress Firmware upgrade icon: firmware upgrading |
| Button | Factory reset |
| Power method | |
| US | (1) Universal AC input, 125VAC, 2.7A max., 60 Hz (1) RPS DC input, 11.5VDC, 2.87A |
| Worldwide | (1) Universal AC input, 200-240VAC, 1.7A max., 50/60 Hz (1) RPS DC input, 11.5VDC, 2.87A |
| Power supply | AC/DC, internal, 50W |
| Max. power consumption | 30W |
| ESD/EMP protection | Air: ± 15 kV, contact: ± 8 kV |
| Operating temperature | -10 to 40° C (14 to 104° F) |
| Operating humidity | 5 - 95% noncondensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| AC outlet/ RPS | Blue |
| Ethernet | Green/amber |
| SFP+ | White/green |
