Ubiquiti Beam Forming BaseStation 1500 Client US
- SKU: UWB-XG-US
Product Information
Ubiquiti Networks UWB-XG-US
Ubiquiti Beam Forming BaseStation 1500 Client US
The UniFi WiFi BaseStation XG delivers unprecedented wireless awareness and security, including tools for real-time spectrum monitoring, airtime utilization analytics, and intrusion detection/prevention.
Using a persistent spectral scan, the UniFi WiFi BaseStation XG constantly monitors the RF environment to check for both potential malicious activity and the best channel for network performance. The dedicated security radio allows the UniFi WiFi BaseStation XG to scan for security threats, such as malicious frames and rogue access points, while maintaining throughput for client devices. At the same time, UniFi, in conjunction with the UniFi WiFi BaseStation XG, analyzes and displays the wireless spectrum and airtime utilization to allow the network admin to have unprecedented real-time visibility into the spectral and protocol usage in the network.
Specifications
Specifications UWB-XG-US

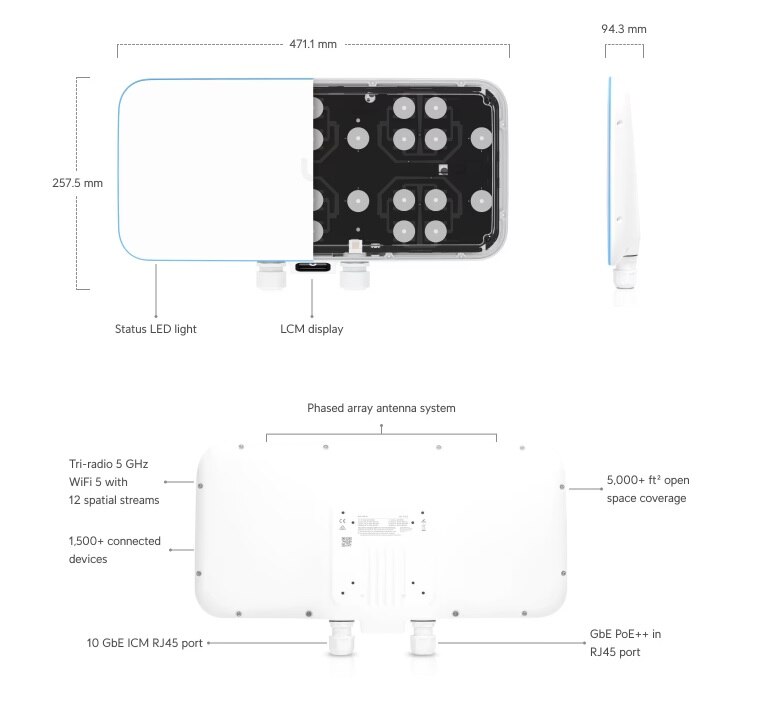

| Dimensions (Without Mount) | 471.1 x 257.5 x 94.3 mm (18.55 x 10.14 x 3.713") |
| Weight (Without Mount) | 3.2 kg (7.055 lb) |
| Networking Interface | (1) 10/100/1000 RJ45 Ethernet Port (1) 1/10 Gbps ICM Ethernet Port |
| Button | Reset |
| LED | RGB, Software-Controllable |
| Power Method | 802.3bt PoE |
| Power Supply | 50VDC, 1.2A Gigabit PoE |
| Max. Power Consumption | 31W |
| Supported Voltage Range | 44-57VDC |
| Max. TX Power | 25 dBm |
| MIMO | (3) 4 x 4 |
| Operating Frequency | 5 GHz |
| Antenna | Integrated Dual-Mode Antenna Array |
| Antenna Gain Small Cell Large Cell | 15 dBi 10 dBi |
| Antenna Beamwidth Small Cell Large Cell | 50° 90° |
| Wi-Fi Standards | 802.11 a/n/ac/ac-wave2 |
| Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF |

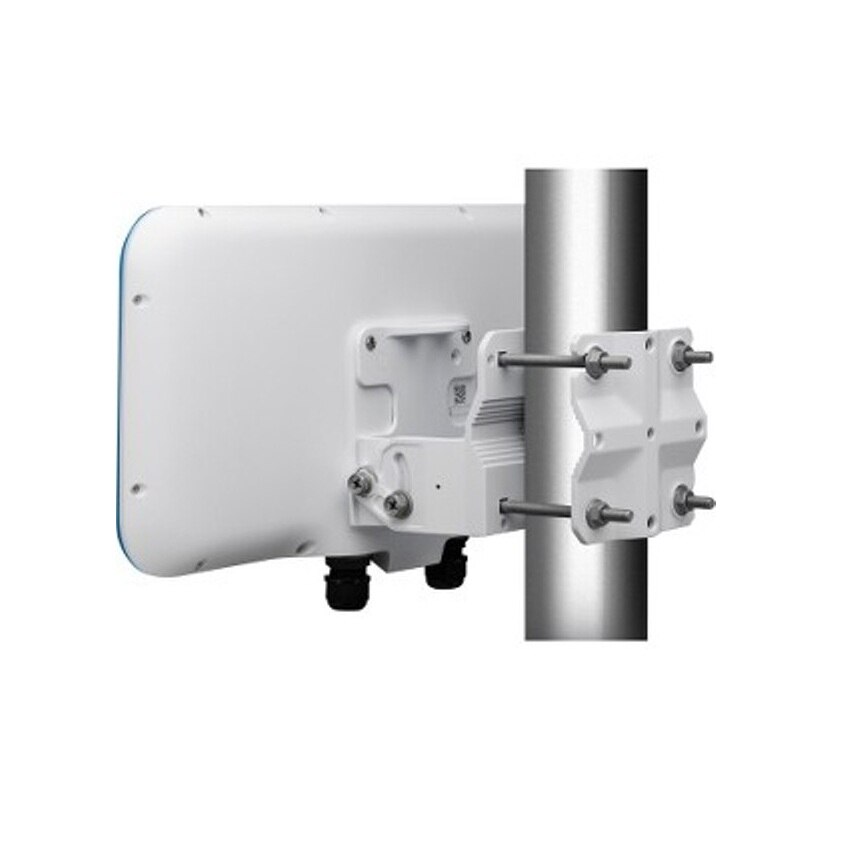

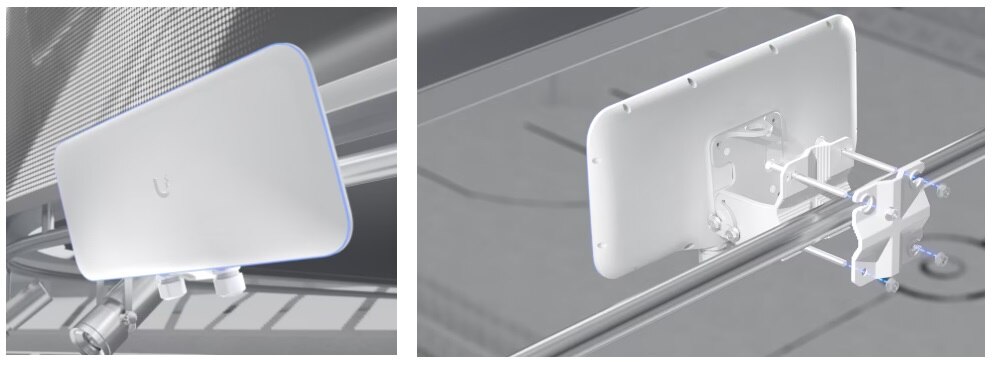

| Mounting | VESA-Compatible Mount, Pole/Wall (Brackets Included) |
| Operating Temperature | -10 to 70° C (14 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Dust and Water Resistance | IP67 |
| Certifications | CE, FCC, IC |
| Advanced Traffic Management | |
| VLAN | 802.1Q |
| Advanced QoS | Per-User Rate Limiting |
| Guest Traffic Isolation | Supported |
| WMM | Voice, Video, Best Effort, and Background |
| Concurrent Clients | 1500 |
| Supported Data Rates (Mbps) | |
| Standard | Data Rates |
| 802.11ac | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80) |
| 802.11n | 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40) |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
