MikroTik NetBox 5 ax 5 GHz Dual-Core IPQ-5010 800 MHz, 256 MB RAM RouterOS v7, License level 4 (US Version)
- SKU: L11UG-5HaxD-NB-US
- Manufacturer: MikroTik
- Data Sheet: Download
Product Information
MikroTik RouterBOARD L11UG-5HaxD-NB-US
NetBox 5 ax 5 GHz Dual-Core IPQ-5010 800 MHz, 256 MB RAM RouterOS v7, License level 4 (US Version)

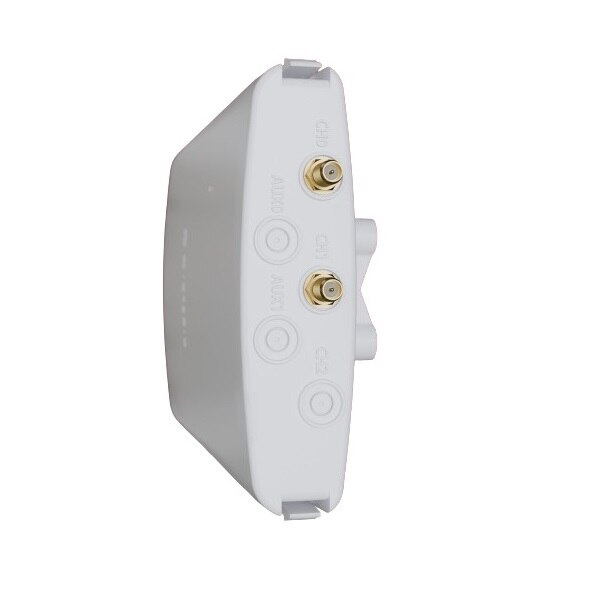

NetBox 5 ax is a powerful dual-chain outdoor device that can fill multiple roles in your setups: AP/CPE/Point-to-point. The strong 5 GHz Wi-Fi 6 radio comes with handy SMA connectors. That means you can add a HGO-antenna-OUT and you’ve got yourself an excellent omnidirectional AP… or try the mANT30 PA antenna to create a powerful long-range point-to-point link!
This weatherproof board features a modern Qualcomm Maple CPU based on the ARM architecture, 256 MB of RAM, a USB port for extra storage or other needs, and a Gigabit Ethernet port with PoE-in.

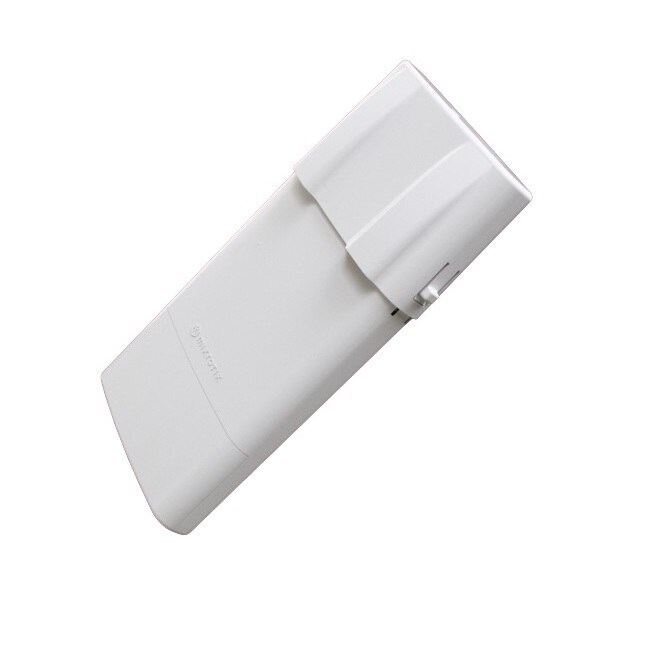

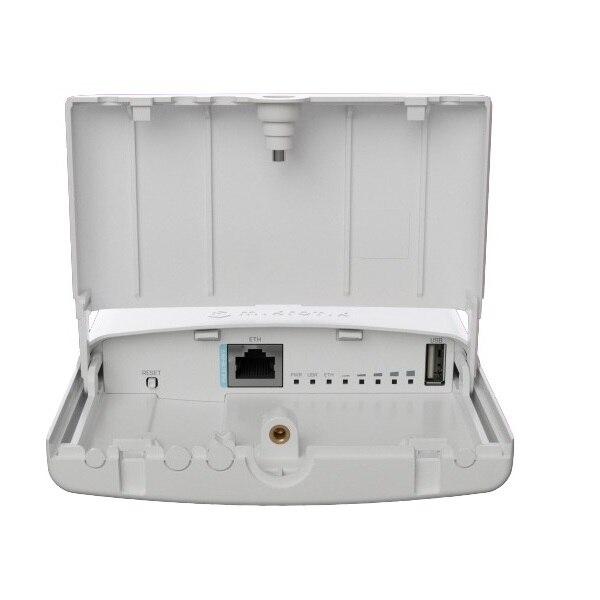

We’ve designed the case to make a sysadmins life easier. You can open the case effortlessly with just one hand. At the bottom, concealed behind a protective door, you’ll find exits for Ethernet. Equipped with a mounting loop for easy tower/pole installation, it also offers a separate DIN rail mount. If you’ve read this far, here’s a little bonus feature: we’ve kept the good old beeper for various alarms or creative outputs.
Specifications
Specifications
| CPU | Dual-Core IPQ-5010 800 MHz |
| CPU architecture | ARM |
| Size of RAM | 256 MB |
| Storage | 128 MB, NAND |
| Number of 1G Ethernet ports | 1 |
| USB port | 1 USB 2.0 port typeA |
| Wireless band | 5 GHz |
| Wireless interface model | QCN-6102 |
| Wireless | 802.11a/n/ac/ax dual chain |
| Connector type | RP-SMA female (outside thread) |
| Extras | Beeper, signal and status LEDs, voltage and temperature sensors |
| Dimensions | 245 x 121 x 50 mm 9.64 x 4.76 x 1.96 inch |
| Operating system | RouterOS v7, License level 4 |
| Operating temperature | -40°C to +70°C |
| Powering | |
| PoE-In Passive | PoE |
| PoE-in input Voltage | 18-28 V |
| Max USB current | 1.5 A |
| Power adapter nominal voltage | 24 V |
| Power adapter nominal current | 1.2 A |
| Max power consumption (without attachments) | 6 W |
| Max power consumption | 15 W |
