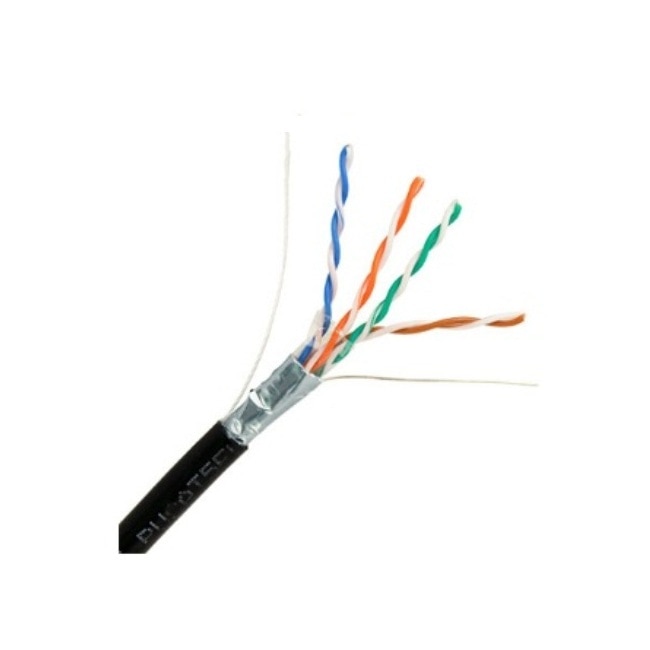

Perfect Vision Wire, Cat5e Cable, Outdoor, FUTP, Black, 1000ft RIB
- SKU: PVCAT5FUTPO-BLK-RIB
US$168.75 US$199.86
- Manufacturer: Perfect Vision
- Data Sheet: Download
Product Information
Perfect Vision PVCAT5FUTPRNDOBLK
Wire, Category 5e Cable, Outdoor, FUTP, Black, 1000 FT RIB
Dimensions:
- 9.10 in. wide x 13.80 in. high x 13.00 in. deep
- Volume: 1,632.54 cubic in.
- Weight: 30.00 lbs.
Specifications
Specifications PVCAT5FUTPRNDOBLK
| ELECTRICAL | |
| Impedance @1-100 MHz | 100 ± 15 Ohms |
| Nominal Mutual Capacitance @1KHz | 15 pf/foot |
| Maximum Capacitance Unbalance | 330 pf/100 m |
| Nominal Velocity of Propagation | 70% |
| Maximum Delay (ns/100m) @100MHz | 538 ns |
| Maximum Delay Skew | ≤45 ns/100 m |
| Maximum DCR Unbalance @20°C | ≤5% |
| Maximum Conductor DC Resistance @20°C Certified to 100 MHz, swept to 350 MHz | 9.38 Ohms/100 m |
| CONSTRUCTION | |
| Number of Pairs | 4 |
| Total Number of Conductors | 8 |
| AWG | 24 (0.5 mm) |
| Conductor Stranding | Solid |
| Conductor Material | Bare Copper |
| Insulation Material | HDPE |
| Tape Wrap | PE 100% Coverage |
| Shield | Aluminum Polyethylene Tape |
| ESD Drain Wire | 26 AWG (0.4mm), Tinned Copper |
| Outer Jacket O.D. | 0.236 in. (6.0mm) |
| Outer Jacket Material | Black, UV Resistant LDPE |
| Outer Jacket Ripcord | Yes |
| Shipping Weight | 28 lbs/1,000 ft (42 kg/km) |
| Max. Recommended Pulling Tension | 35 lbs (16 kg) |
| Min. Bend Radius (Install) | 1.0 in. (2.5 cm) |
| Operating Temperature Range | -40°C to +75°C |
| Sequential Marking | 0-1,000 ft (0-305 m) |
| Reference Standard | ISO/IEC 11801, TIA/EIA-568-C.2 |
