Ubiquiti LightBeam 5 GHz, 23 dBi airMAX® CPE with InnerFeed™ Technology
- SKU: LBE-M5-23-US
Product Information

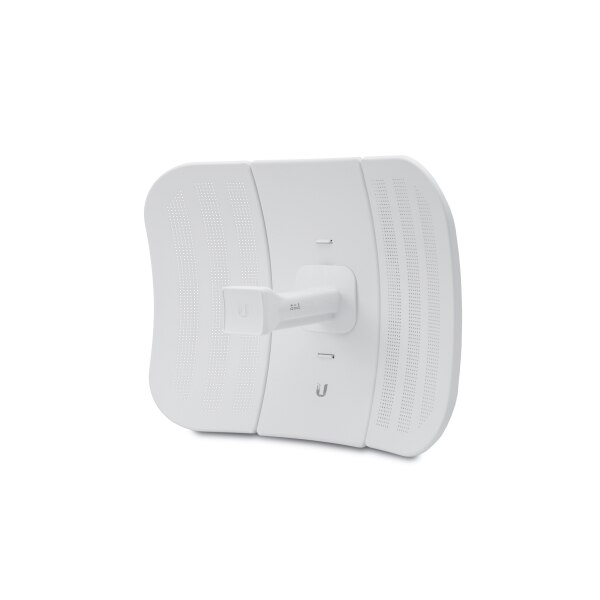

Ubiquiti Networks LBE-M5-23 (US Version)
LiteBeam M5 23 dBi 5GHz CPE
5 GHz, 23 dBi airMAX® CPE with InnerFeed™ Technology

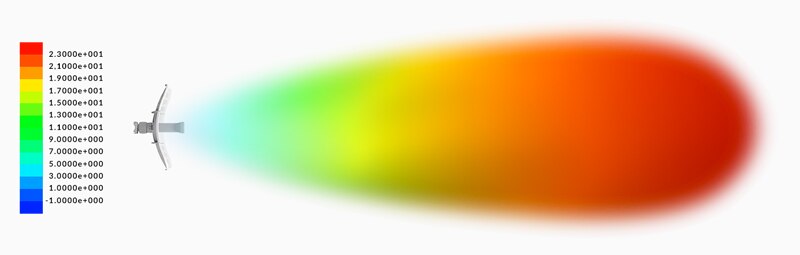

High-Gain, Directional Antenna
The LiteBeamM provides 23 dBi of gain for long-distance connectivity and uses a directional antenna pattern for improved noise immunity.
Breakthrough Industrial Design
Featuring the freedom of three-axis alignment, the LiteBeamM fully assembles in seconds – no tools needed. Only a single wrench is required for pole-mounting.
Compact in Size, Light in Weight
A lightweight form factor contained within ultra-compact packaging, the LiteBeamM is ideal for shipping and logistics.
Specifications
Specifications LBE-M5-23-US

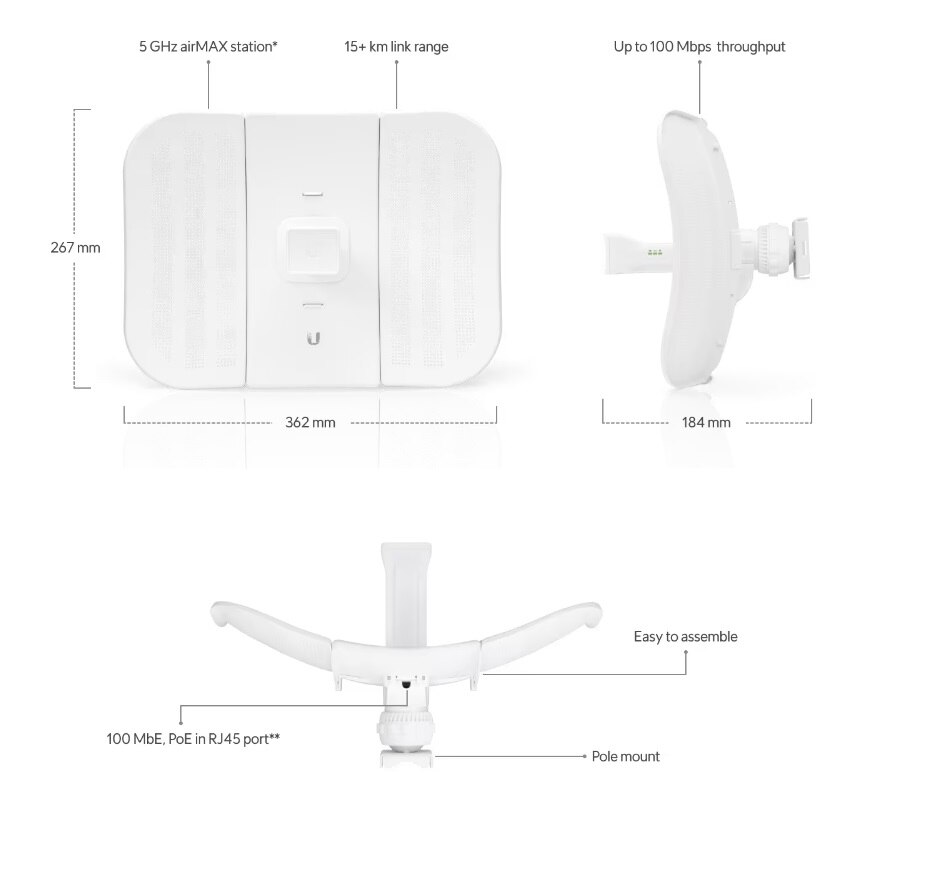

| Weight | 362 x 267 x 184 mm (14.25 x 10.51 x 7.24") |
| Dimensions | 750 g (24.11 oz) |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 176.86 N @ 200 km/h (39.76 lbf @ 125 mph) |
| Enclosure Characteristics | Outdoor UV Stabilized Plastic |
| Mounting Kit | Pole Mounting Kit (Included) |
| Max. Power Consumption | 4W |
| Power Supply | 24V, 0.2A PoE Adapter (Included) |
| Power Method | Passive Power over Ethernet (Pairs 4, 5+; 7, 8 Return) |
| Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Shock and Vibration | ETSI300-019-1.4 |
| ETSI Specification | EN 302 326 DN2 |
| Processor Specs | MIPS 74K |
| Memory | 64 MB |
| Networking Interface | (1) 10/100 Ethernet Port |
| Wireless Approvals | FCC, IC, CE |
| RoHS Compliance | Yes |
Antenna Specs
| Operating Frequency | Worldwide: 5150 - 5875 MHz USA: 5725 - 5850 MHz |
| Output Power | 25dBm |
| Gain | 23dBi |
| Max VSWR. | 1.5:1 |
