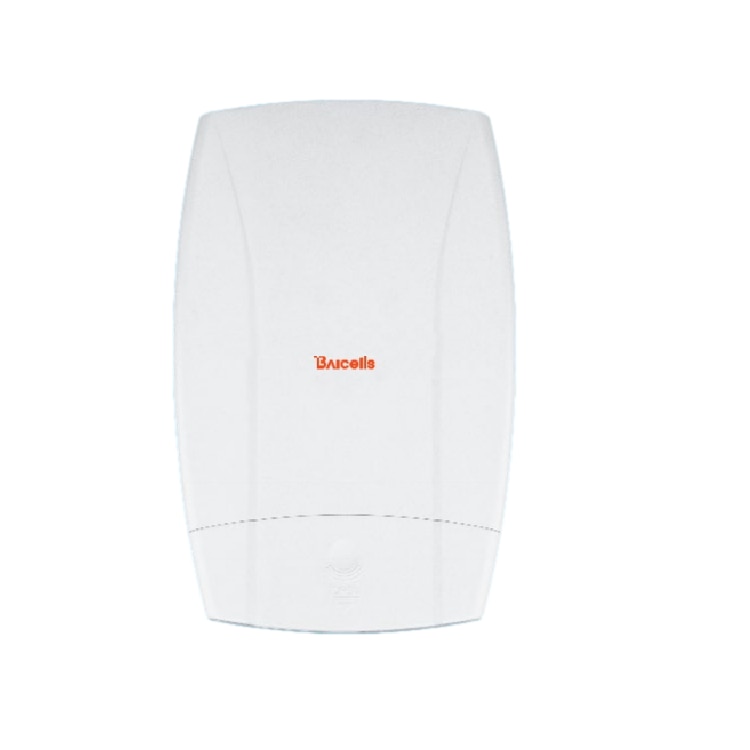

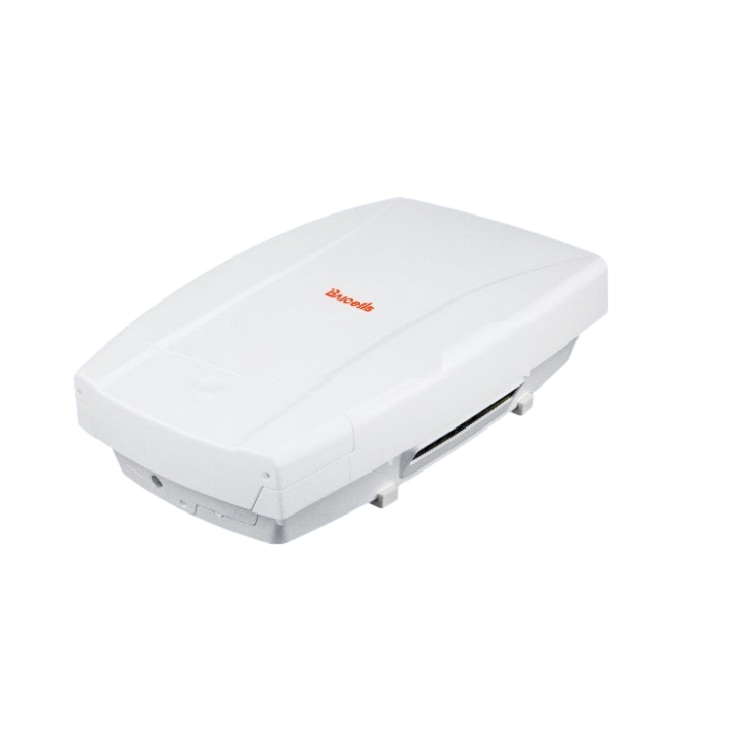

Baicells Atom OD06-LX Outdoor LTE CPE CAT6/7, 2T2R, PoE, 14 dBi Integrated Antenna
US$130.00
Tariff/Surcharge Fee: US$8.03
- SKU: EG8013L-M11
- Manufacturer: Baicells
- Data Sheet: Download
Product Information
Baicells EG8013L-M11
Atom OD06-LX 3.5GHz Outdoor LTE CPE, CAT6/7, 2T2R, PoE, 14 dBi Integrated Antenna, Bands 42/43/48, 1xGE
The Baicells Atom OD06-LX Outdoor Customer Premise Equipment (CPE) provides superior performance and excellent routing capabilities, which will bring broadband data and voice services to end-users.
Wireless and wired devices, including mobile phones, laptops, tablets, and other smart devices, can access the CPE simultaneously.
This product comes with a standard product warranty; an extended warranty is available.
Features:
- Supports LTE TDD Bands 42/43/48
- Complies with 3GPP Release 10 Cat6/7 standards
- 1000 Mbps Ethernet interface
- Built-in bipolar directional LTE antenna
- GUI-based local and remote Web management
- TR-069 network management protocol support
- Cell lock, SIM lock, and pin lock
- User-friendly LED status indicators
- Pole or wall mounted
- Wi-Fi assisted alignment
Specifications
Specifications
| BASIC | |
| LTE Standard | 3GPP Release 10 Cat6/7 |
| ETH LAN Port | 1 RJ-45 port 10/100/1000 autosensing, auto-MDX, PoE |
| LED Indicators | MIU, LTE, SIM, LAN, PWR, LTE Signal |
| USIM | 1.8 V/3 V 2FF |
| Restore Button | Press for 10 seconds to restore the CPE to its factory settings |
| Power Supply | Input: Universal range 100 V-240 VAC Output: PoE (24 VDC) |
| Dimensions (HxWxD) | 9.5 x 6.1 x 2.0 inches 241 x 154 x 50 millimeters |
| Weight | 2 lbs/900 g |
| RF SPEC | |
| LTE Mode | TDD |
| Channel Bandwidth | 5/10/15/20 MHz |
| Carrier Aggregation | 2CC CA |
| Max Output Power | 23 ± 2 dBm per Tx antenna |
| TxRx | 2T2R |
| Frequency Bands | 42/43/48 |
| Peak Rate (20 MHz) | DL 220 Mbps, UL 30 Mbps (2:7) |
| Modulation | DL: QPSK, 16 QAM, 64 QAM, UL: QPSK, 16 QAM, 64 QAM |
| Receive Sensitivity | -94 dBm @ QPSK, 20 MHz, 25°C |
| Antenna Type | Internal directional, 2T2R |
| Antenna Gain | 14 dBi @ 3.x GHz, 2 ports |
| Polarization | ± 45° |
| Antenna Efficiency | > 70% |
| Isolation | ≤-25 dB |
| VSWR | ≤ 2 |
| Horizontal Beamwidth | (3 dB) 60 ± 3° |
| Vertical Beamwidth | (3 dB) 25 ± 5° |
| SOFTWARE | |
| Network Mode | NAT or Bridge |
| IP Protocol | IPv4/IPv6 |
| SIM | PIN management, SIM lock |
| Network Connection | Auto or manual |
| LTE Scan Mode | Full band scan or frequency lock |
| VPN | L2TP L2/L3, GRE L2/L3, PPTP |
| NAT | Port forwarding, port trigger, DMZ,ALG |
| Firewall | IP/MAC/URL filter; access control; block port scanner/SYN flood; SPI filter |
| Network Mgmt. | TR-069, SNMP* |
| Diagnostics | TCP dump, ping, traceroute |
| Statistics | LTE status; connection/system up time; device status; DHCP client list; Wi-Fi station list; firewall status |
| Maintenance | Date and time setting; reboot; restore factory settings; restore or back up configuration file; firmware upgrade locally or OTA |
| System Logs | Operating; run-time; filter/select/display/export |
| Wi-Fi ALIGNMENT | |
| Standard | IEEE 802.11b/g/n |
| Channel Bandwidth | 20/40 MHz |
| Frequency | 2.4 GHz |
| MIMO | 1x1 |
| Peak Rate | 802.11b: 11 Mbps, 802.11g: 54 Mbps, 802.11n: 150 Mbps |
| Modulation | DSSS/CCK, OFDM |
| Receive Sensitivity | -64 dBm @ 65 Mbps, typical for 802.11n, -65 dBm @ 54 Mbps, typical for 802.11g, -76 dBm @ 11 Mbps, typical for 802.11b |
| Max Output Power | 10 ± 3 dBm |
| Antenna Type | Internal omni, 1T1R |
| Antenna Gain | 0 dBi |
| ENVIRONMENTAL | |
| Operating Temperature | -40°F to 131°F / -40°C to 55°C |
| Storage Temperature | -40°F to 158°F / -40°C to 70°C |
| Humidity | 5% to 95% RH |
| IP Protection Rating | IP65 |
