Baicells Outdoor CPE - CAT15, 2T4R, 3.5 GHz, 18dBi, B42/43/48 CPE
US$379.00
- SKU: EG8015G-M11
- Manufacturer: Baicells
- Data Sheet: Download
Product Information

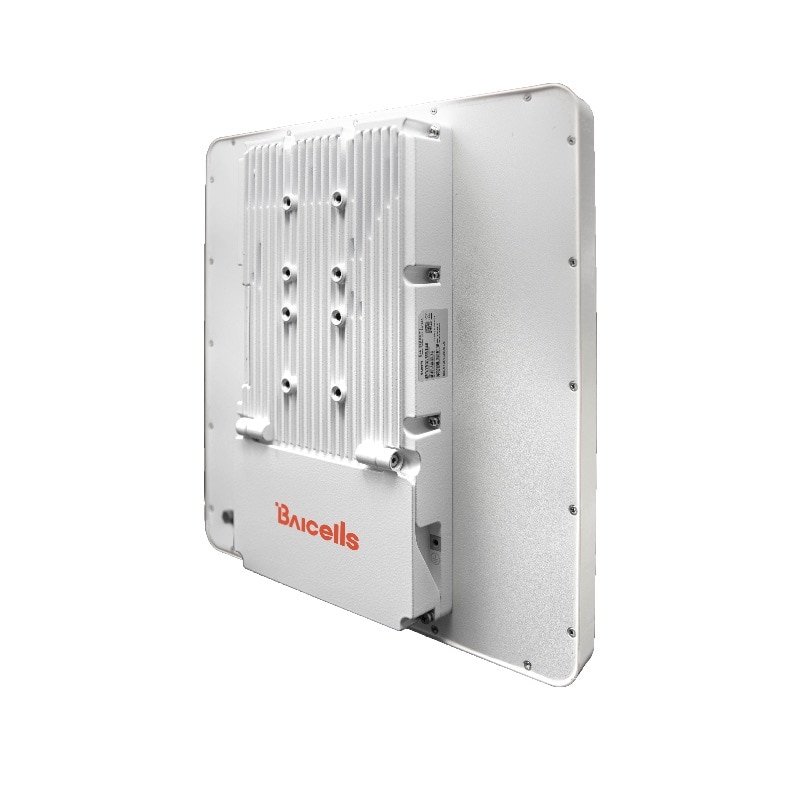

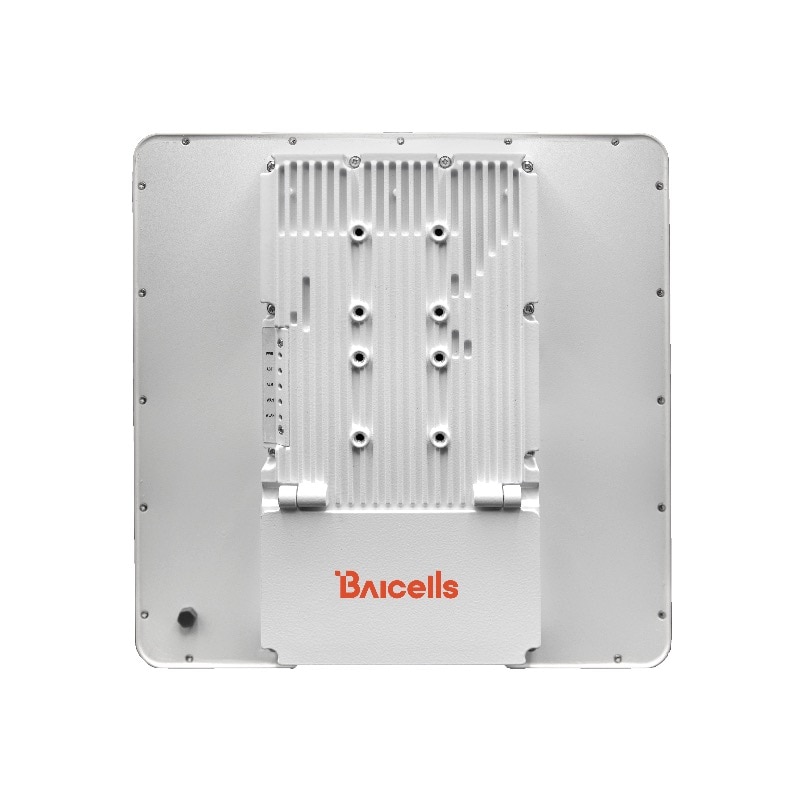

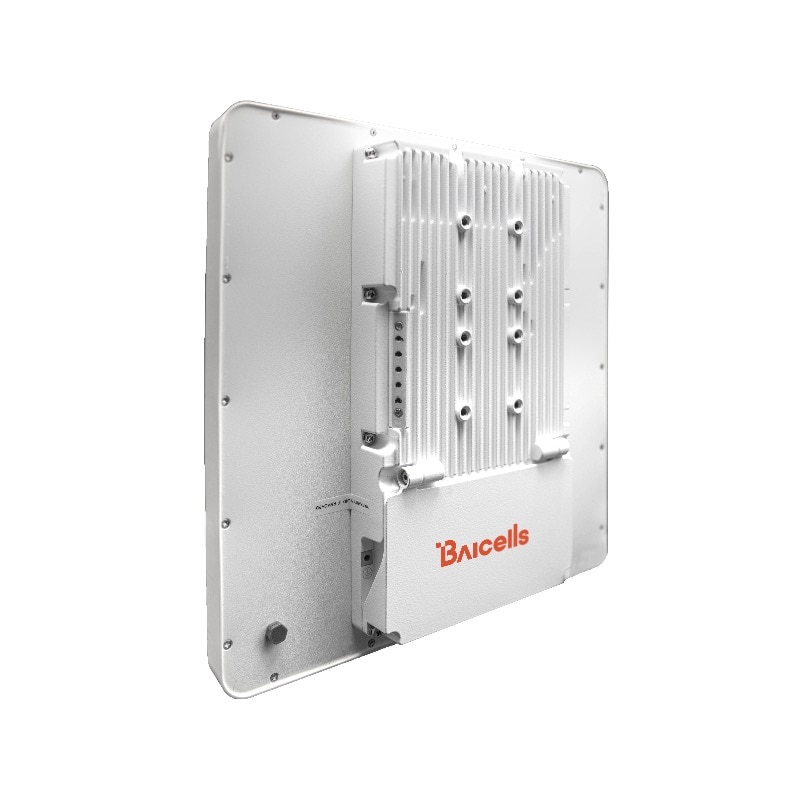

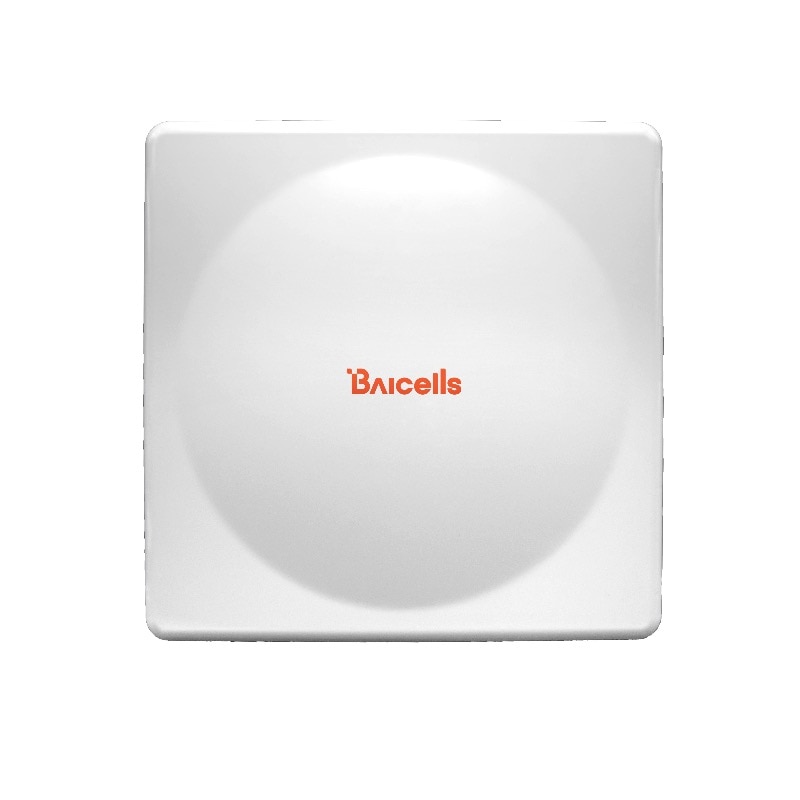

Baicells EG8015G-M11
Outdoor CPE - CAT15, 2T4R, 3.5 GHz, 18dBi, B42/43/48 CPE
The Baicells Atom OD15G-M11 Outdoor High-Gain CPE provides superior performance and routing capabilities to bring broadband data and voice services to endusers. It operates on standard LTE TDD to enable highspeed, wireless communications. This CPE supports Bands 42, 43, and 48, and complies with 3GPP Release 12 CAT15 standards. The radio design is for UL 2x2 and DL 4x4 MIMO and RX diversity, which enables improved cell coverage. It also supports Carrier Aggregation (CA or CCA), which extends bandwidth, increases data rates, and improves overall network performance. The product comes with a standard one-year warranty.
Features:
- Supports LTE TDD Bands 42/43/48
- Complies with 3GPP Release 12 CAT15 standards
- 1000 Mbps Ethernet interface
- Peak data rate of up to 550 Mbps DL and 30 Mbps UL @ 20 MHz (2:7) in controlled environment
- GUI-based local and remote management
- Supports MCS DL QPSK/16QAM/64QAM/256QAM and UL QPSK/16QAM/64QAM
- TR069 network management protocol support
- Cell lock, SIM lock, and pin lock
- User-friendly LED status indicators
- Built-in LTE directional antenna, 4x4 MIMO
- Power supply with PoE
- Pole or wall mount
Specifications
Specifications EG8015G-M11
| LTE Standard | 3GPP Release 12, CAT15 |
| ETH LAN Port | 1 RJ-45, LAN,10/100/1000 autosensing, auto-MDX, PoE |
| LED Indicators | PWR, RUN, LTE Signal |
| USIM | 1.8V/3V 2FF |
| Reset Button | Press for 10 seconds to restore the CPE to its factory settings |
| Power Supply | Input: Universal range 100V-240V AC Output: PoE (24VDC, 0.5A) |
| Dimensions (HxWxD) | 375 x 375 x 70 millimeters (TBD) |
| Weight | 2500 g (TBD) |
| RF SPEC | |
| LTE Mode | TDD |
| Channel Bandwidth | 5/10/15/20 MHz |
| Frequency Bands | 42/43/48 and customized |
| Carrier Aggregation | DL 2x2 MIMO: 2CC/3CC/4CC CA DL 4x4 MIMO: 2CC CA UL: 2CC CA |
| MAX Output Power | 23 ± 2dBm |
| Peak Rate | (up to) Using 2:7 configuration, 20 MHz bandwidth DL 550 Mbps UL 30 Mbps |
| Modulation | DL: QPSK, 16QAM, 64QAM, 256QAM UL: QPSK, 16QAM, 64QAM |
| Receive Sensitivity | ≤ 94 dBm @ QPSK, 20 MHz, 25°C |
| Antenna Type | Internal directional, 4x4 MIMO |
| Antenna Gain | 18 dBi |
| Antenna Polarization | ±45° |
| Antenna Efficiency | > 70% |
| SOFTWARE | |
| Network Mode | NAT, Bridge, Router, Tunnel |
| IP Protocol | IPv4/IPv6 |
| SIM | PIN management, SIM lock |
| Network Connection | Auto or Manual |
| LTE Scan Mode | Full band scan, frequency lock |
| VPN | L2TP L2/L3, GRE L2/L3, PPTP, IPSec |
| NAT Port | forward/trigger, DMZ, ALG |
| Firewall | IP/MAC/URL filter; access control; block port scanner/SYN flood; SPI filter |
| Network Mgmt | TR069, SNMP |
| Diagnostics | TCP dump, ping, traceroute |
| Statistics | LTE status; connection/system up time; device status; DHCP client list; Wi-Fi station list; firewall status |
| Maintenance | Date and time setting; reboot; restore factory settings; restore/back up configuration file; firmware upgrade locally or OTA |
| System Logs | Operating; run-time; filter/ select / display / export |
| ENVIRONMENTAL | |
| Operating Temperature | -40°F to 131°F / -40°C to 55°C |
| Storage Temperature | -40°F to 158°F / -40°C to 70°C |
| Operating Humidity | 5% to 95% |
| Ingress Protection Rating | IP67 |
