Baicells Atom Outdoor Cat6, 2T4R, 3.5 GHz, 14 dBi, B42/43/48 UE
- SKU: EG7010A-M11
$307.00
- Manufacturer: Baicells
- Data Sheet: Download
Product Information

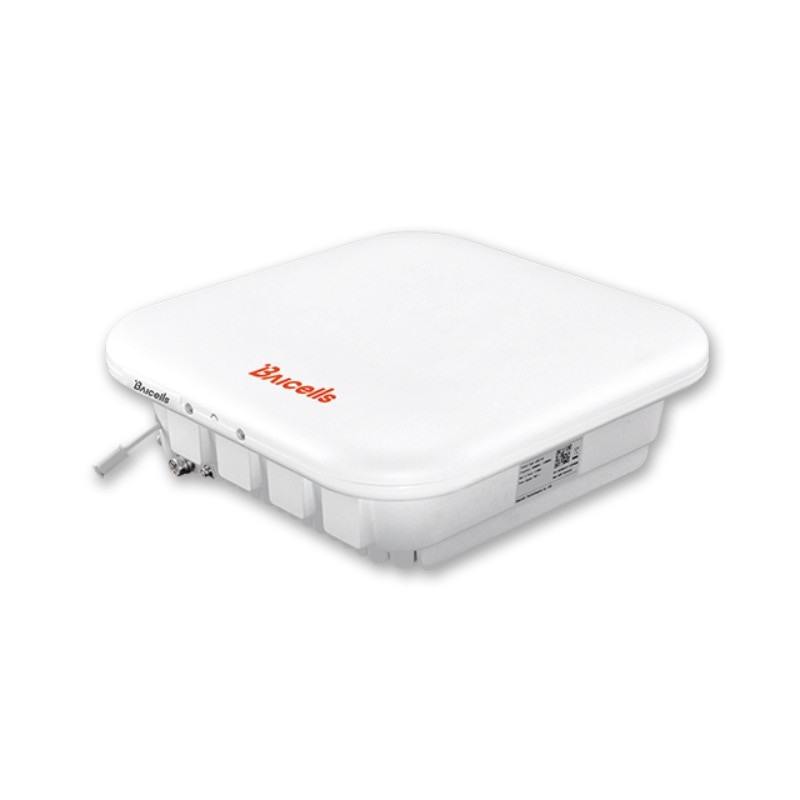

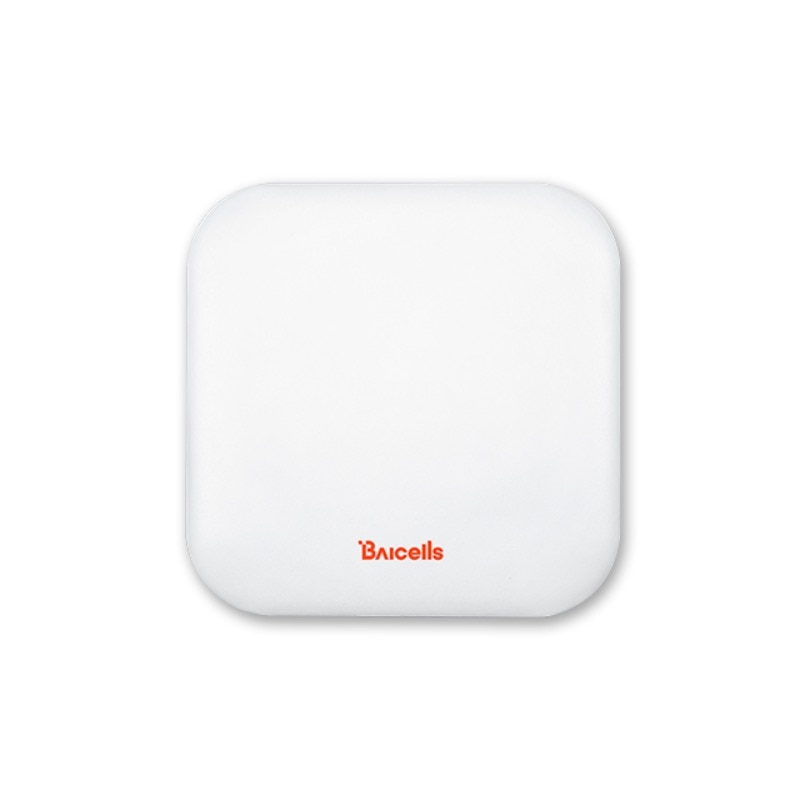

Baicells EG7010A-M11
Atom OD06 3.5GHz 14dBi CAT 6 Outdoor CPE Band 42/43/48
Baicells Atom OD06 3.5GHz 14dBi CAT 6 Outdoor CPE Band 42/43/48 provides superior wireless access performance and comprehensive routing capabilities to bring wireless broadband data and voice services to end-users.
It is designed exclusively for the fixed wireless market, featuring a spring-locked gasket door for protecting the SIM slot and eliminating the need for weatherproofing the power and Ethernet connections. Wireless and wired devices, including mobile phones, laptops, tablets and other smart devices, can access the UE simultaneously.
Features:
- Supports LTE TDD bands 40, 41, 42, 43, 48, and customized
- 2.5 GHz or 3.6 GHz models
- Complies with 3GPP Release 10 CAT 6/7 standards
- 1000 Mbps Ethernet interface
- GUI-based local and remote Web management
- TR069 network management protocol support
- Cell lock, SIM lock, and pin lock
- User-friendly LED status indicators
- Built-in LTE bipolar, directional, high-gain antenna
- Power supply with PoE
- Pole or wall mount
- Supports Wi-Fi alignment
Specifications
Specifications EG7010A-M11
| BASIC SPECIFICATIONS | |
| LTE Standard | 3GPP Release 10, CAT 6/7 |
| Ethernet LAN Port | One RJ-45 port 10/100/1000 autosensing, auto-MDX, PoE |
| LED Indicators | MIU/LTE/SIM/LAN/PWR/LTE SIGNAL |
| USIM | 1.8V/3V 2FF |
| Restore Button | Tactile button. Press button for at least 10 seconds to restore UE to factory settings |
| Power Supply | Input: Universal range 100V to 240V AC Output: PoE (24VDC, 0.5A) |
| Dimensions (HxWxD) | 9.8 x 9.8 x 3.2 Inches 248 x 248 x 80 millimeters |
| Weight | 4 lbs (1800 g) |
| RF SPECIFICATIONS | |
| LTE Mode | TDD |
| Channel Bandwidth | 5 / 10 / 15 / 20 MHz |
| MAX Output Power | 23 ± 2dBm / TX Ant |
| Carrier Aggregation | 2CC CA |
| Frequency | Bands* Bands 40, 41, 42, 43, 48, and customized |
| Antenna Gain | 14 dBi @ 3.x GHz, 4 ports 11 dBi @ 2.x GHz, 4 ports |
| Carrier Aggregation* | 2CC CA |
| Peak Rate | DL 220 Mbps, UL 15 Mbps (2:7) |
| Modulation | DL: QPSK, 16QAM, 64QAM UL: QPSK, 16QAM, 64QAM |
| Receive Sensitivity | -94 dBm @ QPSK, 20 MHz, 25°C |
| Antenna Type | Internal directional, 2T4R (uplink enhanced) |
| Polarization | ±45° |
| Antenna Efficiency | >70% |
| Isolation | ≤-20dB |
| VSWR | ≤2.5 |
| Horizontal Beamwidth (3 dB) | 60 ±5° @ 2.x GHz, 4 ports 25 ±5° @ 3.x GHz, 4 ports |
| Vertical Beamwidth (3 dB) | 35 ±5° @ 2.x GHz, 4 ports 25 ±5° @ 3.x GHz, 4 ports |
| SOFTWARE SPECIFICATIONS | |
| Network Mode | NAT / Bridge / Tunnel |
| IP Protocol | IPv4 / IPv6 |
| SIM | PIN management SIM lock |
| Network Connection Management | Auto / Manual |
| LTE Scan Mode | Full band scan, frequency lock |
| WLAN | Wi-Fi for UE alignment |
| VPN | L2TP L2/L3 GRE L2/L3 |
| NAT | Port forwarding Port trigger DMZ ALG |
| Statistics | LTE status; connection/system up time; device status; DHCP client list; Wi-Fi station list; firewall status |
| Firewall | IP/MAC/URL filter; access control; block port scanner/SYN flood; SPI filter |
| Network Management | TR069, TR104, SNMP |
| Diagnostics | TCP dump, ping, traceroute |
| Maintenance | Date and time setting; reboot; restore factory settings; restore or back up configuration file; firmware upgrade locally or OTA |
| System Logs | Operating; run-time; filter/ select / display / export |
| WI-FI SPECIFICATIONS | |
| Standard | IEEE 802.11b/g/n |
| Channel Bandwidth | 20/40 MHz |
| Frequency | 2.4 GHz |
| TXRX | 1T1R |
| Peak Rate | 802.11b: 11 Mbps 802.11g: 54 Mbps 802.11n: 300 Mbps |
| Modulation | DSSS/CCK, OFDM |
| Receive Sensitivity | • -64 dBm @ 65 Mbps, typical for 802.11n • -65 dBm @ 54 Mbps, typical for 802.11g • -76 dBm @ 11 Mbps, typical for 802.11b |
| Max Output Power | 10 ±3dBm |
| Antenna Type | Internal omni, 1T1R |
| Antenna Gain | 0 dBi |
| ENVIRONMENT | |
| Operating Temperature | -40°F to 131°F / -40°C to 55°C |
| Storage Temperature | -40°F to 158°F / -40°C to 70°C |
| Operating Humidity | 5% to 95% |
| Ingress Protection Rating | IP67 |
