Grandstream IP Phone, 6 lines, 6 SIP accounts and 6-way voice conferencing
|Protocols/Standards||SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE,TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP, IPv6|
|Network Interfaces||Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with integrated PoE|
|Feature Keys||6 line keys with up to 6 SIP accounts, 24 speed-dial/BLF extension keys with dual-color LED, 5 programmable context sensitive softkeys, 5 navigation/ menu keys, 11 dedicated function keys for : MESSAGE (with LED indicator), PHONEBOOK, TRANSFER, CONFERENCE, HOLD, HEADSET,MUTE, SEND/ REDIAL, SPEAKERPHONE, VOL+, VOL|
|Telephony Features||Hold, transfer, forward, 5-way conference, call park, call pickup, shared-call-appearance (SCA)/bridged-line-appearance (BLA), downloa- dable phonebook (XML, LDAP, up to 2000 items), call waiting, call log (up to 500 records), customization of screen, off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot desking, personalized music ringtones and music on hold, server redundancy and fail-over|
|Sample Applications||Weather, currency, news, XML|
|HD Audio||Yes, both on handset and speakerphone|
|QoS||Layer 2 (808.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS|
|Security||User and administrator level passwords, MD5 and MD5-sess based authentication, AES based secure configuration file, SRTP, TLS, 802.1x media access control|
|Multi-language||English, Arabic, Chinese, Croatian, Czech, Dutch, German, French, Hebrew, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Slovenia, Spanish, Turkish|
|Upgrade/Provisioning||Firmware upgrade via TFTP/HTTP/HTTPS, mass provisioning using TR-069 or encrypted XML configuration file|
|Power & Green Energy Efficiency||Universal power adapter included: Input: 100-240VAC; Output: ,+12V, 1.0A Integrated PoE (Power-over-Ethernet) 802.3af, Max power consumption: 6W|
|Physical||Dimention: 275.5mm (W) x 206mm (L) x 46.5mm (H); Unit weight: 0.98kg; Package weight: 1.62kg|

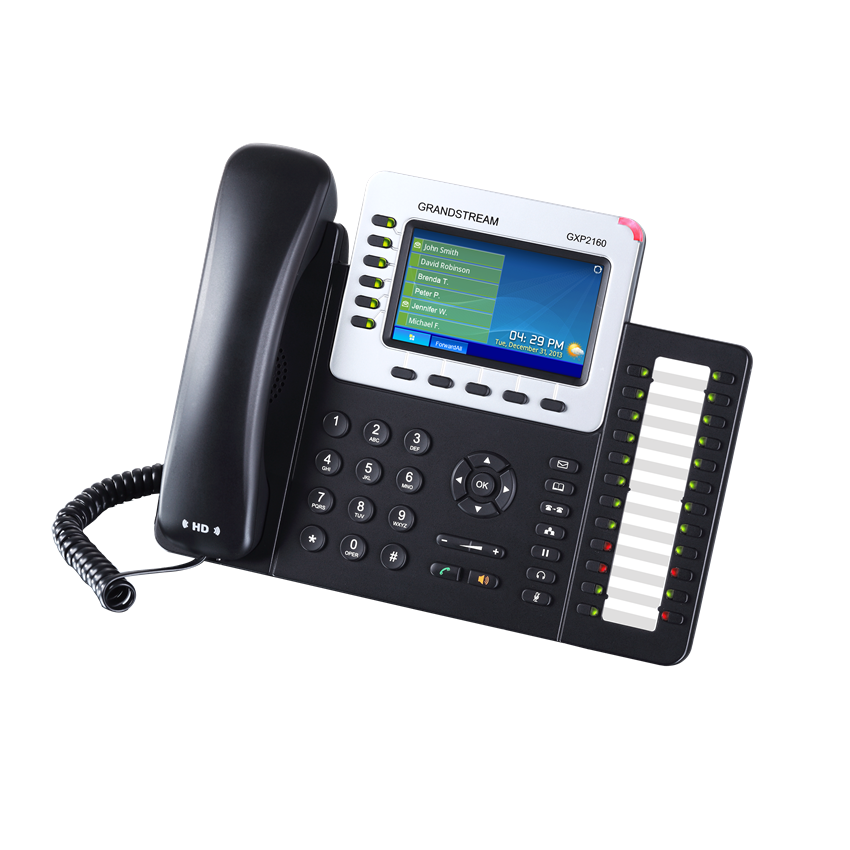

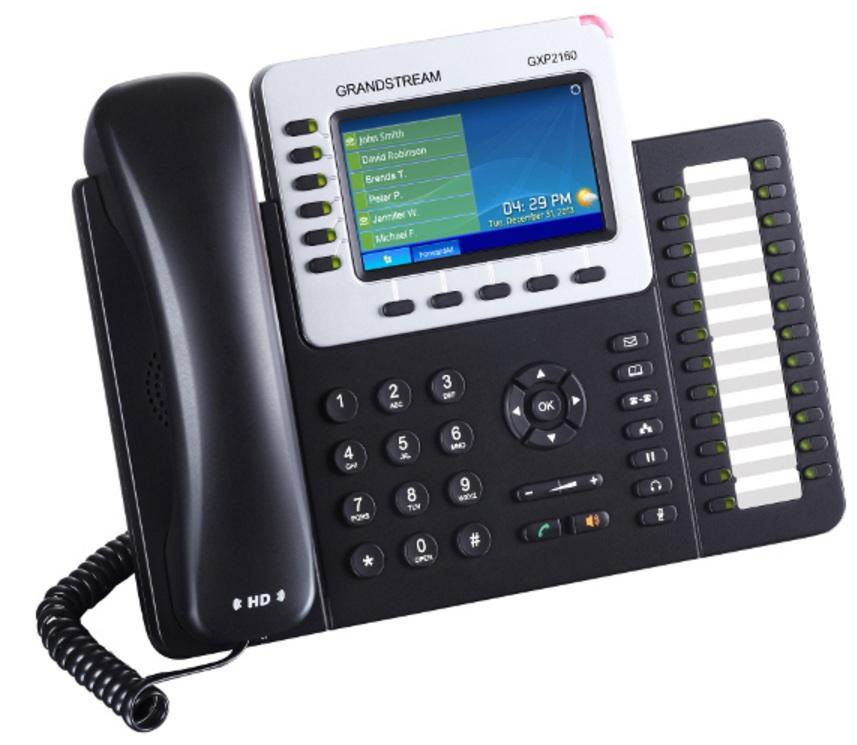

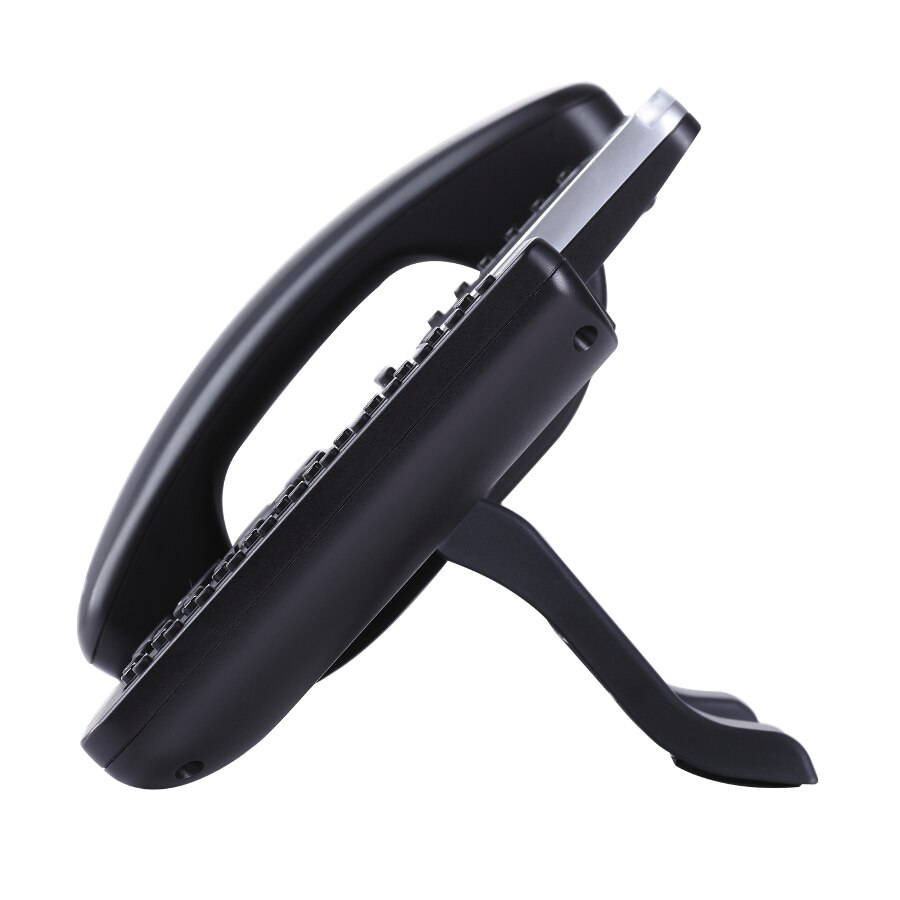

The GXP2160 supports 6 lines, 5 XML programmable soft keys for customization and 5-way voice conferencing to keep business users in-touch. HD audio and a 4.3" color LCD screen create high quality calls, the built-on 24 BLF/speed-dial keys allow users to easily monitor presence and status of other extensions and transfer calls. Built-in Bluetooth support allows for use of Bluetooth headsets and transferring of phonebook and calls from paired mobile devices. This High-End IP phone also features Electronic Hook Switch support for Plantronics headsets and a built-in USB port. The GXP2160 is perfect for Enterprise & SMB customers with the need for quality and versatility in their desktop communications.
As all Grandstream IP phones do, the GXP2160 features state-of-the-art security encryption technology (SRTP and TLS). The GXP2160 supports a variety of automated provisioning options, including zero-configuration with Grandstream’s UCM series IP PBXs, encrypted XML files and TR-069, to make mass deployment extremely easy.
