KP Performance 2 GHz 120° ± 45 Degree Slant 14.5 dBi / Designed for LTE

(0)No Reviews yet
US$‎324.89 US$‎341.99
  • SKU: KP-2DP120S-45
  • Manufacturer: KP Performance
  • Data Sheet: Download
  • Installation Guide:Download
2 in stock
College Station
2 In stock

Product Information

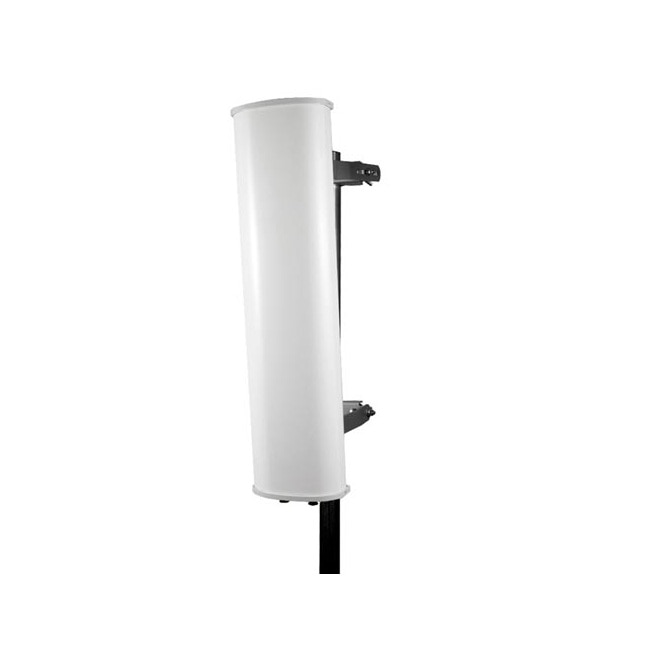

KP Performance KP-2DP120S-45

2 GHz 120 Degree ±45 Degrees Slant 14.5 dBi (Designed for LTE)

The KP-2DP120S-45 is a 2-port 14.5 dBi sector antenna designed for use in 2 GHz WISP and LTE networks. The unique design of these 2 GHz sector antennas minimizes interference by utilizing a 120-degree gain pattern and ±45-degree slant dual polarization scheme.

The KP-2DP120S-45 sector antenna is designed to provide high-gain and maximum coverage and feature improved front-to-back and pattern roll off that allows for higher spectral efficiency. This sector antennas operates in the popular LTE frequency range of 2.3 GHz to 2.7 GHz and delivers VSWR of 1.5:1 to 1.7:1 depending on frequency.


Specifications KP-2DP120S-45

Frequency Range2.3 GHz to 2.7 GHz
Polarization Type45 Deg. Slant
Gain14 dBi
Vertical Beamwidth
Horizontal Beamwidth120°
Electrical Downtilt
F/B Ratio28 dB
Cross Polar Ratio25 dB
Port Isolation25 dB
Connector Type2 x Type N Female
Dimension 29 in L x 12 in W x 9 in H
Weight 20 lbs
