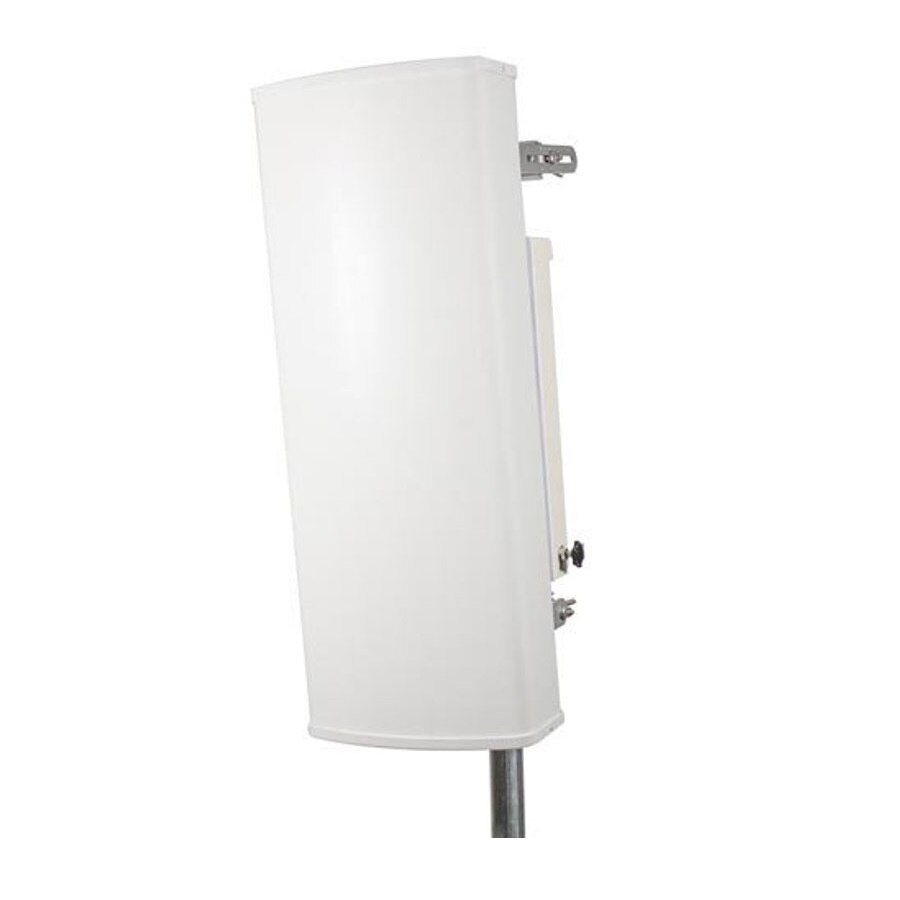

KP Performance 5 GHz H/V + 5 GHz H/V 65° Combo Sector Side Angle Alignment (2 Sectors one Shell)

(0) No Reviews yet
  • SKU: KPPA-5HV5HV-65SA
  • Manufacturer: KP Performance
  • Data Sheet: Download
  • Installation Guide: Download
  • Availability: Open chat or call usEmail me when this product is in stock!
$399.99

Specifications KPPA-5HV5HV-65SA

Frequency range5400-5900 MHz
PolarizationVertical and Horizontal
Gain16.5 dBi
Gain at Cross-Over13.5 dBi
Azimuth 3dB beamwidth65 ° per port, 130 ° total
Elevation 3dB beawidth4.8 °
Electrical Downtilt< 0.5 °
VSWR, Return Loss< 2:1. > 10 dB
F/B Ratio> 25 dB
Port-to-Port Isolation> 26 dB (same radio)
> 40 dB (other radio)
ABABAB frequency Re-use-20 dB
ABCABC Frequency Re-use-27 dB
Input Power50 W max per port
Connector TypeType N Female x 4
Dimensions29” x 11” x 7”
Weight16 lb
Mounting MethodCarriage bolts
Mounting Pole Dia1¼” – 3 ½”
Surface FinishMatt powder coat
Temperature Range-40° to +60° C / +140° F
Wind Speed160 km/h / 100 mph
UV ProtectionUV resistant UPVC
Ingress ProtectionIP55 rain resistant
Cross-pol ratio> 35dB

KP Performance KPPA-5HV5HV-65SA/h2>

5 GHz H/V + 5 GHz H/V Combo 65 Degree Sector Antenna Side Angle Alignment (Two Sectors In One Shell That Covers 120 Degree)

The KPPA-5HV5HV-65SA is a 4-port sector antenna that features two 5 GHz antennas in one radome. Two 5 GHz horizontal/vertical polarization antennas are integrated into a single radome enclosure with each internal antenna fed via its own individual connectors. Two 60° sectors in a single radome are angled to cover 120° – two ports point to -30° and two ports point to +30°. Using three of the KPPA-5HV5HV-65SA antennas is a direct replacement for using six single 60° sectors to cover 360°. This 5 GHz dual sector antenna simultaneously reduces tower space, maximizes coverage and minimizes interference with its high gain and slant dual polarization performance. This sector antenna comes with a rugged case for two UBNT or ePMP radios and an adapter for external mounting up to two PMP radios. Pigtail cables not included.

The KPPA-5HV5HV-65SA sector antenna offers 16.5 dBi gain and a front-back ratio as high as 30 dB. This sector antennas utilizes four N-type connectors and operates in the popular frequency range of 5.2 GHz to 5.9 GHz.

Advantages

  • Reduced inches on tower, only 28” tall
  • Single mounting point means half the tower rental
  • Lower wind resistance than two equivalent sectors
  • Faster installation
  • Greater coverage than a single sector
