KP Performance 14.5dBi 900MHz Dual Pol Yagi Antenna
- SKU: KPPA-900DPY14 (Single)
- Manufacturer: KP Performance
- Data Sheet: Download
Product Information

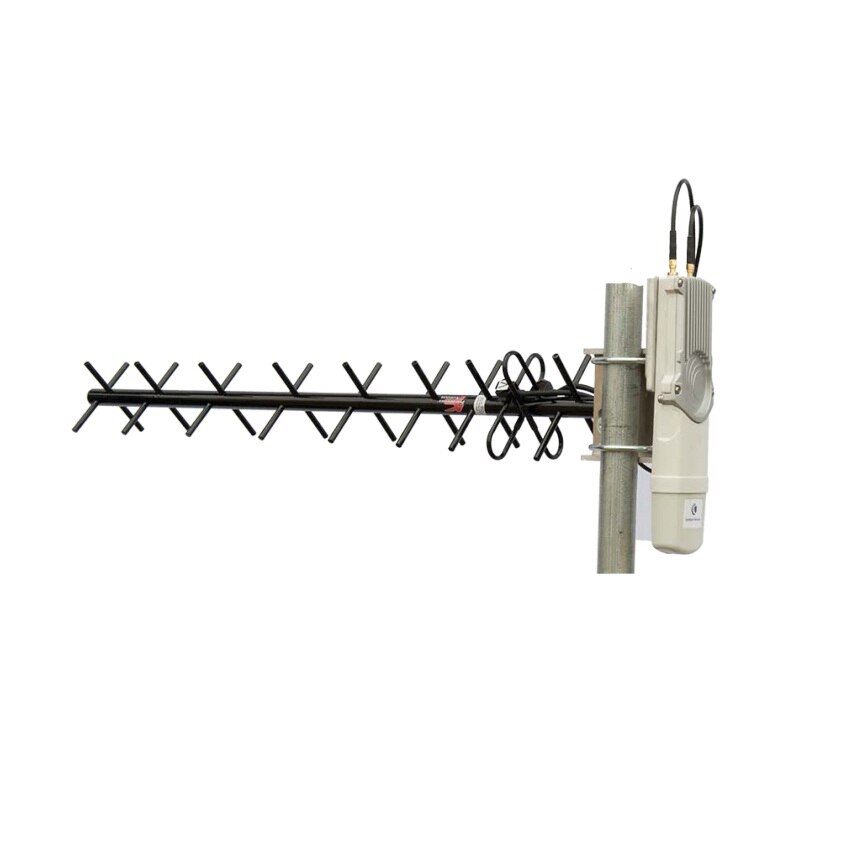

KP Performance KPPA-900DPY14 14.5 dBi 900MHz Dual Pol Yagi
The KP Performance Dual Pol Yagi Antennas have been engineered to exceed the requirements that have been in place for the standard in yagi antennas. The KP Performance KPPA-900DPY14 Yagi Antennas are manufactured using high strength 6061-T6 aluminum to withstand heavy ice, high wind and other harsh conditions. All elements are compression crimped into the boom (Not Riveted) which eliminates misalignment and fastener problems. Our yagi antennas are engineered and field tested for superior tree penetration and performance like no other yagi antenna on the market. The entire antenna is powder coated for durability, ice build up prevention and corrosion resistance. An integrated antenna and radio mounting bracket is supplied which easily permits horizontal or vertical polarization.
Specifications
Specifications KP Performance KPPA-900DPY14
Electrical
| Frequency range | 902-928 MHz |
| Polarization | Vertical/Horizontal / ±45° |
| Gain | 14 dBi |
| Azimuth 3dB beamwidth | 35 ° |
| Elevation 3dB beamwidth | 40 ° |
| VSWR | < 1.5:1 |
| Return loss | > 14 dB |
| F/B ratio | > 18 dB |
| Cross-pol ratio | > 26 dB |
| Port to port isolation | > 25 dB |
| Input power | 50 W max per port |
| Impedance | 50 Ω |
| Connector Type | 2 x RPSMA on pigtails |
Mechanical
| Dimensions | 23 x 6 x 6” |
| Weight | 3 lb |
| Mounting method | Carriage bolts |
| Mounting pole dia | 1¼” – 4” |
| Surface Finish | Matt powder coat |
Environmental
| Temperature range | -40° to +60° C / +140° F |
| Wind speed | 160 km/h / 100 mph |
| UV protection | UV resistant powder coat |
| Ingress protection | IP54 rain resistant |
