LightSaber Optics 6RU 24" Wide x 18" Deep Outdoor PoleMount Cabinet, NEMA 4X Rated|Grey Aluminum

(0)No Reviews yet
US$‎600.83 US$‎901.00
  • SKU: LSO-6UOD-600450PM-ALU
  • Manufacturer: LightSaber
  • Drawing Sheet:Download
2 in stock
College Station
2 In stock

Product Information

LightSaber Optics LSO-6UOD-600450PM-ALU

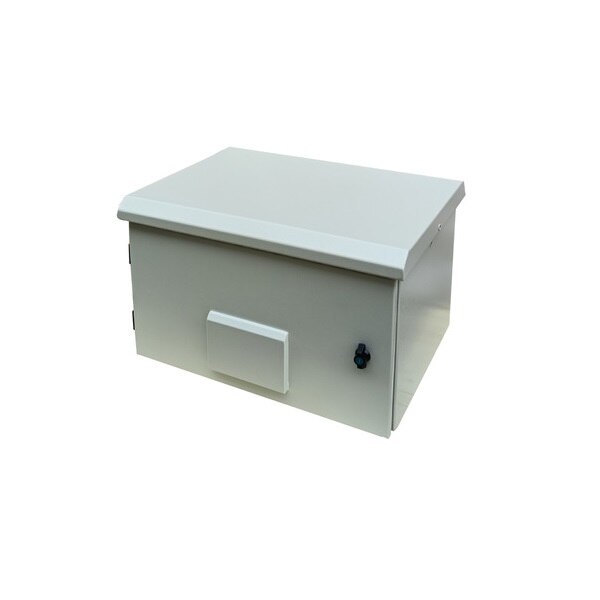

6RU 24" Wide x 18" Deep Outdoor PoleMount Cabinet, NEMA 4X Rated|Grey Aluminum

The LightSaber Optics 6RU 600mmWide x 450mmDeep Pole Mount Aluminum Outdoor Enclosure are designed for applications that require a lightweight, sturdy, weatherproof enclosure to house various electronics. The cabinet design allows natural wind cooling through filtered vents on the front door. For added protection, there is a water and dust proof polyurethane door joint strip.

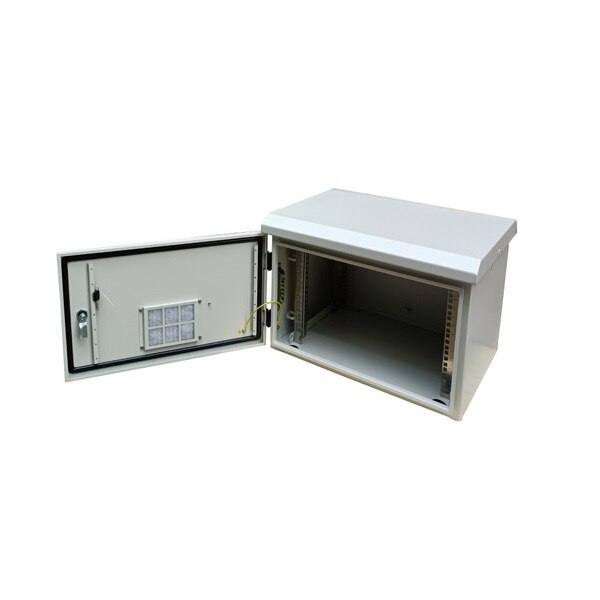

The outdoor enclosure also has a dual fan kit included in the roof with a dust proof cover greater airflow/cooling, the front door dust filters are easily accessible for cleaning. All fixtures are internal to the cabinet to provide a secure solution.




Features:

  • Fully assembled
  • 6U equipment space,NEMA 4X Rated

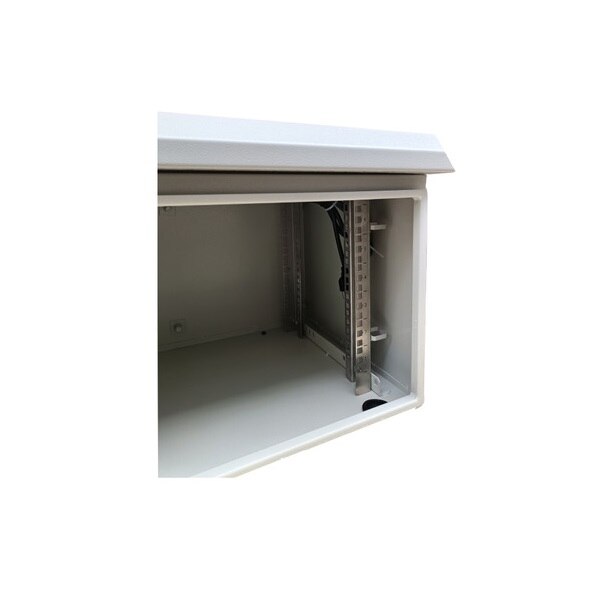

  • Adjustable 19inch equipment rail, with cable rings included

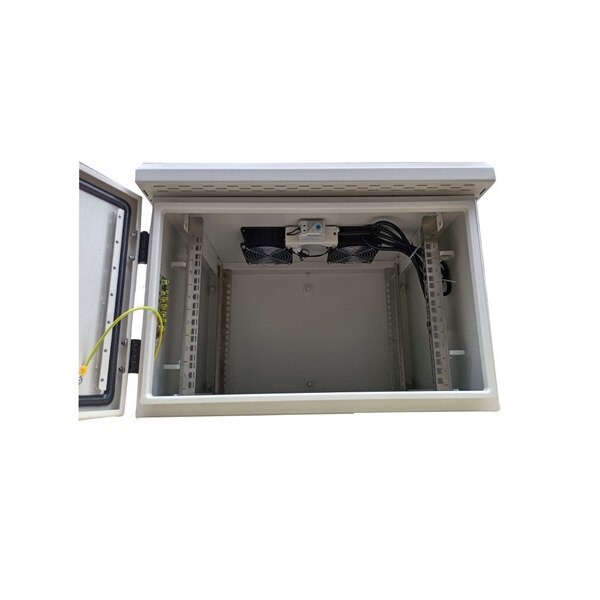

  • AC110V 60Hz Cooling Fan Unit (2pcs) on the top roof(with temperature controller)
  • Grounding wires
  • Cable entry holes with gromment on the bottom

Also comes with:

  • 4 x wallmount bracket(includes mounting hardware)
  • 2 x side lifting bracket (includes mounting hardware)

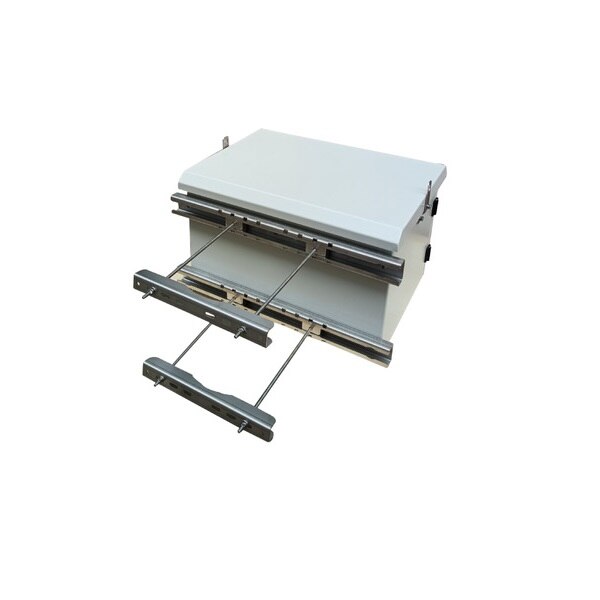

  • 1 x polemount bracket kits (includes mounting hardware)
  • 10 x M6 cagenut
  • 2 x Keys

Physical:

  • Water and dust proof polyurethane door joint strip
  • Wall mount and pole mount accessories included
  • Fully welded design, supplied complete, no assembly required
  • Made from Aluminum
  • Surface finish: Degreasing, pickling, phosphoric wash, cleaning, and powder coated

Specifications

Specifications

Protection ClassNEMA 4X
Rack Unit Size6U
Cabinet TypeWall Mount or Pole Mount Outdoor Enclosure
ColorGrey RAL7035
MaterialAluminum
Unit Dimension(WxDxH)23.62 x 17.72 x 15.63 inches (without extrude rain roof dim.)
Unit Weight(lbs.)39.67
Internal Depth (Front Rail to Back Door)13.86 inches
Rail to Rail Depth12.48 inches
Shipping Dimension(WxDxH)26.77 x 20.87 x 18.89 inches
Shipping Weight(lbs.)55.1
Electrical
CoolingAC110V Cooling Fans x 2 (with tem. controller)
Certifications
SafetyCE
ApprovalsDIN41491, DIN41494, EIA/ECA-310-E, IEC 60297-3-100, RoHS
Warranty
Product Warranty1 Year
