Product Information

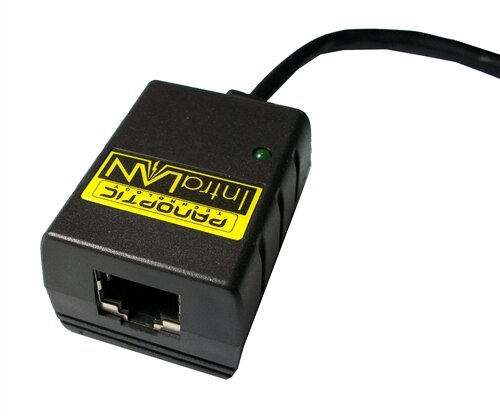

Panoptic Smart Adapter 48V to 12V PoE
The IPA4512 will convert a standard 48V POE to 12V POE signal. This allows you to use any standard 802.3af compliant POE switch to power any 12V POE device.
The IntraLAN Power Adapter adopts the PoE Standard (803.2af) and provided a series of useful components to:
- Enhance the networking capabilities
- Extend the standard ethernet network beyond the 300-foot limits
- Adopt the standard 803.2af signal to “non-standard” PoE devices and even non-PoE devices
These 803.2af PoE Power Adapters help to transform standard 803.2af PoE network appliances, such as an 8-port PoE switch, into a more powerful tool by allowing these to connect, power and manage a complete range of non-standard devices. This is accomplished by “bridging” from the standard 803.2af format to the format of the “end device.”
Features
Programmable for all kinds of demanding devices.
IntraLAN Power adapters can be programmed to:
- Change power levels
- Change the pinout on the PoE design
- Completely split the power out into a power “pig tail” with any size barrel connector and any voltage!
Specifications
Specifications PE-IPAF4512-PAN
Technology
| Input Voltage | 36V to 57V DC |
| Input Current | 400mA maximum continuous as per IEEE 802.3af |
| PD Detection | Presents IEEE802.3af PD signature and Class 0 classification to PSE on any one pair |

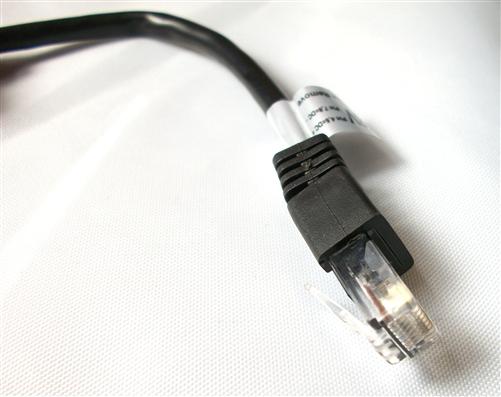

| Ports | RJ45 shielded connector for PoE Input |
| Output | (±3%) Can be 5V, 7.5V, 9V, 12V, 18V or 24V |
| Output Current (RMS) | Can be 2A, 1.7A, 1.4A, 1A, 0.7A or 0.5A |
| Output Power | 12 Watts maximum continuous. 12.94 Watts maximum.. Maximum output power is determined by the input (voltage and current). Current IEEE 802.3af standard permits 12.94 Watts output. |
| Regulation (typical) | ± 3% |
| Ripple | < 100mV p-p (at DC Jack) |
| End to end | ≈ 85% (at 24W load at 48V input) |
| Ports | RJ45 shielded connector for Data Out. Centre positive barrel 5.5mm x 2.1mm for DC Out |
| LED | PoE detection and classification |
Environmental
| Operation | 0 to 50°C (32 to 122°F) |
| Storage | -20 to 65°C (-4 to 149°F) |
| Humidity | 5% to 85% RH |
| Dimension | 1.65 in x 1.26 in x 0.94 in (42 x 32 x 24 mm) |
| Weight | 1.4 oz (40g) |
