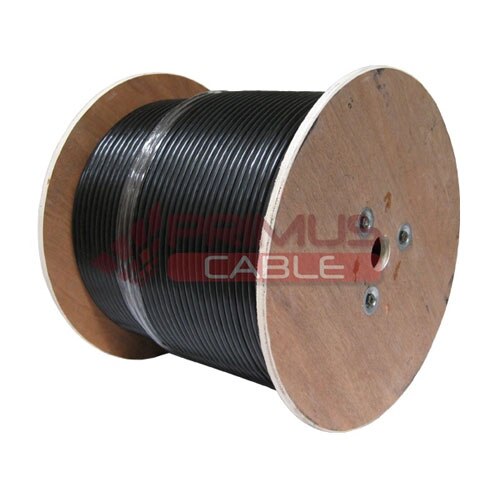

Primus Cable CAT6 Outdoor Cable, Direct Burial Shielded Ethernet with Waterblock Tape (1000ft)
- SKU: C6CMXT-2045BK
- Manufacturer: Primus Cable
- Data Sheet: Download
Product Information
PriMus Cable CAT6 Outdoor Direct Burial Cable, WaterProof Tape 23AWG Shielded CMXT UV 1000ft Black
CAT6 Outdoor Cable, Direct Burial Shielded Ethernet with Waterblock Tape
Primus Cable's Outdoor Direct Burial Waterblock Tape CAT6 Cable is ideal for your outdoor voice, data, video and security networking applications. Whether you are wiring your home, office or entire campus, we have the network solution that is right for you.

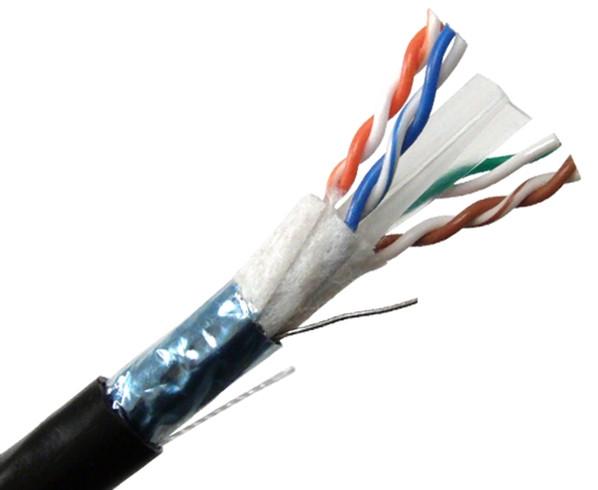

This Shielded Outdoor Waterblock Tape Direct Burial CAT6 Cable is the perfect fit for installations where the cable will be buried under ground in conduit. This cable's 8 conductors (4-Pairs) are solid bare copper with a high density polyethylene (HDPE) insulation and a low density polyethylene (LDPE) Jacket. This cable also includes a aluminum foil shielding which helps eliminate and protect against electrical interferences that could impede your signal. For added moisture protection this cable includes a waterblock tape that repels water keeping it out of the cable and away from the conductors. Our Shielded Category 6 Waterblock Tape Direct Burial Outdoor Cable is designed for residential outdoor direct burial LAN applications, making it the best solution for installation runs that require the cable to be buried under ground in conduit. Additionally, this cable has a tinned copper drain wire which grounds the electricity after it has been terminated. This drain wire is required on all shielded cable in order to prevent signal loss, cross-talk, and other performance issues. This cable is tested to perform up to speeds of 600MHz.
To make sure we are supplying our customer with high quality bulk Ethernet cables our cable have to meet and/or exceeds CAT6 TIA 568 C.2 standards. Our CAT6 Outdoor cable is also manufactured to meet current CAT6 guidelines and is verified by outside standards organizations and is RoHS Compliant.
Specifications
Specifications C6CMXT-2045BK
Physical Characteristics | |
Conductor Size | 23AWG |
Conductor Material | Solid Bare Copper |
Insulation Material | High Density Polyethylene (HDPE) |
Insulation Diameter | 1.12 ± 0.03mm |
Number of Conductors | 8 Conductors |
Number of Pairs | 4 Pairs |
Screening Material | Mylar + Water Blocking Tape |
Drain Wire | Tinned Copper |
Outer Shield Material | AL Foil/Mylar |
Outer Jacket Rip Cord | Yes |
Outer Jacket Material | LDPE (Complies RoHS) |
Outer Jacket Diameter | 7.8mm ± 0.4mm |
