Primus Cable ezEX™44 RJ45® Shielded CAT6/6A Connector (25 pack)

(0) No Reviews yet
  • SKU: CN1-6758-Z6S-25
  • Manufacturer: Primus Cable
  • Data Sheet: Download
  • Availability: 4 In Stock (updated live)
$77.25

Specifications CN1-6758-Z6S

Compliant 5e/6/6A
Insulation Diameter (Conductor) • Size range ezEX™44: 0.039” – 0.044” (1.0 – 1.12mm)
• Size range ezEX™48: 0.043” – 0.048” (1.09 – 1.22mm)
Max Outer Diameter • Unshielded: 0.290” (7.36mm)
• Shielded: 0.305” (7.75mm)

Primus Cable CN1-6758-Z6S (25 pack)

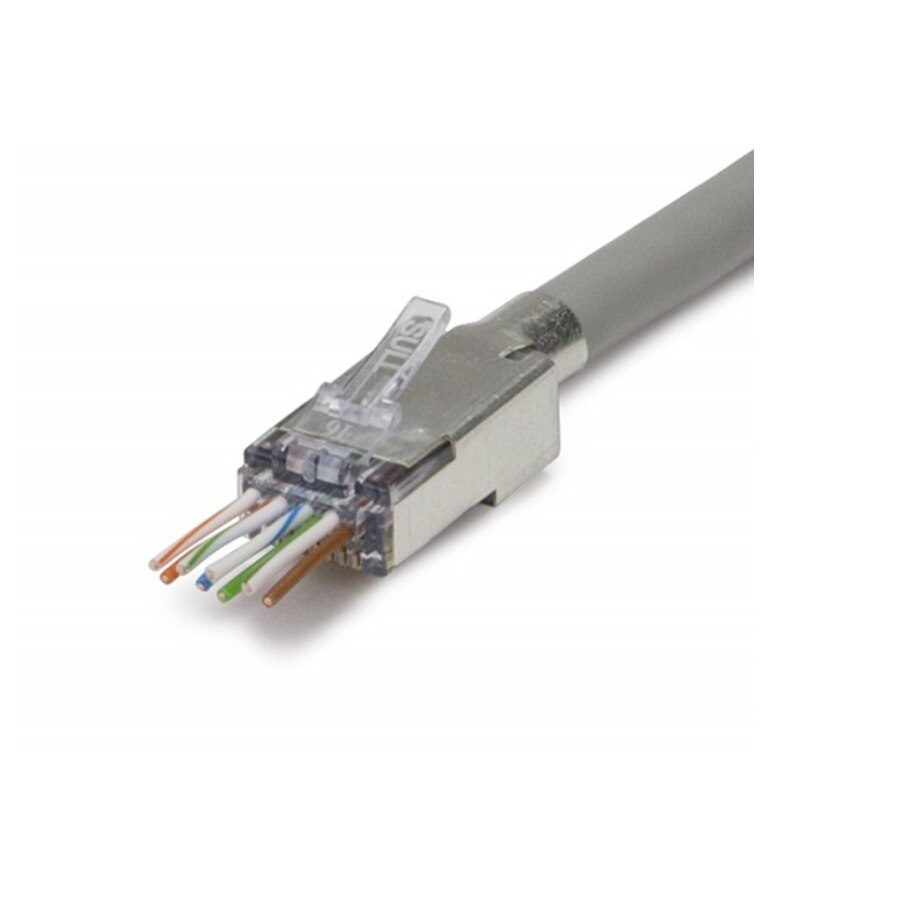

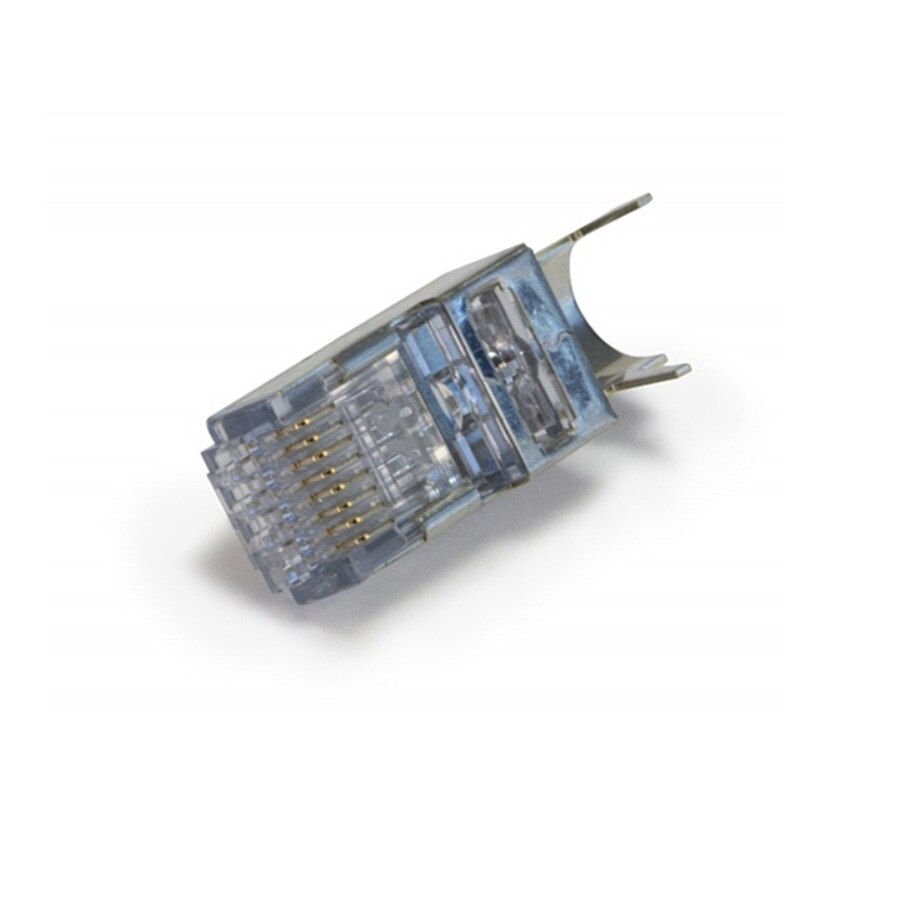

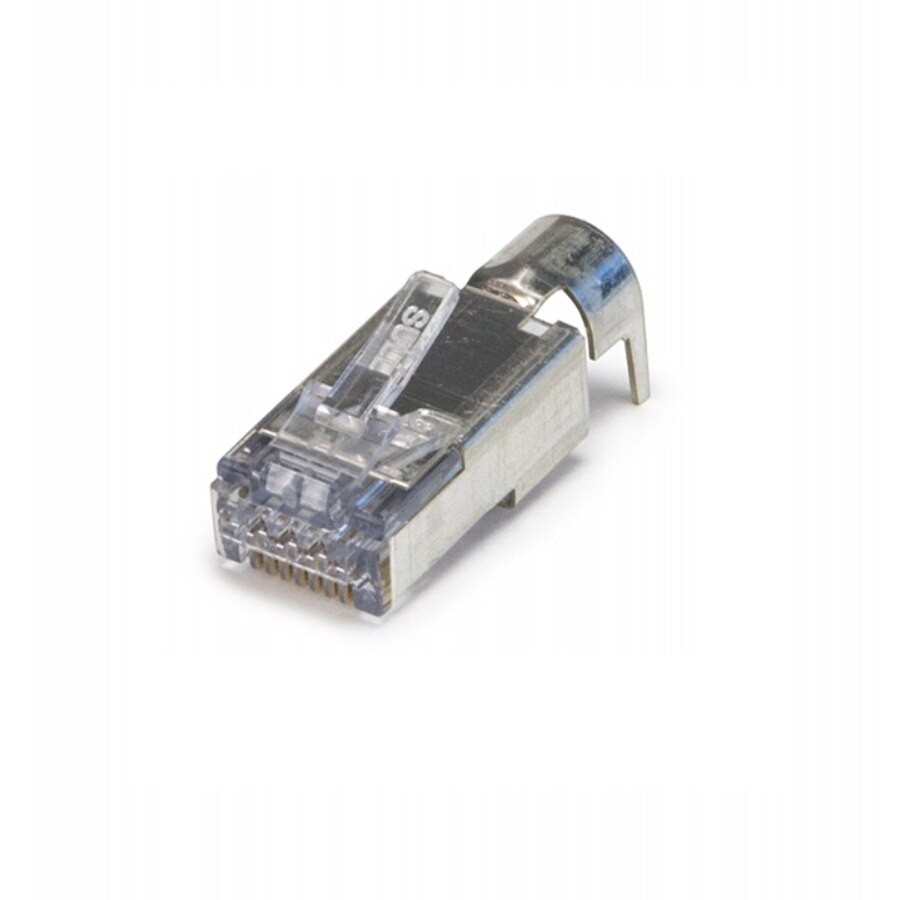

ezEX™44 RJ45® Shielded CAT6/6A Connector for .039"- .044" Insulation Diameter, External Ground

The American Made ezEX™44 RJ45® Shielded CAT6/6A Connectors provides an option for terminating larger diameter twisted pair cables with insulation diameter sizes ranging from 0.039-0.044." It's designed to handle larger sized conductors while maintaining the simplicity of the EZ® pass through design. This facilitates verification of wiring sequence before terminating. It has a high/low staggered design to accommodate larger diameter conductors while maximizing performance. It has a one piece design, no bars or liners are required. Compatible with both solid and stranded conductor 24-22 AWG cable.


Features:

  • For CAT6 and CAT6A Ethernet Cable with insulation diameters ranging from .039-.044"
  • Works with shielded solid and stranded 24-22 AWG cable
  • Pass through design for easy verification of wiring sequence
  • One piece design - No bars or liners required
  • Hi-Lo stagger to isolate each conductor
  • Rated for up to 10 Gigabit performance
  • Simple one piece/pass through design, no bars or liners
  • RoHS 2, UL, TIA, TAA, & FCC compliant
  • Made in the USA
