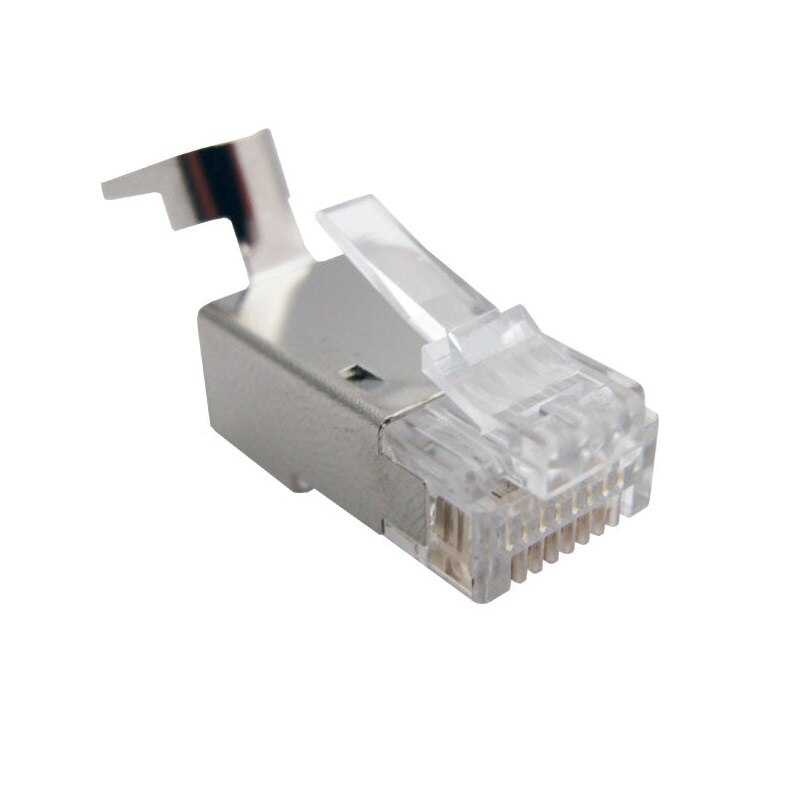

Primus Cable CAT6A/7 Shielded RJ45 Connector - OD Under 8mm - 25/Bag

Primus Cable CN1-7883-8C6AS

Connectors - (CN1-022-8C6AS) CAT7 8x8 Shielded RJ45 Modular Plug, 3 Prong, for Round Solid/Stranded Cable, 1.5mm OD, w/Inserter (UL) - 25/Bag

We believe in great networking products, they are the key to building a superior network. We hold our plugs to high standards with our customer and their network in mind. These RJ45 jacks are designed to work specifically with CAT6A, and/or CAT7 network cable. Use these jacks to make custom patch cords to fit your needs.

Each ethernet cable has a specific diameter and if it does not fit snuggly in the jack, there is a high chance it will slip out or strain the plug. Make sure your cable's outer diameter matches the plugs outer diameter when purchasing RJ45 plugs. This is represented by your cable's AWG. This jack fits a AWG of 26 to 22.

Gold plated contacts come standard and work with solid and stranded cable. They have 8 pins and 8 conductors (8p8c). The inserts are also included. The wire alignment insert provides an efficient cable assembly for the twisted pairs.

The efficiency of the insert will save time and money on any job. For a comprehensive guide on how to terminate this connector, view our blog post on Terminating RJ45 Connectors!

Why Shield Your Network?

Shielding your network prevents signal loss and electromagnetic interference (EMI). This RJ45 ethernet connector has a slim strain relief and shielding. The slim strain relief prevents snag tears and maintains the quality of the cable.

The shielding will help your cables transfer data at their true maximum speeds. This is especially important for data centers and server rooms where there is limited space and a lot of unwanted crosstalk between cables.

Features:

• Ideal for Creating Superior High Performance CAT6A Patch Cables in 10 Gigabit Ethernet Applications Where High Density Routers and Switches are Employed
• Meets CAT6A Performance Requirements per ANSI/TIA-568-B.2-10
• Robust Shield Termination and Strain Relief Allow for One-step Termination Process
• Optional Slimline Boot Features Integrated Strain Relief and Latch Protection
• UL 94-V0 Plastic Components
• Transparent Housing for Easy Conductor Alignment
• 8 Pins and 8 Conductors (8p8c)
• 50 Micro-Inch Gold Plated Contacts
• Fits 22 - 24 AWG Cable
• Fits Cables With a Jacket OD of Under 8.0 Mm
• Copper Alloy Shielding
• Rohs Compliant
• Operation Temperature: -20°C - 50°C
• Fits an Insulation Diameter of 1.35mm - 1.45mm
