Rohn 45G Self Support Base Plate 45GSSB
US$635.00
- SKU: 45GSSB
- Manufacturer: Rohn
- Spec Sheet:Download
Product Information

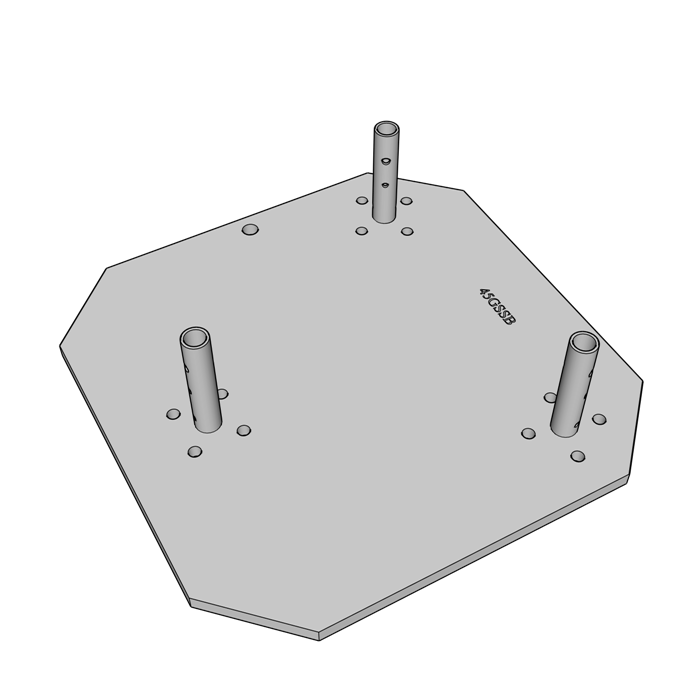

Rohn 45GSSB
45G Self Support Base Plate 45GSSB
This Rohn 45GSSB Base Plate is 24" Square and 3/4" Thick, to be Mounted onto an existing or a Engineered Concrete Pad,using Twelve (12) 1/2" DIA x 12 inch long Bolts or Equivalent ( HDG Treaded Rods ) Protruding through Pad ( See Engineering notes in Spec Sheet ) .Can be Used as a Self Supporting Base Plate for Self Supporting Tower Installations , depending on Wind Load.This Tower Base uses double bolted joints using Grade 5 (45JBK) Bolts which are proven to be the best method of joining tower sections for sturdiness and dependability. The 45G tower can also be used on guyed, or bracketed configurations according to specifications in the ROHN catalog. As a guyed structure, it can rise to a maximum of 300 feet.
Specifications
Specifications 45GSSB
Dimension | 25”x25”x8” |
Weight | 120 lbs. |
