Rohn RSL Tower 60ft - Section 1-6

$‎2,817.75 $‎3,315.00
  • SKU: RSL60L16
  • Manufacturer: Rohn
  • Data Sheet: Download
  • User Guide: Download
  • Availability: 1 In Stock    (updated live)
$‎2,817.75 $‎3,315.00

(click to select)

Specifications Rohn RSL60L16

BrandRohn
SeriesRSL Series
SupportSelf-Supporting Tower
3 Second Wind Gust with 1" Ice and Max Antenna SF90 MPH
Height60 FT
Max Antenna SF with 1" IceUp to 29 SF Antenna
Tower TypeLight Tower
Base footing8'6" x 8'6" x 4'4", (11.6 cu yds.)

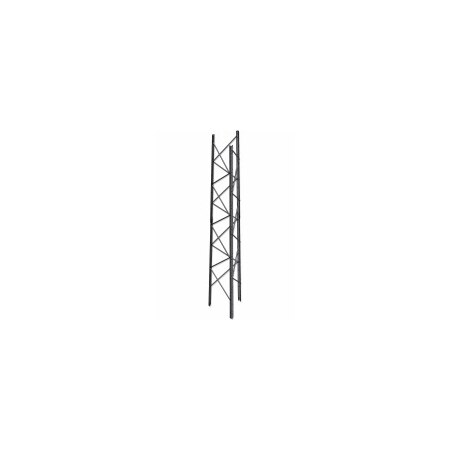

Rohn RSL60L16 RSL Tower 60ft - Section 1 - 6

RSL 60' Light Weight Self-Support Tubular Brace Tower Kit, U-Shaped High Strength Angle Legs, Hot-Dipped Galvanized, This is designed for use in Wireless Broadband, public Safety & Security applications .The RSL is shipped knocked down to reduce shipping cost and time.

CLASS I Structure / Exposure Cat B / Topo Cat 1

CLASS II Structure / Exposure Cat C / Topo Cat 1 / Wind -w- Ice 40 MPH @ 1" / Earthquake Ss 2.50


This Kit Includes:

  • Sections- 1-6
  • Top Kit- RSLH1A
  • Bolt Kits- 6
  • RSB06 Short Base ( Optional )
  • RAL06 Anchor Base Kit ( Optional)
  • ACWS
  • ASSEMBLY PACKAGE

Features:

  • 60’ Height
  • Handles up to 59 sq. ft.
  • Constructed of hot-dip galvanized steel
  • Available in standard and heavy models
  • Pre-punched holes for attachment of safety climb
  • systems, mounting kits, etc.
  • Braces for each section are the same length, while
  • bolt lengths are standard throughout the tower
  • Tower material is hot-dip galvanized
  • Assembly drawings provided with tower
  • Top closing Tube standard with each tower package
