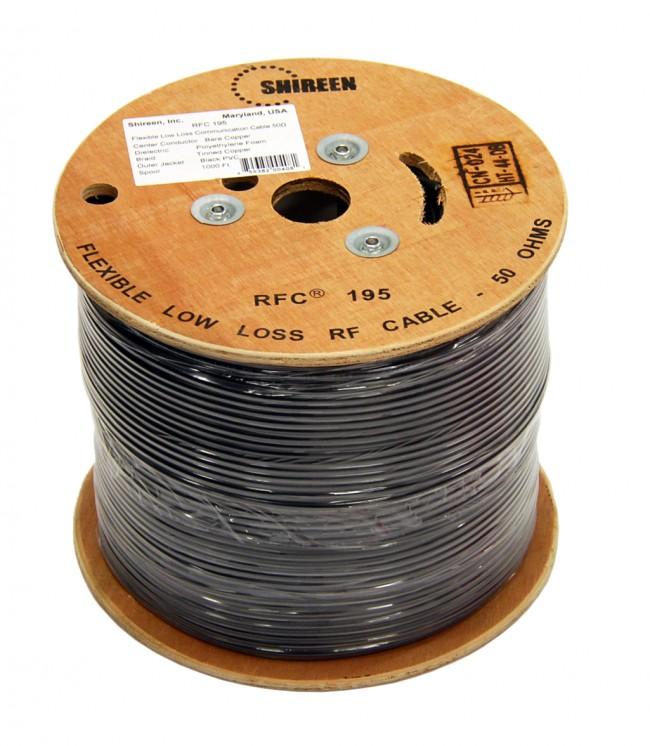

Shireen LMR195 EQ cables, 1000ft spool

(0) No Reviews yet
  • SKU: RFC195-1000
  • Manufacturer: Shireen
  • Data Sheet: Download
  • Availability: Please Contact us for AvailabilityEmail me when this product is in stock!
$209.00

Specifications RFC195-1000

Center Conductor

Min. Break Strength (N)293
Conductor Dia.(+/-0.01mm)0.94

Insulation

Insulation Dia.(+/-0.10mm)2.80
ColorNeutra
Centricity (%)≥ 90
Adhesion10 to 100N @ 25mm

1st Outer Conductor

Overlapping≥ 115%
Dia.(+/-0.10mm)2.95

2nd Outer Conductor

Conductor Dia.(+/-0.01mm)0.11
No. of Wires112
Coverage (+/-3%)90

Outer Jacket

Outer Dia (+/-0.10mm)4.95
Tensile strength≥ 13.5 N/mm2
Elongation at break≥ 300 %
Adhesion20 to 80N @ 50mm

Shireen RFC195-1000 LMR195 eq cables, 1000ft spool

Shireen’s latest RFC® series of low loss cables offer excellent characteristics that meet or exceed the specs of alternatives from Times Microwave, Commscope, Andrew and Belden.

RFC®, Registered trademark of Shireen Inc

LMR®, Registered trademark of Times Microwave Systems


  • Generic Name: RFC195
  • Cable Type: LMR®
  • Flex Type: Flexible
  • Impedance: 50 Ohm
  • Outer Jacket: PVC
  • Dimensions (WxLxH): 11 x 11 x 9
  • Weight: 26 Lb
