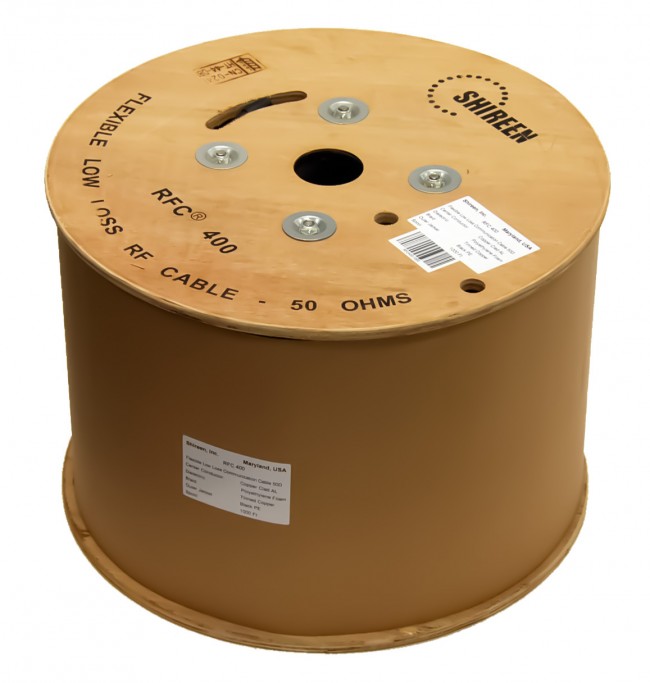

Shireen LMR400 EQ cables, 1000ft spool

US$‎728.00 US$‎787.75
  • SKU: RFC400-1000
  • Manufacturer: Shireen
  • Data Sheet: Download
  • Availability: Direct Ship Item Usually ships same day direct from manufacturer Email me when this product is in stock!
US$‎728.00 US$‎787.75

(click to select)

Shireen RFC400-1000 LMR400 eq cables, 1000ft spool

RFC400 Low Loss RF Coax Cable 1000 ft x 10 Reels

Shireen’s latest RFC® series of low loss cables offer excellent characteristics that meet or exceed the specs of alternatives from Times Microwave, Commscope, Andrew and Belden.

RFC®, Registered trademark of Shireen Inc

LMR®, Registered trademark of Times Microwave Systems

  • Generic Name: RFC400
  • Cable Type: LMR®
  • Flex Type: Flexible
  • Impedance: 50 Ohm
  • Outer Jacket: PE
  • Dimensions (WxLxH): 18 x 18 x 13
  • Weight: 74 Lb

Specifications RFC400-1000

Center Conductor

Min. Break Strength (N)640
Conductor Dia.((+/-0.02mm)2.74


Insulation Dia.(+/-0.10mm)7.24
Centricity (%)≥ 90
Adhesion10 to 100N @ 25mm

1st Outer Conductor

Overlapping≥ 115%

2nd Outer Conductor

Conductor Dia.(+/-0.01mm)0.15
No. of Wires192
Coverage (+/-3%)95

Outer Jacket

Outer Dia (+/-0.10mm)10.29
Tensile strength≥ 16.2 N/mm2
Elongation at break≥ 700 %
Adhesion20 to 80N @ 50mm
