TP-Link AX1800 Whole Home Mesh WiFi AP

(0)No Reviews yet
US$‎58.50 US$‎79.99
  • SKU: HX220(1-PACK)
  • Manufacturer: TP-Link
531 in stock
College Station
531 In stock

Product Information

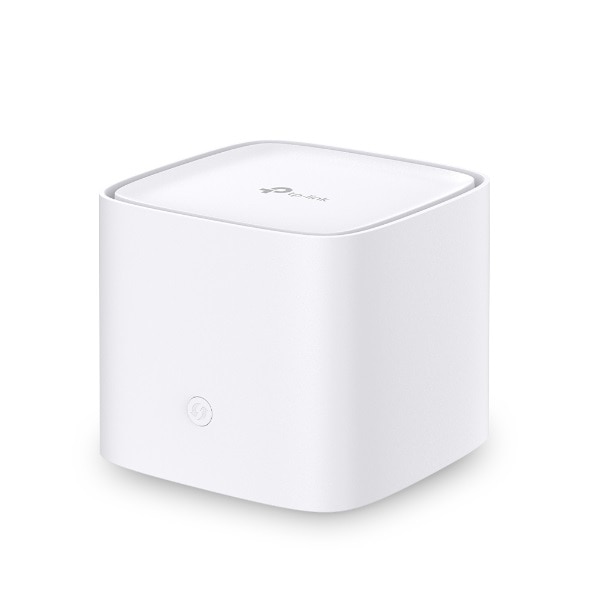

TP-Link HX220

AX1800 Whole Home Mesh WiFi AP

Advanced Mesh Powered by WiFi 6

Armed with WiFi 6 technology, HX220 provides faster speeds up to 1.8 Gbps for buffer-free 8K/4K streaming and gaming even with all smart home, mobile, and other electronic devices connected.

Extensive WiFi Coverage

Beamforming technology and high-performance antennas combine to adapt WiFi coverage to perfectly fit home and concentrate signal strength towards every device.

WiFi Dead-Zone Killer

Empowered by EasyMesh™, HX220 provides a strong WiFi signal in every corner of your home. Wireless connections and optional Ethernet backhaul work together to link each unit, providing even faster network speeds and truly seamless coverage. Want more coverage? Simply add another HX220 whenever you want.

Seamless Roaming with One WiFi Name

All units work together to form one unified network. Your mobile device will automatically connect to the fastest unit when you move through your home, creating a truly seamless Wi-Fi experience.

Stable Connections, No More Buffering

Enhanced by WiFi 6, featuring with OFDMA and MU-MIMO technology**, HX220 allows you to connect over 250+ devices. Enjoy a more efficient network that loads faster without dragging down performance.

2-in-1 Router and Access Point

Flexible and multifunctional, HX220 includes a variety of features to serve as a router or access point. Choose the mode for actual network demands and experience maximum wireless flexibility.

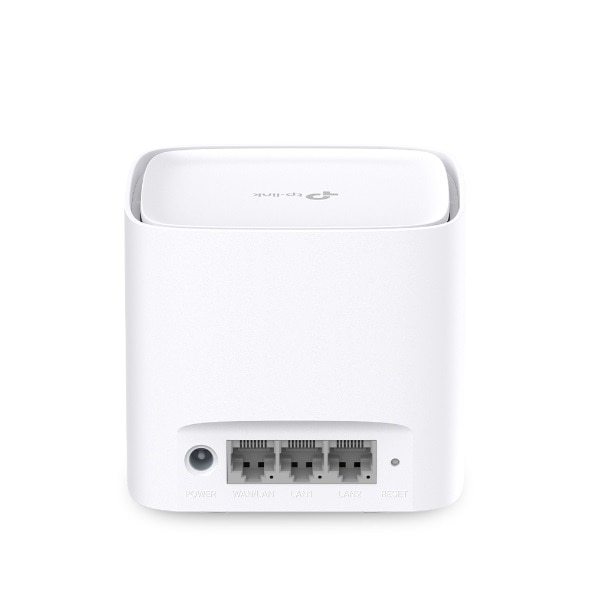

More Ethernet Ports for More Options

Each unit has 3 Gigabit Ethernet ports for fast and reliable wired connections. Supports wired Ethernet Backhaul for more stable speeds.

Robust Network Protection

  • WPA3 Security: Higher password safety and enhanced protection against brute-force attacks
  • Parental Control: Block inappropriate content and restrict time spent online
  • Multi-SSID: Create up to 6 separate networks for visitors and keep your main network secure

Easy to Set Up and Use

You can set up your device in minutes, whether you prefer the intuitive Aginet app or the powerful web interface. The Agient app allows you to manage network settings from your smart phone or tablet.



  • AX1800 Dual-Band Wi-Fi 6: 1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz).*
  • 802.11ax Technology: Create a seamless Wi-Fi network in your home with the revolutionary combination of OFDMA, HE80, and Beamforming technologies.**
  • EasyMesh: Provides whole-of-home WiFi coverage with standard mesh technology.
  • Gigabit Wired Speed: 1× Gigabit WAN/LAN port + 2× Gigabit LAN ports.
  • TR-069 & TR-369 Remote Management: TR-181, TR-369, TR-111, and TR-143 are supported.


Specifications HX220

Interface3× Gigabit Ports
*Per Unit
1 Port supports WAN/LAN auto-sensing
ButtonReset Button
WPS Button
External Power Supply12 V ⎓ 1.0 A
Dimensions ( W x D x H )3.9 x 3.9 x 3.5 in
(100 x 100 x 89.5 mm)
Wireless StandardsWi-Fi 6
IEEE 802.11a/n/ac/ax 5 GHz
IEEE 802.11b/g/n/ax 2.4 GHz
Frequency2.4 GHz and 5 GHz
Signal RateAX1800
5 GHz: Up to 1201 Mbps
2.4 GHz: Up to 574 Mbps
Transmit PowerFCC: <30 dBm(2.4 GHz), <30 dBm(5 GHz)
CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz)
Wireless SecurityWPA-PSK/WPA2-PSK/WPA3 Personal encryptions
Multi-SSID2× 5 GHz Multi-SSID
2× 2.4 GHz Multi-SSID
Quality of ServiceWMM
WAN TypeDynamic IP/Static IP/PPPoE
ManagementLocal Management, TAUC Cloud Management, TR-069 (TR-098/TR-181), TR-111, TR-143
Firewall SecuritySPI Firewall
ProtocolsIPv4 IPv6
Advanced FeaturesParental Controls, QoS (Quality of Service), Address Reservation, Port Forwarding, WiFi Schedule
Working ModesRouter Mode
Access Point Mode
Smartphone/Tablet RequirementsAndroid 4.4 or later iOS 9.0 or later
CertificationsCE, FCC, Wi-Fi CERTIFIED 6™, Wi-Fi CERTIFIED EasyMesh™
EnvironmentOperating Temperature: 0℃–40℃ (32℉–104℉) Storage Temperature: -40℃–60℃ (-40℉–140℉) Operating Humidity: 10%–90% non-condensing Storage Humidity: 5%–90% non-condensing
