  • Tycon Power Two 802.3at to one 4 Pair 60W Gigabit Passive PoE converter

Tycon Power Two 802.3at to one 4 Pair 60W Gigabit Passive PoE converter

(0) No Reviews yet
  • SKU: POE-CONV-2AF-AT
  • Manufacturer: Tycon Systems
  • Data Sheet: Download
  • Availability: Call for Inventory Status Email me when this product is in stock!
$49.95

Specifications POE-CONV-2AF-AT

InputQty 2 802.3af Mode A or 48V Passive POE
Output802.3at Mode A 48V 30W, 2 Pair PoE
Input ConnectorShielded RJ45 Socket x2
Output ConnectorShielded RJ45 Socket
Load Regulation5%
Line Reg, Ripple, Noise1%
Ethernet Speed10/100/1000MB, GigE, Gigabit
LEDBlinking Red: Only 1 input powering / Solid Red: Two inputs powering / Solid Green: Output is active with device plugged in
Isolation Voltage1500VDC
Isolation Resistance100M Ohms Minimum
Operating Temperature-30 to +60°C (-22 to +140°F)
Operating Humidity5% to 90% non-condensing

Tycon Power Systems

The POE-CONV-2AF-AT are unique Gigabit PoE converters which allow a customer to use existing PoE switches to provide PoE+ functionality. They work by combining two 802.3af ports into one 802.3at port.

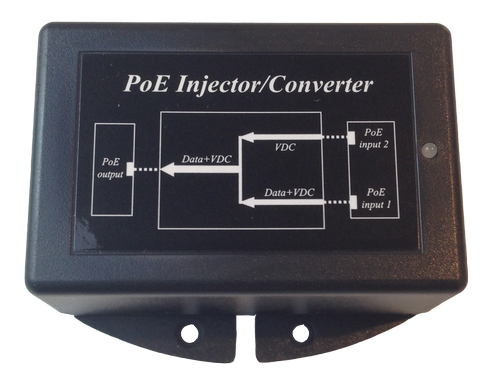

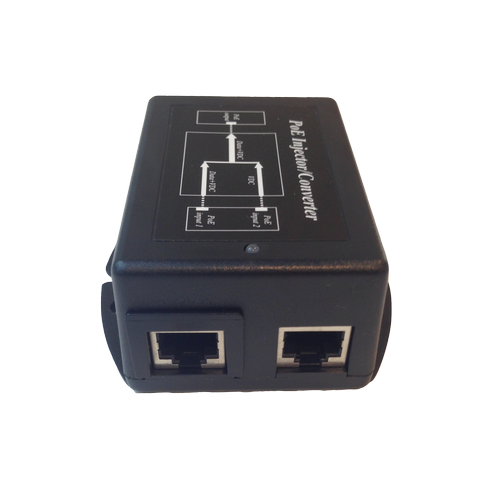

There are two RJ45 sockets for input and one RJ45 socket for the output. One input accepts Data and Power, the second input accepts only Power. The design is isolated so input and output are isolated. The devices include protections for short circuit and overload.
