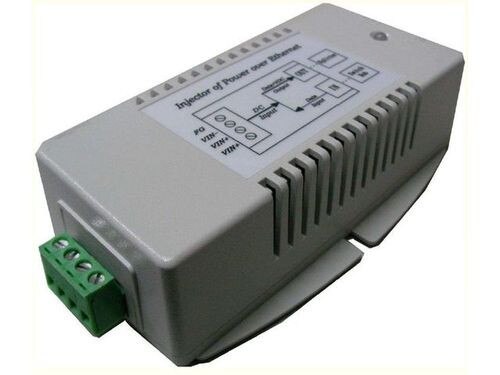

Tycon Power Gigabit 36-72VDC IN56VDC OUT 50W Hi Power DC to DC Converter and POE inserter
US$66.45 US$69.95
- SKU: TP-DCDC-4848G-HP
- Manufacturer: Tycon Systems
- Data Sheet: Download
Product Information
Tycon Power TP-DCDC-4848G-HP
Gigabit 36-72VDC IN56VDC OUT 50W Hi Power DC to DC Converter and POE inserter
The TP-DCDC-4848G-HP DC to DC converters offered by Tycon Power Systems are a low cost and high reliability solution for those requiring 48VDC Power Over Ethernet voltage from a +/-48V battery system.
They have an integrated Gigabit Passive PoE injector to apply the regulated 48VDC to the CAT5 Ethernet cable. The input voltage must be between 36VDC and 72VDC.
They accept data-in to a shielded RJ45 Jack and provide data-out and PoE power on the shielded RJ45 output jack. They work by supplying power on the Ethernet pins 4,5(V+) and 7,8(V-).
They have various protections for surge, short circuit and overload. The units have power output of 50W.
Specifications
Specifications TP-DCDC-4848G-HP
| DC Input Voltage | +/- 36VDC - 72VDC |
| DC Output Voltage | 56V (Passive |
| Data in & Data/POE Output Connector | RJ45 (shielded) |
| Output Current (max) | 0.9A |
| Output Power (max) | 50W |
| Self Consumption Power | 1W |
| Efficiency (min) | 75% |
| Operating Temp | -30 to +60deg C (-22 to +140deg F) |
| Operating Humidity | 5% - 90% |
| Dimensions (LxWxH) | 125 x 75 x 38mm (4.9 x 3 x 1.5”) |
| Weight | 300g (10.6oz) |
