Tycon Power 18-36VDC Input, 56VDC 4.46A 250W Output Voltage Converter

$‎199.45 $‎209.95
  • SKU: TP-VRHP-2456-250
  • Manufacturer: Tycon Systems
  • Data Sheet: Download
  • Availability: Direct Ship Item Ships direct from manufacturer usually same day Email me when this product is in stock!
$‎199.45 $‎209.95

Specifications TP-VRHP-2456-250

DC Input Voltage Range+/-18 to 36VDC
DC Voltage Output56VDC@4.46A
Maximum Power250W
Input/Output IsolationIsolated
Efficiency>83%
Load/Line 5% / 1%
Ripple/Noise 2% / 5%
Isolation1500VDC Min. 100M Ohms Min
Wire Gauge12AWG Max
ProtectionsShort Circuit, Overvoltage, Overload
Operating Temp-22deg;F to 149deg;F (-30deg;C to +65deg;C)
Operating Humidity0 to 90% RH
Size5.9 x 7.4 x 1.7" (150 x 187 x 43.6mm)
Weight2.6lbs (1.2kg)
Warranty3 Years

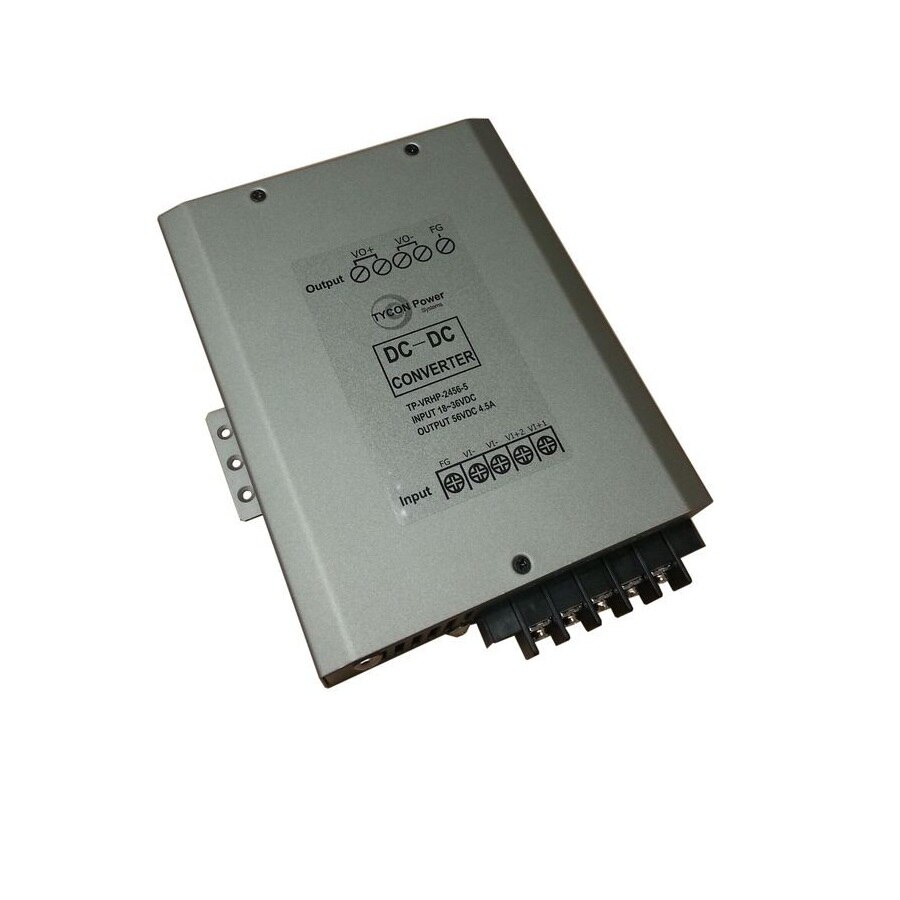

Tycon Power TP-VRHP-2456-250

18-36VDC Input, 56VDC 4.46A 250W Output Voltage Converter

The TP-VRHP-2456-5 is a high power 250W voltage converter/regulator which accepts an input of plus or minus 18VDC to 36VDC and provides a regulated output of 56VDC @ 4.46A 250W. These units are perfect for providing 56VDC voltage from 24VDC battery banks. Input and outputs are isolated, wire terminals for wire up to 12AWG. Operates from -30 to +65 deg C.


Features:

  • High Output, Short Circuit Protected
  • Metal Enclosure, DIN rail mounting
  • Industrial Temperature Operation
  • Most Models Isolated Input to Output
  • Low Voltage Disconnect

Applications:

  • Security Systems
  • Telecom Applications
  • Remote Power Systems
  • Wireless Base Stations
