Ubiquiti FiberPoE G2 - for Outdoor PoE Devices
|Dimensions||196.4 x 93.5 x 32.4 mm |
( 7.73 x 3.68 x 1.28")
|Weight||288 g (10.2 oz)|

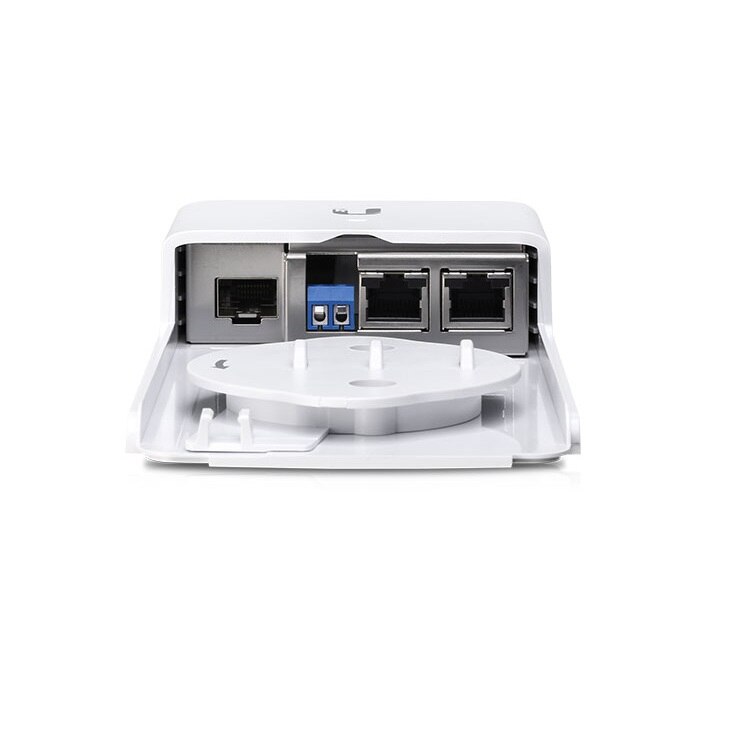

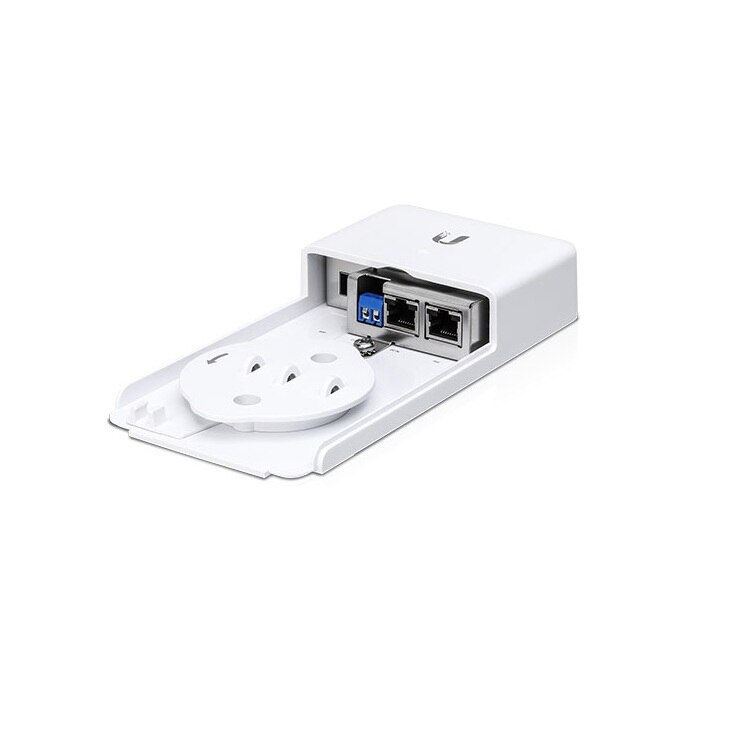

|Interface Connections|| (1) 1 Gbps SFP Port |
(1) DC Terminal Block
(1) DC RJ45 Port DC Injection
(1) 1000 Mbps Ethernet PoE Port1
|Typical Power Consumption||1.5W|
|Power Method||DC Terminal Block, 2-Wire, 24VDC or 50VDC DC In RJ45 Port, 2-Pair (4, 5+; 7, 8-) (24VDC Input), or 4-Pair (24VDC or 50VDC Input) Passthrough PoE RJ45 Port, 2-Pair (4, 5+; 7, 8-) (24VDC Input), or 4-Pair (24VDC or 50VDC Input) PoE Passthrough|
|PoE Output||PoE RJ45 Port, 2-Pair (4, 5+; 7, 8-) (24VDC), or 4-Pair (24VDC or 50VDC) PoE|
|DC Output||Terminal Block, 2-Wire (24VDC or 50VDC)|
|Input DC Voltage||16 to 57V|
|Surge Protection||Built-In High-Current Gas Discharge Tube for DC Terminal Block and PoE Port|
|LED|| White: Power On |
Blue (Flashing): Activity
|Operating Temperature||-40 to 60° C2 (-40 to 140° F)|
|Operating Humidity||10 to 95% Noncondensing|
|ESD/EMP Protection||± 24kV Contact / Air for Ethernet|
|Certifications||CE, FCC, IC|

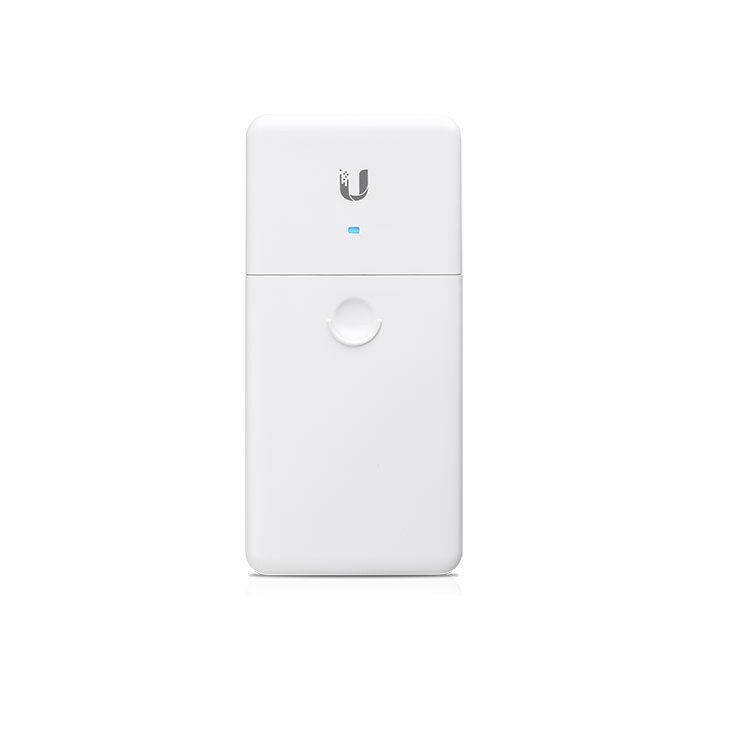

Ubiquiti Networks F-POE-G2
FiberPoE Gen2 Optical Data Transport Outdoor PoE
Overcome PoE limitations with the next-generation FiberPoE™, model F-POE-G2. The FiberPoE Gen 2 is a low-cost solution for outdoor deployments that require long-distance runs to reach the PoE device. Deployments with the FiberPoE Gen 2 provide significant EMI and ESD protection over typical PoE installations. The FiberPoE Gen 2 also features a durable, weatherproof form factor and enhanced surge protection.
PoE is ideal for indoor or short-run installations. However, for outdoor, long-distance installations, PoE becomes vulnerable to EMI and is limited to 100 meters with correlated power loss. With the FiberPoE Gen 2, data and power are transported on separate cables to greatly improve data integrity and enable much longer cable runs. The FiberPoE Gen 2 provides Gigabit bi-directional data transport between twisted-pair Ethernet cable and fiber optic cable, and injects DC power to the Ethernet cable for passive PoE. Use one FiberPoE Gen 2 device as an Fiber-to-Ethernet Converter, or a pair of FiberPoE Gen 2 devices to create a Fiber Bridge.
Featuring a built-in high-current Gas Discharge Tube (GDT) for the DC terminal block and PoE port, the FiberPoE Gen 2 delivers enhanced surge protection. The added GDT support effectively protects against lightning and other power surges.
The FiberPoE Gen 2 supports a 1G SFP module and 24V or 50V power from a DC power cable or PoE cable.
- Reliable Long-Distance Gigabit PoE Runs
- Enhanced ESD Protection and EMI Reduction
- Dependable 24V/50V Passive PoE Transport
