Ubiquiti Networks Door Lock Relay Cable
US$129.00
- SKU: UACC-Cable-DoorLockRelay-1P
- Manufacturer: Ubiquiti Networks
- :Download
Product Information
Ubiquiti Networks UACC-Cable-DoorLockRelay-1P
Door Lock Relay Cable

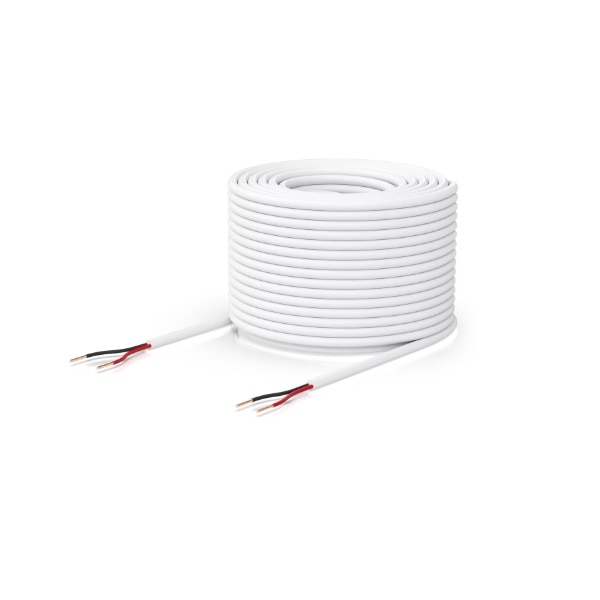

A 500-foot (152.4 m) spool of one or two-pair, low-voltage cable.
- 1-Pair Relay Cable: Connects an electric/magnetic lock to an Access Hub
- 1-Pair Relay Cable: — (2) 18 AWG conductors for an electric/magnetic lock
- Cable length 152.4 m
Specifications
Specifications UACC-Cable-DoorLockRelay-1P
| Weight | UACC-Cable-DoorLockRelay-1P: 4.58 kg (10.1 lb) |
| Cable length | 152.4 m (500 ft) |
| Jacket OD | UACC-Cable-DoorLockRelay-1P: 4.2 mm (0.17") |
| Jacket material | Thermoplastic elastomer (TPE) |
| Jacket color | White |
| Conductor wire gauge | UACC-Cable-DoorLockRelay-1P: 18 AWG |
| Insulation material | Semi-rigid polyvinyl chloride (SR-PVC) |
| Insulation color | UACC-Cable-DoorLockRelay-1P: black/red (18AWG) |
| Number of conductors | UACC-Cable-DoorLockRelay-1P: 2 |
| Conductor material | Solid bare copper |
| Max. pull tension | UACC-Cable-DoorLockRelay-1P: 16.4 kgf |
| Min. bend radius | UACC-Cable-DoorLockRelay-1P: 33 mm (1.3") |
| Conductor DCR | UACC-Cable-DoorLockRelay-1P: 23.2 ohm/km (18AWG) |
| Voltage | 36V DC |
| Flame rating | VW-1 |
| Current rating | 18AWG: 2A for 500 ft length 22AWG: 1A for 500 ft length |
| Storage temperature | -45 to 65° C (-40 to 149° F) |
| Operating temperature | -45 to 65° C (-40 to 149° F) |
