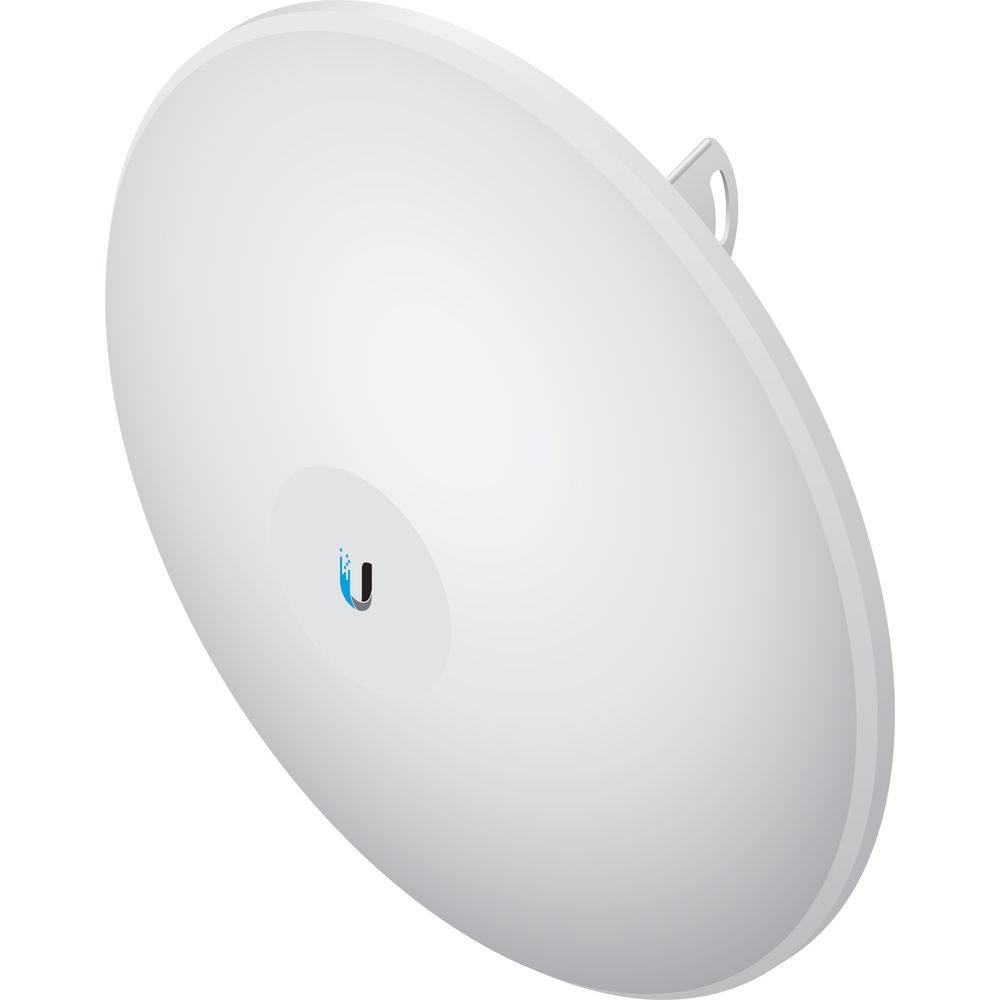

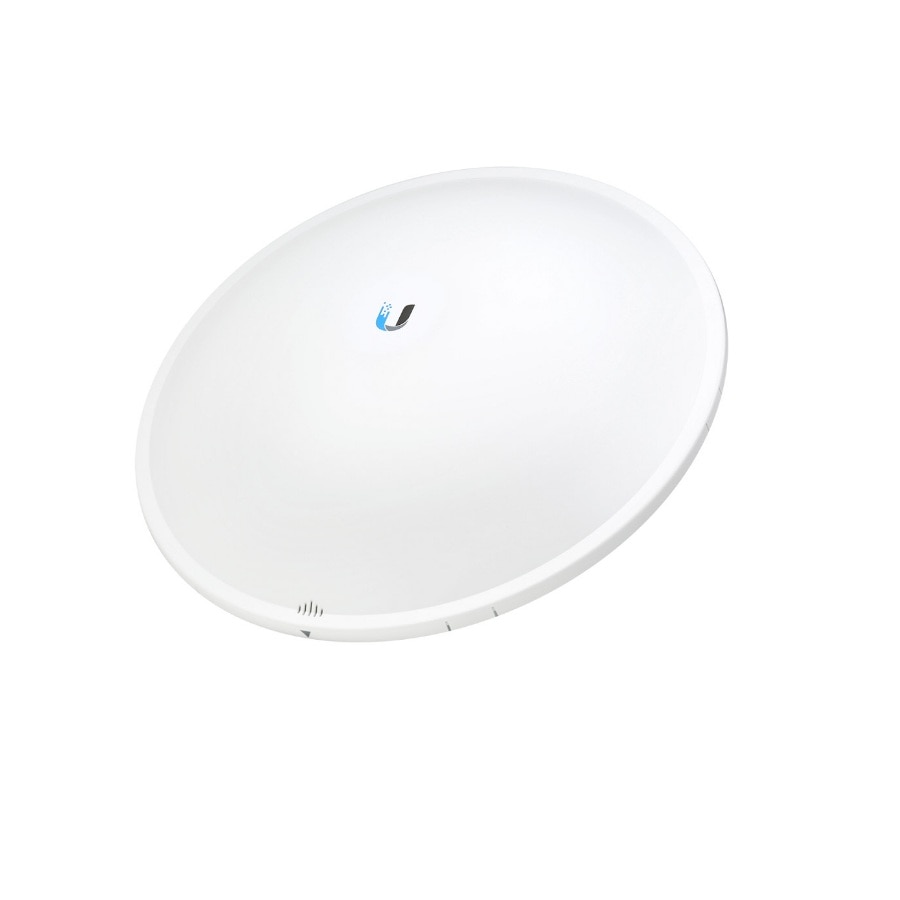

Ubiquiti PowerBeam 5Ghz AC Bridge, 500mm

(0) No Reviews yet
  • SKU: PBE-5AC-500-US
  • Manufacturer: Ubiquiti Networks
  • Data Sheet: Download
  • Availability: 43 In Stock
$159.00

Specifications PBE-5AC-500

Processor SpecsAtheros MIPS 74Kc, 720 MHz
Memory128 MB DDR2, 16 MB Flash
Networking Interface(1) 10/100/1000 Ethernet Port
Wireless ApprovalsFCC, IC, CE
RoHS ComplianceYes
Dimensions520 x 520 x 308 mm (20.47 x 20.47 x 12.13")
Weight2.35 kg (5.18 lb)
Power Supply24V, 0.5A Gigabit PoE
Power MethodPassive PoE (Pairs 4, 5+; 7, 8 Return)
Supported Votlage Range20-26VDC
Max. Power Consumption8.5W
Gain27 dBi
Operating Frequency
Wordlwide
USA

5150 - 5875 MHz
5150 - 5250 MHz
Wind Loading264.6 N @ 96 km/h (60 lbf @ 60 mph)
Wind Survivability96 km/h (60 mph)
LEDs(1) Power, (1) LAN, (4) WLAN
Signal Strength LEDsSoftware-Adjustable to Correspond to Custom RSSI Levels
Channel Sizes
PtP Mode
PtMP Mode

10/20/30/40/50/60/80 MHz
10/20/30/40 MHz
PolarizationDual Linear
EnclosureOutdoor UV Stabilized Plastic
MountingPole-Mount Kit Included
ESD/EMP ProtectionAir: ± 24 kV, Contact: ± 24 kV
Operating Temperature-40 to 70° C (-40 to 158° F)
Operating Humidity5 to 95% Noncondensing
Salt Fog TestIEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5`
Vibration TtestIEC 68-2-6
Temperature Shock TestIEC 68-2-14
UV TestIEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4
Wind-Driven Rain TestETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5

PowerBeam ac PBE-5AC-500-US (US Version)

High-Performance airMAX®ac Bridge

Incorporating a dish reflector design with proprietary airMAX®ac technology, the PowerBeam™ac is ideal for CPE deployments requiring maximum performance.

Integrated Radio Design

Ubiquiti’s InnerFeed™technology integrates the radio into the feedhorn of an antenna, so there is no need for cables to connect the radio to the antenna. This improves performance because it eliminates cable losses.

Performance Breakthrough

airMAX®ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance.

Superior Processing

Ubiquiti's airMAX®engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.

Incredible Antenna “Beam” Performance

The form factor of the PowerBeam™ac features the highest gain for its size. The PoweBeam ac’s excellent beam directivity provides the best performance in high-noise environments.

Advanced Software Technology

Ubiquiti’s airMAX®technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.
