  • Ubiquiti 5GHz PowerBeam ac Gen2 25dbi (5-Pack)

Ubiquiti 5GHz PowerBeam ac Gen2 25dbi (5-Pack)

(0) No Reviews yet
  • SKU: PBE-5AC-GEN2-5-US
  • Manufacturer: Ubiquiti Networks
  • Data Sheet: Download
  • User Guide: Download
  • Availability: 115 In Stock (updated live)
$580.00

Specifications PBE‑5AC‑Gen2-5

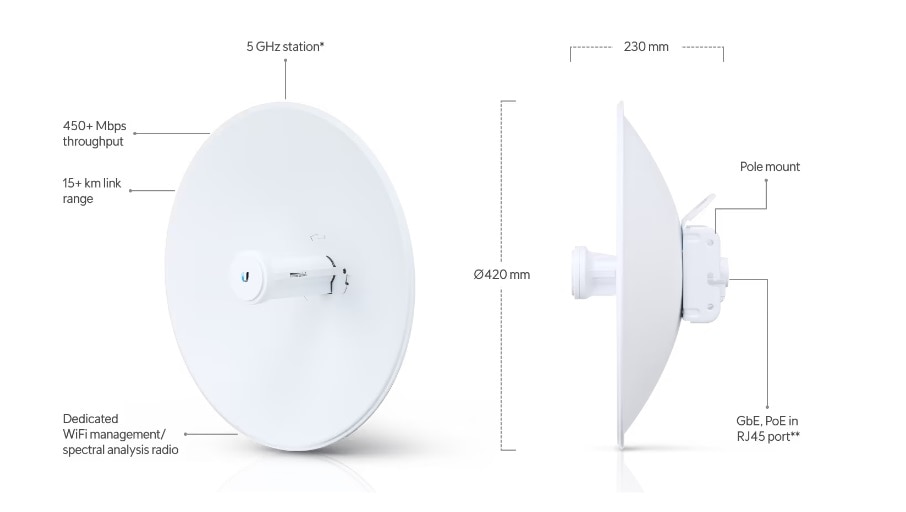

Dimensions 420 x 420 x 230 mm (16.54 x 16.54 x 9.06")
Weight 2.22 kg (4.89 lbs)
Power Supply 24V, 0.5A Gigabit PoE Adapter (Included)
Max. Power Consumption 8.5W
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Supported Voltage Range 20 to 26VDC
Operating Frequency Worldwide 2412 - 2472 MHz 5150 - 5875 MHz
USA: U-NII-1 5150 - 5250 MHz
USA: U-NII-2A 5250 - 5350 MHz
USA: U-NII-2C 5470 - 5725 MHz
USA: U-NII-3 5725 - 5850 MHz
Gain 25 dBi
Networking Interface (1) 10/100/1000 Ethernet Port
Processor Specs MIPS 74Kc
Memory 64 MB
LEDs Power, Ethernet, (4) Signal Strength
Channel Sizes PtP Mode 10/20/30/40/50/60/80 MHz PtMP Mode 10/20/30/40 MHz
Enclosure Characteristics Antenna Feed Outdoor UV Stabilized Plastic Dish Reflector Powder-Coated SPCC
Mounting Pole-Mounting Kit (Included)
Wind Loading 380 N @ 200 km/h (85.4 lbf @ 125 mph)
Wind Survivability 200 km/h (125 mph)
ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
Operating Temperature -40 to 70° C (-40 to 158° F)
Operating Humidity 5 to 95% Noncondensing
RoHS Compliance Yes
Salt Fog Test IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
Vibration Test IEC 68-2-6
Temperature Shock Test IEC 68-2-14
UV Test IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4
Wind-Driven Rain Test ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
Certifications CE, FCC, IC

Ubiquiti Networks 5GHz PowerBeam ac Gen2 25dbi 5 Pack

High-Performance airMAX® ac Bridge

Incorporating a dish reflector design with proprietary airMAX® ac technology, the PowerBeam® AC is ideal for CPE deployments requiring maximum performance.

Management Wi-Fi Radio

The PowerBeam® AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

Improved Mounting and Surge Protection

Featuring enhanced protection against ESD events, the PowerBeam® AC offers a more robust mount with a convenient lifting loop or handle.

Integrated Radio Design

Ubiquiti’s InnerFeed® technology integrates the radio into the feedhorn of an antenna, so there is no need for cables to connect the radio to the antenna. This improves performance because it eliminates cable losses.

Plug and Play Installation

The PowerBeam® AC requires no tools for assembly; only a single wrench is required for pole-mounting.

Performance Breakthrough

airMAX® ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance.

Superior Processing

Ubiquiti's airMAX® engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.

Incredible Antenna “Beam” Performance

The form factor of the PowerBeam® AC features the highest gain for its size. The PowerBeam AC’s excellent beam directivity provides the best performance in high-noise environments.

Now with airOS®8

airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.
