Product Information

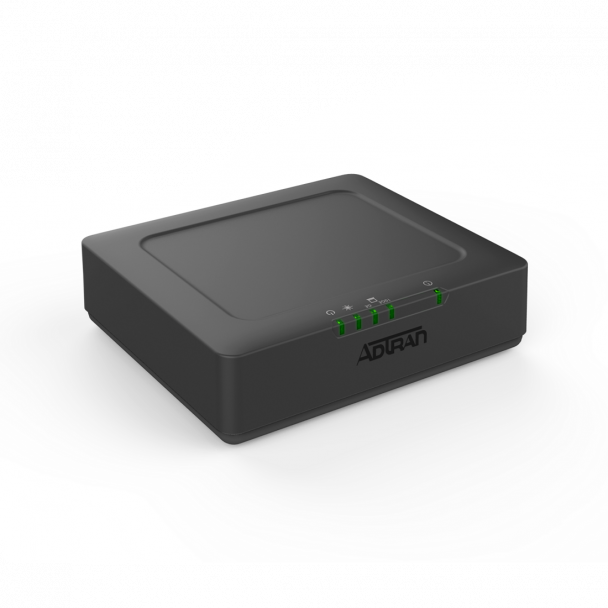

Adtran 1287830F1 FTTP
The 621 is an indoor, 10 Gbps XGS-PON ONT featuring a 10GE interface.
The Adtran 621 SFU ONT provides high-bandwidth, symmetric gigabit access for the smart home. The 621 10G SFU ONT leverages XGS-PON technology for delivering SLA-based symmetric 1/2.5/5/10G services over copper or fiber networks. The 621 supports IPTV and VoIP, enabling premium residential services. Leveraging the ADTRAN Mosaic OS modular network element software, the 621 10G SFU ONT is software defined network (SDN) managed, allowing for zero-touch service orchestration and flexible interoperability.
Features:
- RJ-45 for 100m/1/2.5/5/10G Base-T
- 10 Gbps Symmetric Throughput
- Ethernet Port Auto Negotiation or Manual Configuration
- MDI/MDIX Automatically Sense
- Hardware Priority Queues on the Downstream Direction in Support of CoS
- Ethernet Service Support: 02.1D Bridging, 802.1x Authentication, Eight Queues, Strict Priority and/or Weighted Fair Queue Schedulers, Configurable to EtherType and TPID for Service Flexibility, VLAN IDs 0 – 4095; EVC Configurable in the Range of 2 – 4,094, Virtual Switch Based on 802.1q VLAN, VLAN Tagging/Detagging, VLAN Stacking (Q-in-Q) and VLAN Translation, Class of Service Based on VLAN-ID, 802.1p Bit, Marking/Remarking of 802.1p, Supports 9k Jumbo Frame, DHCP Client or Static IP Configuration
Specifications
Specifications 1287830F1
| Video Services Support | Mediaroom Bridged Video Models, Minerva Bridged Video Models, IGMP v2/v3 Snooping |
| Mosaic Application Support | Mosaic Activate, Mosaic Subscriber Insight |
| Working Environment Temperature | 32° F to 104° F (0° C to +40° C) |
| Network Interface | XGS-PON Optical Interface BOSA on Board (BoB), Compliant With ITU-T G.9807 XGS-PON Standards, Class B+ Optics Support, Class G (XGS-PON) Optics Support, DBA (Dynamic Bandwidth Allocation) |
| OAM | OMCI (Embedded Operations Channel Interface) Per ITU-T G.988 and Open OMCI Standards, 15 Min Rolling Counters, Dying gasp alarm |
| Regulatory | ETSI EN 300 019-1-3.cl3.2 (V2.3.2) for ONT and Power Supply, ETSI EN 300 119 for ONT and Power Supply, ETS 300 753 for ONT and Power Supply, CISPR 32 Class B, FCC CFR 47 Part 15 Class B |
