DUOPACK Jirous 2' 29 dBi 5GHz Dual Polarity Parabolic Antenna with Radome (RPSMA)
US$599.00
- SKU: JRC-29DD MIMO RPSMA DuoPack
- Manufacturer: Jirous
- Data Sheet: Download
Product Information
DUOPACK Jirous JRC-29DD MIMO (RPSMA)

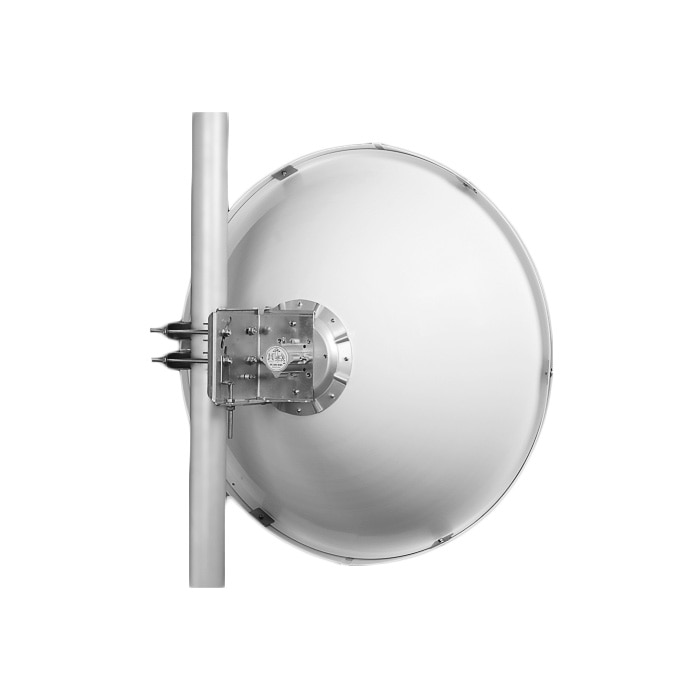

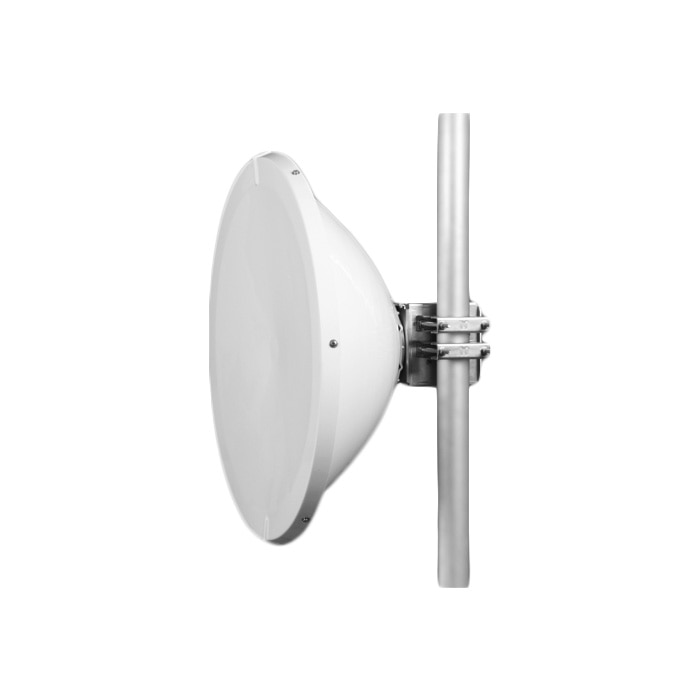

2' 29 dBi 5GHz High Performance Dual Polarity Parabolic Antenna with Radome-DUOPACK
The radiator is internally treated by high-frequency technology "Hydrophobic coating" which increases resistance against humidity.
2 x 5ghz dishes included in one DUOPACK
Features:
- Dual-polarization antenna, horizontal/vertical or 2x45° polarization
- Deep dish increases isolation among antennas on a mast
- New concept with extended frequency band
- High front to back ratio
- Easy mounting GentleBOX JR-200 or JR-250 Alu
- Direction link for medium distance or short link in difficult conditions
- Precise elevation settings
- Possible to count attainable distance from section of calculation
- Radom (plastic parabola cover)is included in the price
Specifications
Specifications JRC-29DD MIMO Duopack
| Frequency range | 4.9 - 6.4 GHz |
| Gain | 29.0 ±1 dBi |
| VSWR | 5.1 - 5.9 GHz ≤ 1.4 |
| Front to back ratio | ≥ 49 dB |
| Beamwidth -3 dB | 5.5° |
| Polarization | linear, horizontal/vertical or 2x45° |
| Port to port isolation 5.1 - 5.9 GHz | ≥ 25 dB |
| Connector | R-SMA |
| Parabola | ø 680 mm, Aluminium alloy with baking paint |
| Radome | UV stabilized ABS |
| Installation for mast | ø 27 - 74 mm right or left side |
| Weight of antenna | 5.8 kg (12.8 lbs.) |
