Ubiquiti Ethernet Surge Protector Gen 2

(0)No Reviews yet
  • SKU: ETH-SP-G2
  • Manufacturer: Ubiquiti Networks
  • Data Sheet: Download
  • Quick Guide:Download
276 in stock
College Station
276 In stock

Product Information

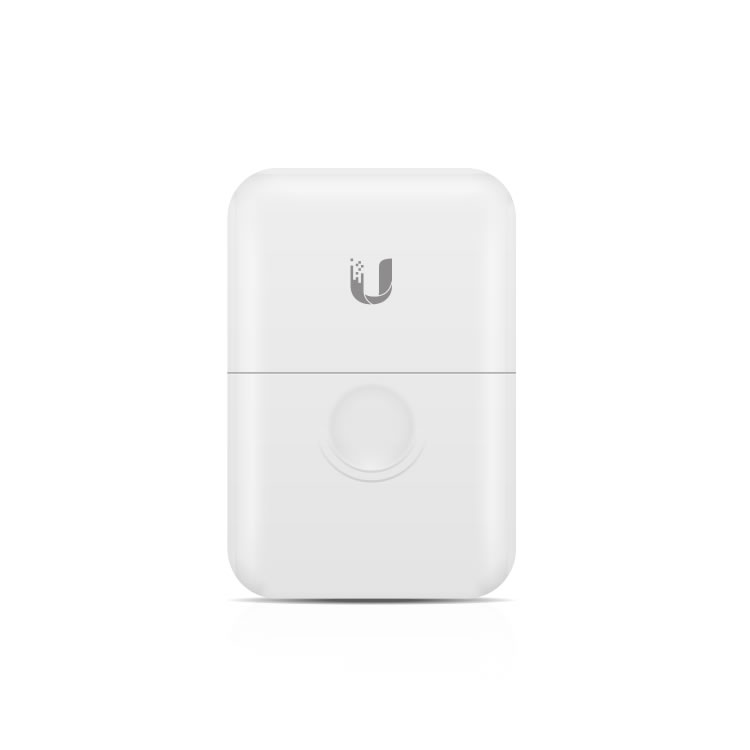

Ubiquiti ETH-SP-Gen2

Ubquiti Ethernet Surge Protector Gen 2

The Ubiquiti Ethernet Surge Protector Gen 2 provides all of the features of the first generation, but with significantly better surge protection performance.

ESD Protection for Outdoor High-Speed Networks

Introducing the Ethernet Surge Protector, model ETH-SP-G2, from Ubiquiti Networks. The ETH-SP-G2 is a cost-effective solution for protecting sensitive, third-party Ethernet devices from damaging electrostatic discharge and surges. Since all Ubiquiti airMAX devices already have robust ESD protection built in, adding the ETH-SP-G2 to the installation provides an additional layer of protection to the network.

The ETH-SP-G2 is engineered to protect any Power-over-Ethernet (PoE) or non-PoE device with connection speeds of up to 1 Gbps. Two passive, surge-protected RJ45 connections provide maximum equipment compatibility.

Ideal for WISP Networks

All Ubiquiti airMAX devices are equipped with ESD protection. However, to protect third-party devices, the ETH-SP-G2 provides essential ESD protection to guard against costly service calls and downtime.

For example, protect your subscriber networks by installing the ETH-SP-G2 next to CPE devices. Damaging ESD attacks and surges will be diverted to the ETH-SP-G2 and safely discharged into the ground, so the CPE and other network devices are protected.

Specifications

Specifications ETH-SP-Gen2

Dimensions 91 x 61 x 32.5 mm
Weight 80g
Interface Connections 2x RJ45
ESD/EMP Protection Absorbing Transient Current with Responce to Surge Voltage from 100V/s to 1kV/us
DC SpartOver Voltage - 90V @ 100V/s
Maximum Impulse Sparkover Voltage - 700V @ 1kV/us
Discharge Current 5kA Maximum / 0.5kA Normal
Maximum Insulation Resistance 1Gohm @50V
Maximum Capacitance 1.0 pF @ 1MHz
Data Line Protection RJ45 10/100/1000 Ethernet
IEEE 802.3af POE Support Yes
Shock and Vibration Certification ETSI300-019-1.4 Standard
Operating Temperature -30 to 65 C
Operating Humidity 10 to 90% Noncondensing
