LightSaber 20“x16"x8" industrial NEMA enclosure with cooling fans, IP55 Rated|Grey

  • SKU: LSO-OD-201608
  • Manufacturer: LightSaber
  • Data Sheet: Download
  • Spec Sheet: Download
  • Availability: 52 In Stock    (updated live)
    In stock at College Station
US$‎249.00

Pole Mount Kit (click to select)

Specifications LSO-OD-201608

Physical
Model nameLSO-OD-201608
Protection ClassIP55
Cabinet TypePole-Mount with U Bolt (or hose clamps) or Wall-Mount
ColorGrey RAL7035
MaterialCold-rolled Steel
Unit Dimension(WxDxH)15.94 x 8.66 x 19.68 inches (without lock and mounting bracket)
Unit Weight(lbs.)29.75
Internal Depth (Front door to Back Mounting Plate7 inches
Rail to Rail DepthN/A
Shipping Dimension(WxDxH)17.72 x 11.02 x 222.05 inches
Shipping Weight(lbs.)31.96
Electrical
CoolingAC110V Cooling Fan x 1 (with tem. Controller)
GroundingGrounding Wire
Power sockets4 x 120VAC 15A outlets(surge protected,with cable terminals,0.5 meter)
OtherN/A
Certifications
SafetyCE
ApprovalsDIN41491, DIN41494, EIA/ECA-310-E, IEC 60297-3-100, RoHS
Warranty
Product Warranty1 Year

LightSaber Optics LSO-OD-201608

LightSaber 20“x16"x8" industrial NEMA enclosure with cooling fans, IP55 Rated | Grey

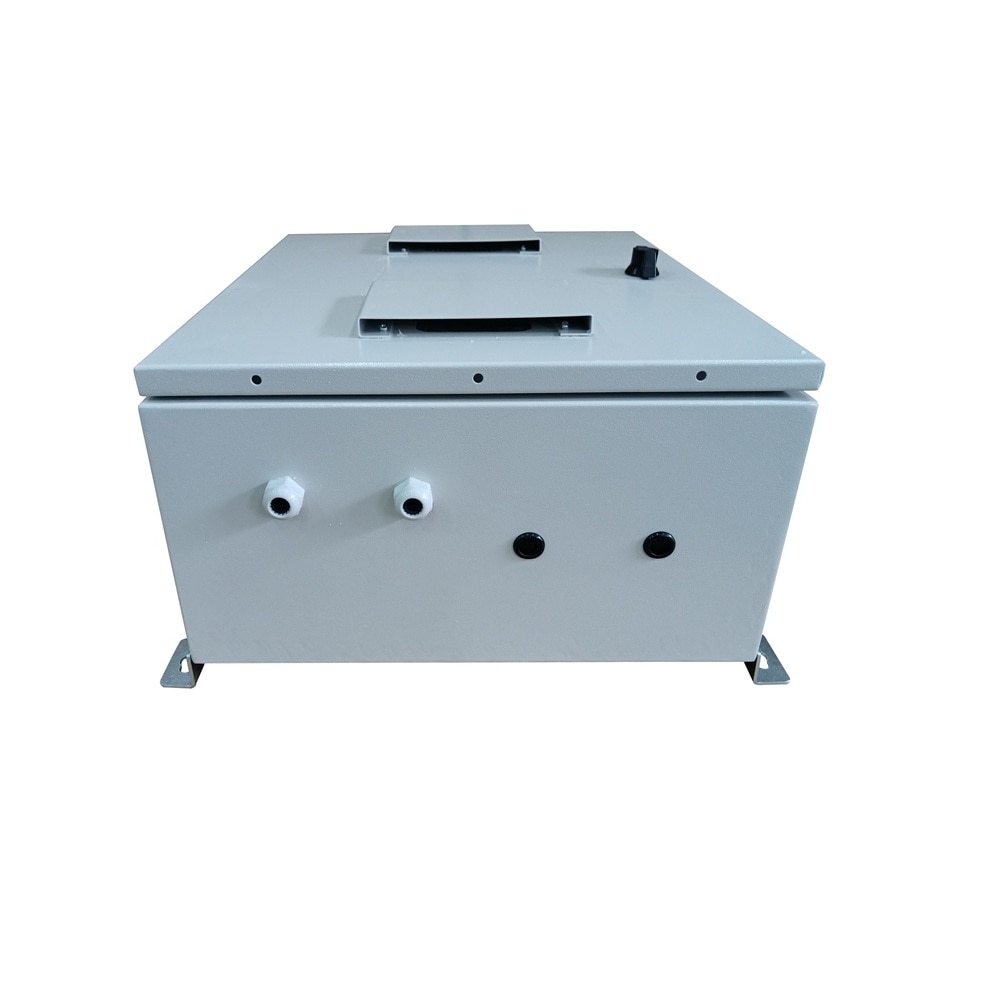

"The weatherproof NEMA enclosure with dimension 20"" x 16"" x 8"" that is ideal for both indoor and outdoor applications. Constructed from high quality steel, it is well suited for high temperature or corrosive environments,the enclosure can be wall mounted or pole mounted with the optional pole mounting hardware kit. On the bottom of the enclosure, it features holes for mounting lightning Protectors or Cable glands.

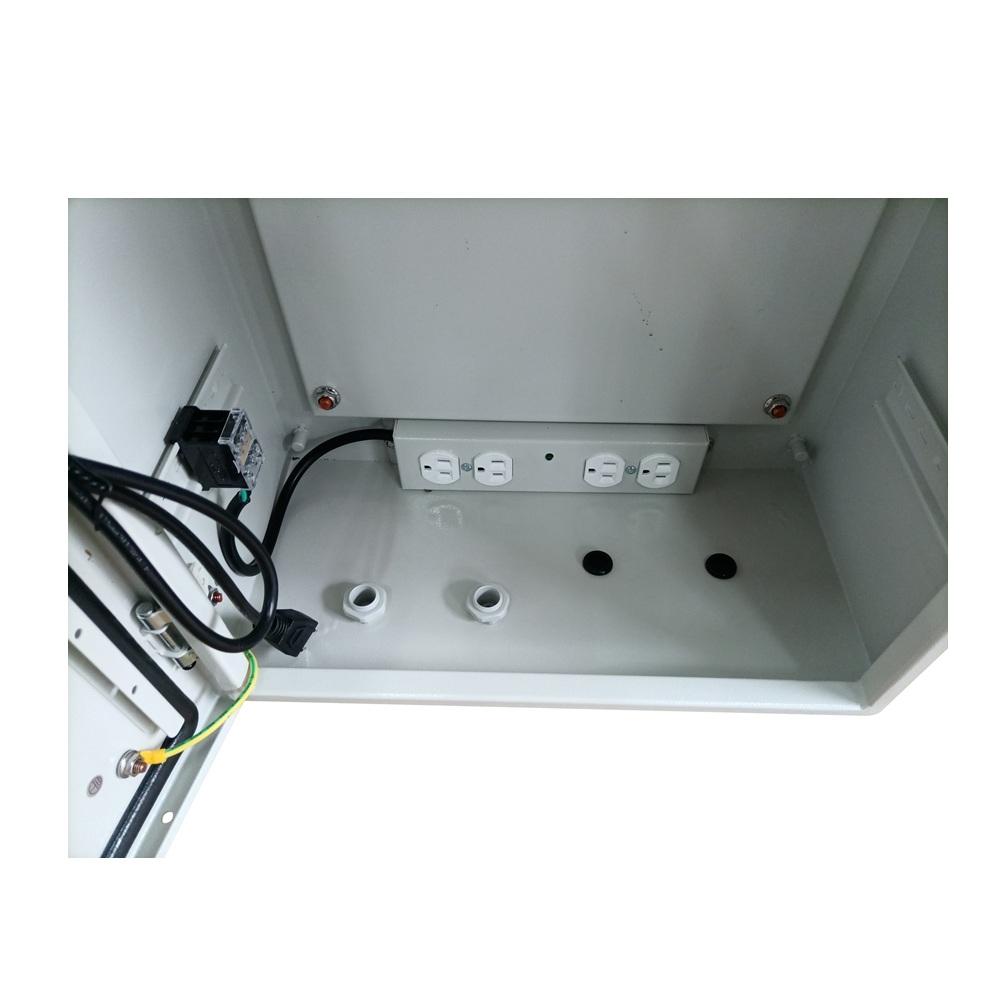

The steel mounting plate can mount equipments or devices and also features 4pcs standard surge protected 120 VAC outlets to supply power to internal equipment.

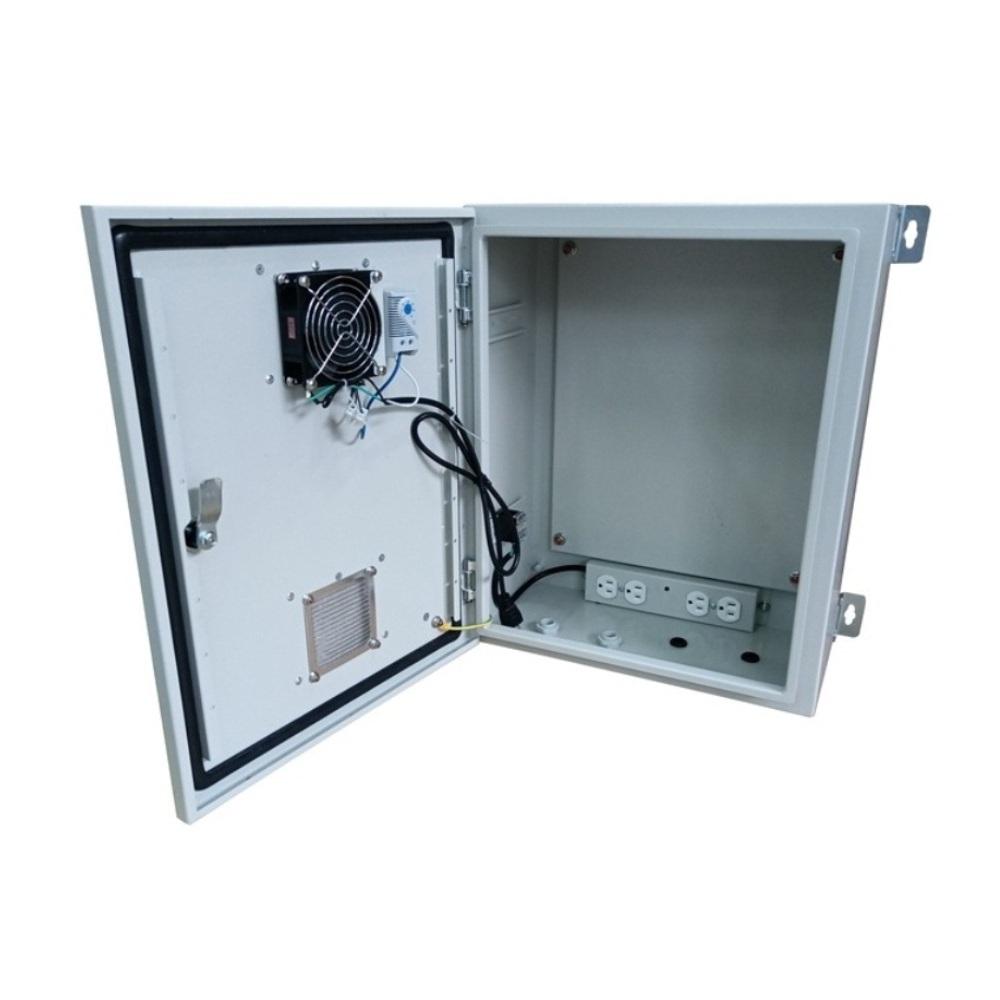

To help ensure trouble-free operation of electronic equipment, proper operating temperatures inside an enclosure needs to be maintained. With the built-in AC110V Cooling Fan and temperature controller, internal temperatures can be better maintained. This model is ideal in hot environments.

Surge protection is provided as a standard feature on the internal AC outlets. In addition, the unit can accept up to two optional bulkhead-mount N-Type lightning protectors to protect the coaxial cable runs."


Features:

  • Front door opening access,with locks for security
  • Weatherproof Nema 4X / IP55, UV resistant
  • Back mounting plate with surge protected duplex 120 VAC Outlets
  • Built in DIN Rails( 4pcs) on the sides for mounting devices
  • AC110V Cooling Fan with temperature controller for cooling the cabinet if necessary
  • Cable entry holes with cable gland on the bottom

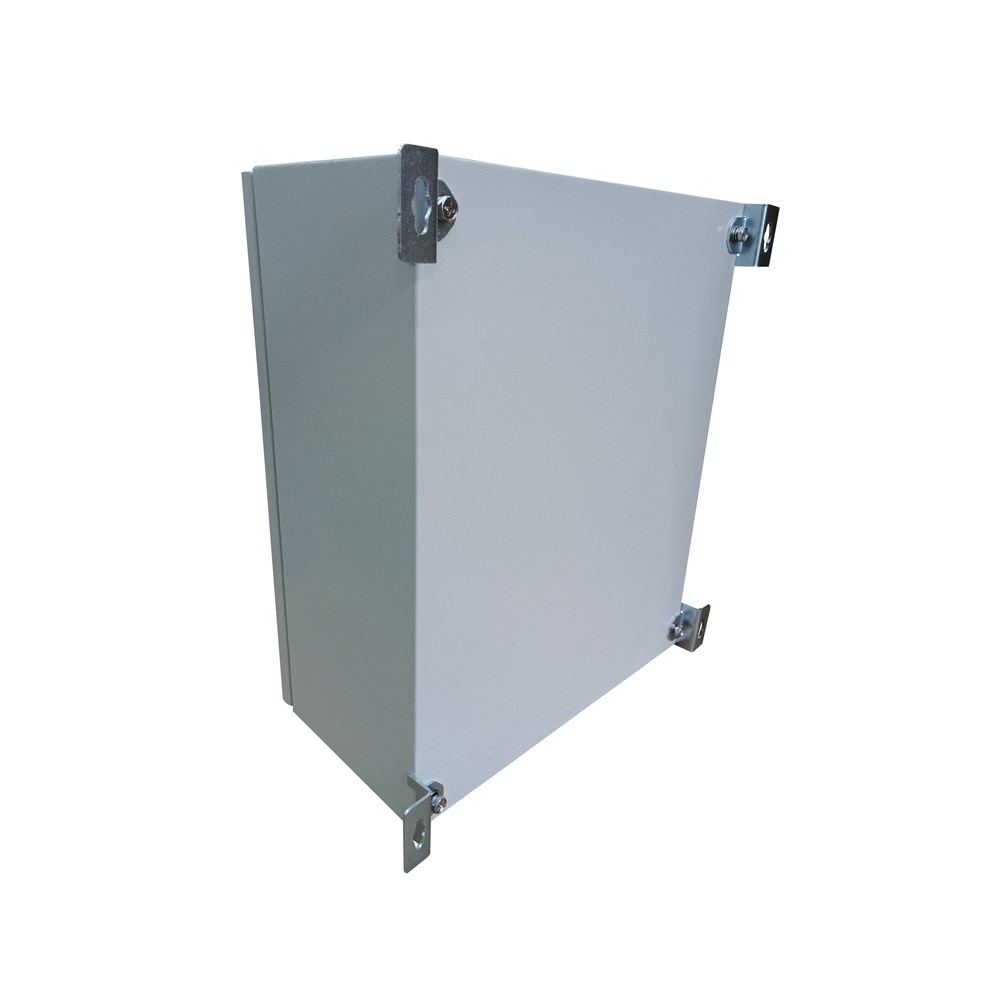

  • Wall mountable(standard hardware) and Pole Mountable (optional Mounting Hardware)

Application:

  • Harsh environment,rapid deployment and hotspot installations
  • Indoor and outdoor installations
  • Remote Wireless LAN WiFi equipment installations
  • Protection of equipment from theft or damage

Also comes with:

  • 1x AC110V Cooling fan (with temperature controller)
  • 4 x DIN Rail on the sides
  • 4 x Wall Mount Kits
  • 2 x Keys
