Ubiquiti Networks LAP-120

Ubiquiti LiteAP™ ac 5 GHz, 2x2 MIMO airMAX® AC Sector AP

The LiteAP™ ac is an ultra-lightweight airMAX ac Access Point with incredible performance and disruptive pricing.

airMAX ac Sector Coverage

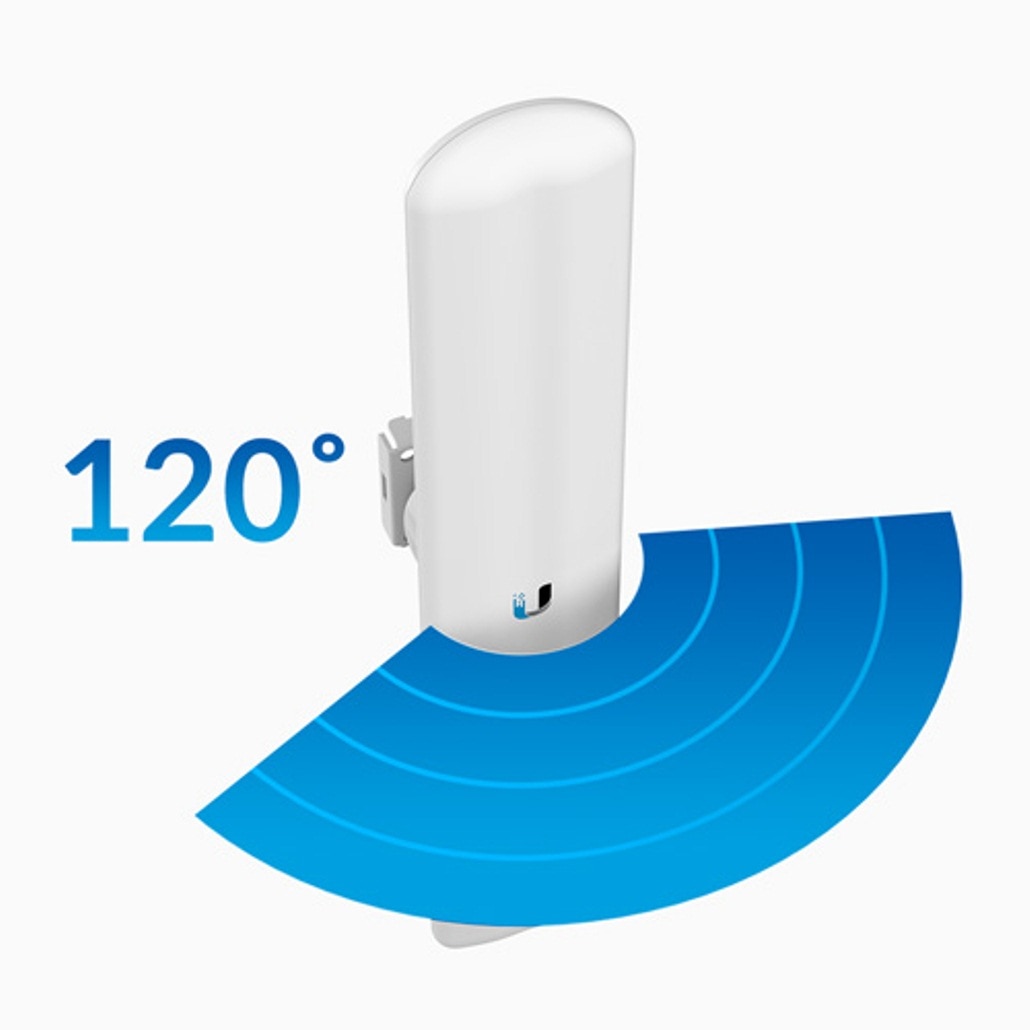

The LiteAP ac features a 2x2 MIMO antenna and communicates with multiple airMAX ac CPEs within a 120° coverage area.

Now with airOS®8

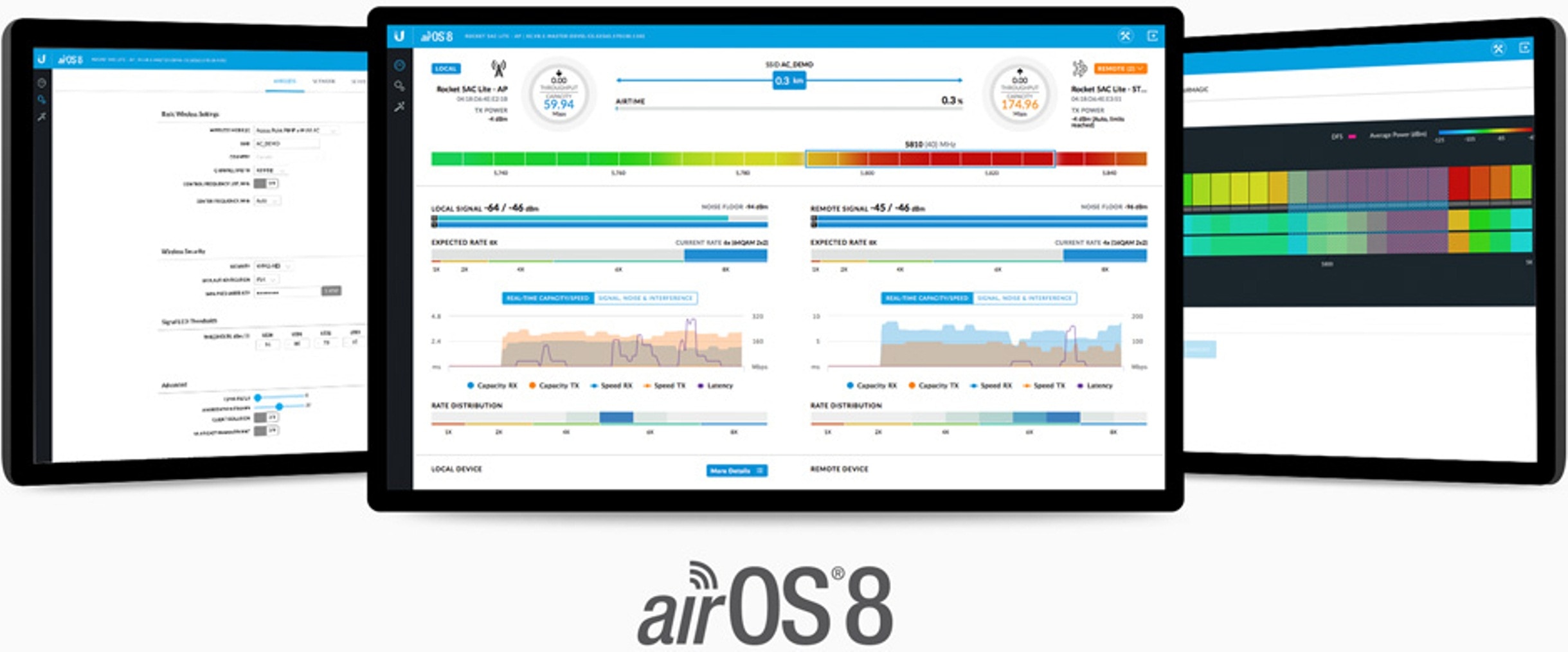

airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

Lightweight and Sleek Design

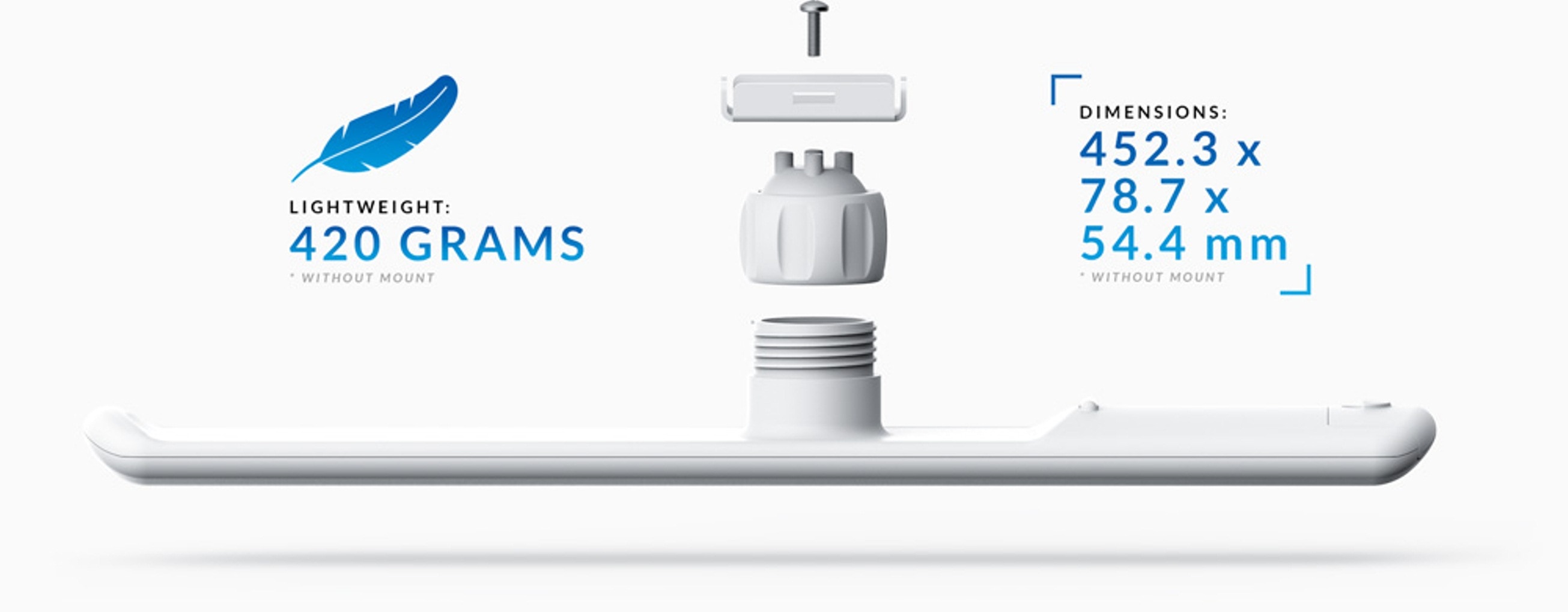

The LiteAP ac features a lightweight antenna with an integrated radio in a sleek and highly efficient design.

Installation Flexibility

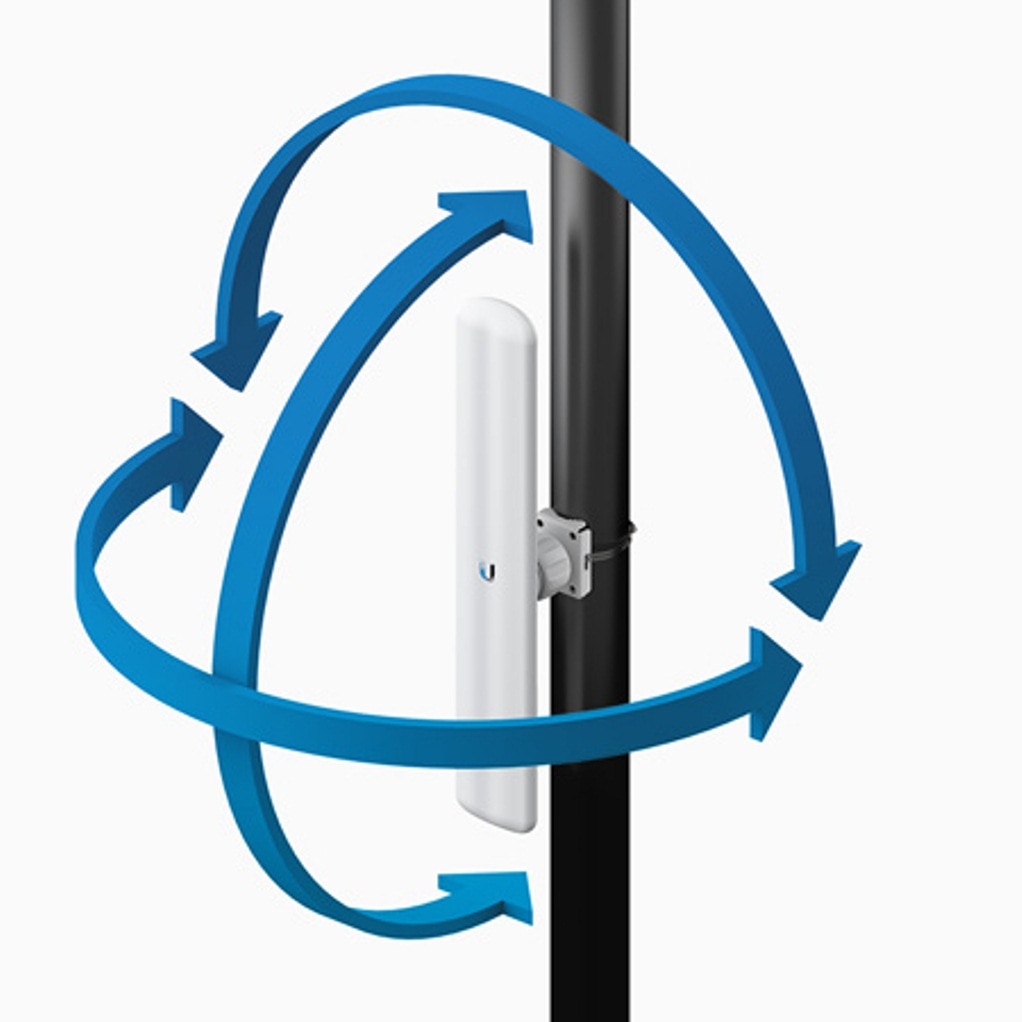

Featuring the freedom of three-axis alignment, the LiteAP ac fully assembles in seconds – no tools needed. Only a single wrench is required for pole-mounting.


Specifications LAP-120

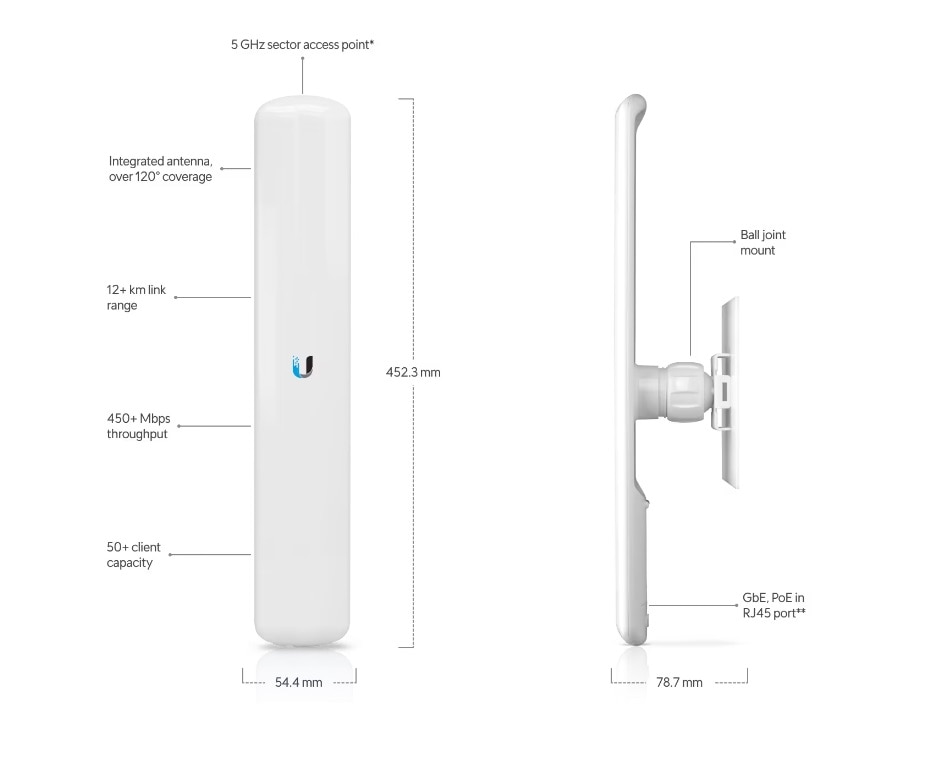

Dimensions (No Mount) 452.3 x 78.7 x 54.4 mm
(17.81 x 3.10 x 2.14")
Weight (No Mount) 420 g (14.82 oz)
Mounting Kit Pole Mounting Kit (Included)
Networking Interface (1) 10/100/1000 Ethernet Port
Memory 64 MB
Max. Power Consumption 7W
Max. TX Power 25 dBm
Antenna Gain 16 dBi
Operating Frequency Worldwide: 5150 - 5875 MHz USA: 5150 - 5850 MHz
Power Supply 24V, 0.5A Gigabit PoE Adapter (Included)
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Processor Specs Atheros MIPS 74Kc, 533 MHz
Operating Temperature -40 to 70° C (-40 to 158° F)
Operating Humidity 5 to 95% Noncondensing
Shock and Vibration ETSI300-019-1.4
ETSI Specification EN 302 326 DN2
ESD/EMP Protection ± 24 KV Contact / Air
Wireless Approvals FCC, IC, CE
