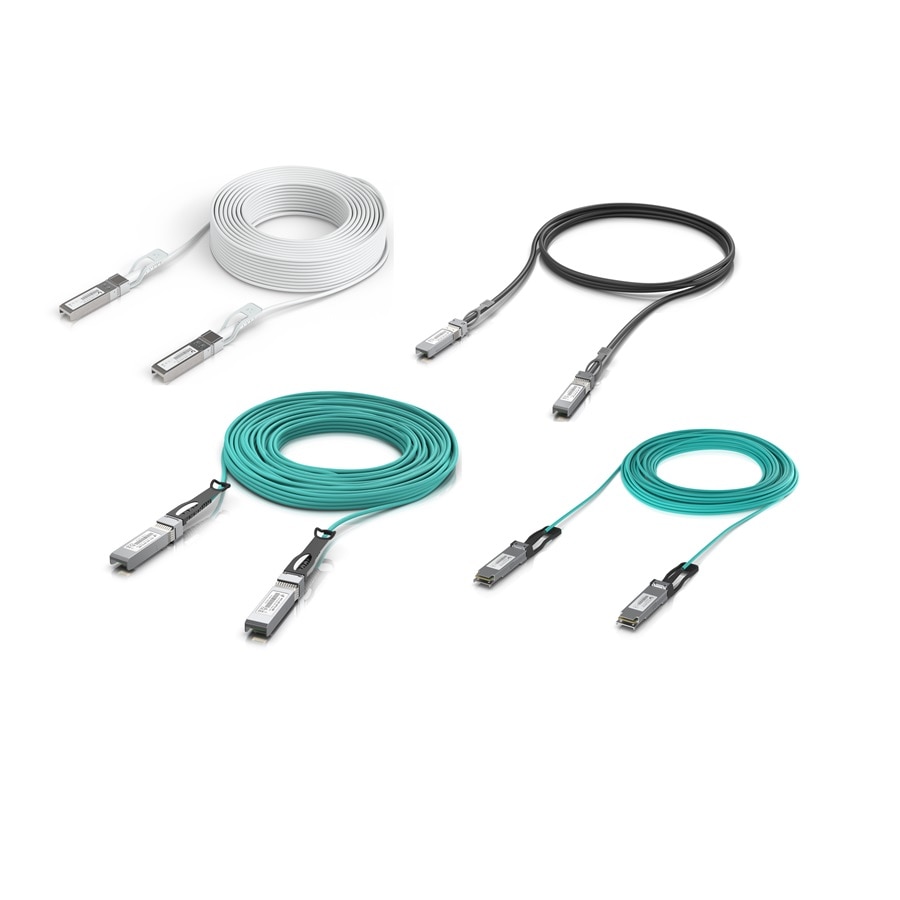

Ubiquiti Networks Direct Attach Cables
- SKU: Direct Attach Cables
$13.00 to $319.00Select options
- Manufacturer: Ubiquiti Networks
Product Information
Ubiquiti Networks Uplink Cable
Direct attach cable with auto link optimization for seamless 1G SFP, 10G SFP+, and 25G SFP28 interconnects between UniFi devices.
Features:
- Supported data rates: 25/10/1 Gbps
- Compatible with SFP28, SFP+, and SFP interfaces
- Auto-optimization of link speed and stability when used to interconnect UniFi devices
- Cable length: 0.15 to 30 m
Ubiquiti Networks 10G Direct Attach Cable
SFP+ direct attach cable with a 10 Gbps max data rate.
Features:
- Supported data rates: 10 / 1 Gbps
- Compatible with SFP+ and SFP interfaces
- Cable length: 0.5 to 3 m
Ubiquiti Networks 25G Direct Attach Cable
SFP28 direct attach cable available with a 25 Gbps max data rate.
Features:
- Supported data rates: 25/10/1 Gbps
- Compatible with SFP28, SFP+, and SFP interfaces
- Cable length: 0.5 to 3 m
Ubiquiti Networks 100G Direct Attach Cable
QSFP28 direct attach cable with a 100 Gbps max data rate.
Features:
- Supported data rates: 100 / 40 Gbps
- Compatible with QSFP28 and QSFP+ interfaces
- Cable length: 0.5 to 3 m
Specifications
Specifications Uplink Cable
| Connector type | SFP28 to SFP28 |
| Cable length | 0.15, 0.3, 3, 30 m (0.5, 1, 9.8, 98.4 ft) |
| Cable jacket | PVC |
| Jacket OD | 0.15, 0.3 m: 4.5 mm 3, 30 m: 3 mm |
| Min. bend radius | 20 mm |
| Supported data rates | 25/10/1 Gbps |
| Jacket color | White |
| Ambient operating temperature | 0 to 70° C (32 to 158° F) |
Specifications 10G Direct Attach Cable
| Connector type | SFP+ to SFP+ |
| EQ | Passive |
| AWG | 24 / 30 |
| Cable length | 0.5 / 1 / 3 m (1.6 / 3.3 / 9.8 ft) |
| Cable jacket | PVC |
| Jacket OD | 4.2 / 6.0 mm |
| Supported data rates | 10 / 1 Gbps |
| Jacket color | Black |
| Ambient operating temperature | 0 to 70° C (32 to 158° F) |
Specifications 25G Direct Attach Cable
| Connector type | SFP28 to SFP28 |
| EQ | Passive |
| AWG | 26 / 30 |
| Cable length | 0.5 / 1 / 3 m (1.6 / 3.3 / 9.8 ft) |
| Cable jacket | PVC |
| Jacket OD | 4.1 / 5.2 mm |
| Supported data rates | 25 / 10 / 1 Gbps |
| Jacket color | Black |
| Ambient operating temperature | 0 to 70° C (32 to 158° F) |
Specifications 100G Direct Attach Cable
| Connector type | QSFP28 to QSFP28 |
| Cable length | 0.5 / 1 / 3 m (1.6 / 3.3 / 9.8 ft) |
| Wire | 30AWG |
| Cable jacket | PVC |
| Jacket color | Black |
| Jacket OD | 7 mm |
| Min. bend radius | 37 mm |
| Supported data rates | 100 / 40 Gbps |
| Max. power consumption | 2.5W |
| Ambient operating temperature | 0 to 70° C (32 to 158° F) |
