Ubiquiti UISP Horn 5.15-6.875GHz 19.5dBi Antenna

(0)No Reviews yet
  • SKU: UISP-Horn
  • Manufacturer: Ubiquiti Networks
  • Data Sheet: Download
  • Installation Guide:Download
Call for Availability

Product Information

Ubiquiti Networks UISP-Horn

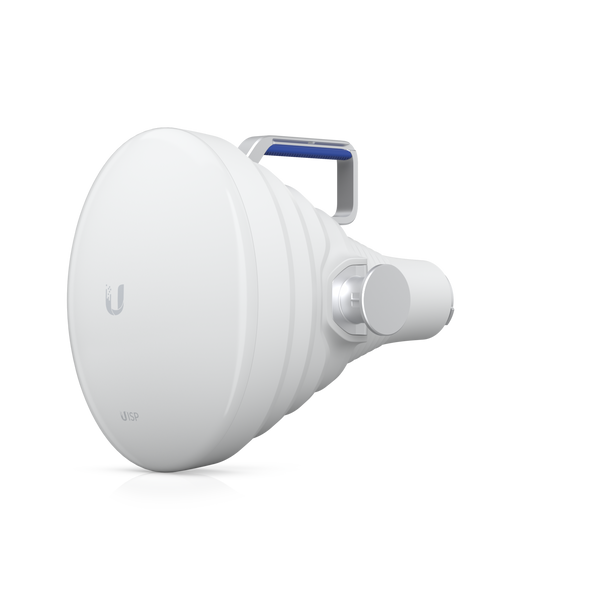

UISP Horn 5.15-6.875GHz 19.5dBi Antenna

High-isolation, point-to-multipoint (PtMP) horn antenna that covers a wide operating frequency range (5.15 - 6.875 GHz).

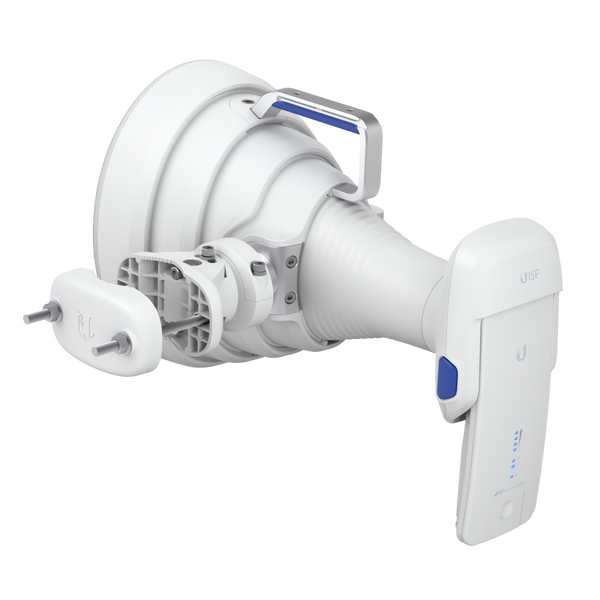

The UISP® Horn is an efficient PtMP antenna that provides high isolation within congested environments by utilizing its wide operating frequency range. With the included WaveGuide adapter, this antenna can be easily attached to an airFiber® 5XHD Radio (AF 5XHD), LTU® Rocket® , or airMAX® Rocket Prism® AC 5 GHz Radio (RP 5AC) to amplify their signal. The UISP Horn also has a latch on each side for secure, snap-in radio connection. Operation frequency may vary based on regional radio frequencies and regulations.



Features:

  • High-isolation 30° horn antenna that covers a wide operating frequency range (5.15 - 6.875 GHz)
  • Low backlobes for device co-location
  • 15+ km PtMP link range
  • Die-cast, UV-stabilized polycarbonate enclosure for enhanced durability and weatherproofing

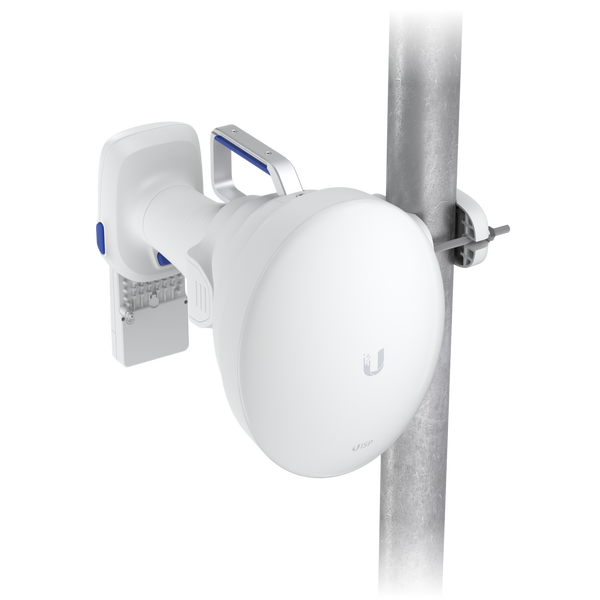

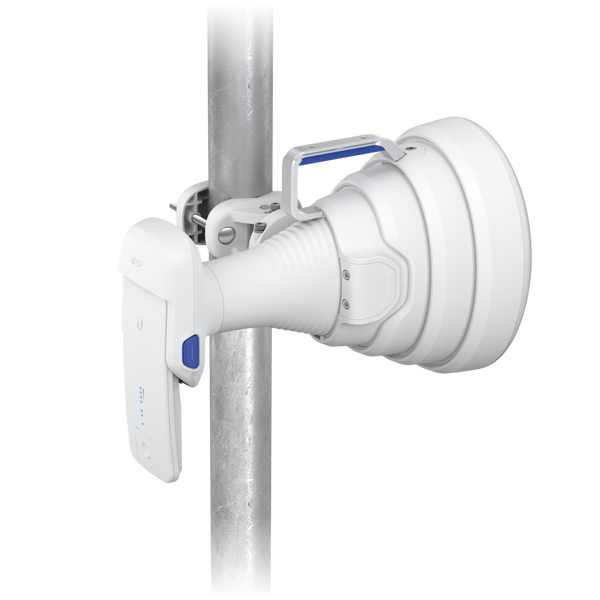

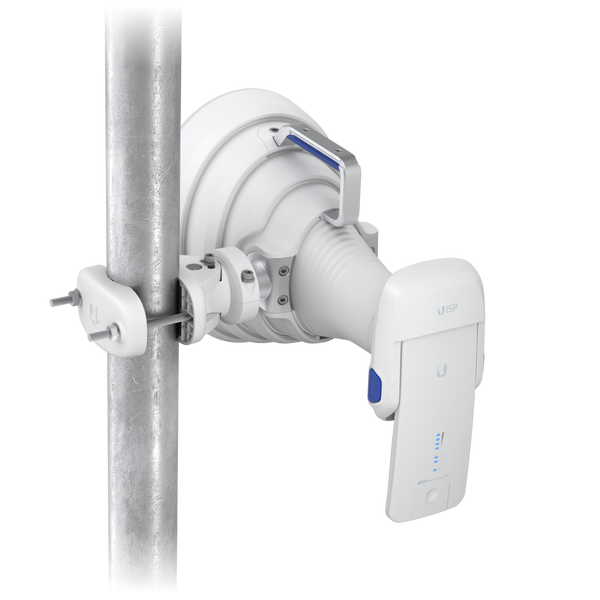

  • Pole-mountable antenna with a metal carrying handle
  • Two side latches for secure, snap-in radio connection

Specifications

Specifications UISP-Horn

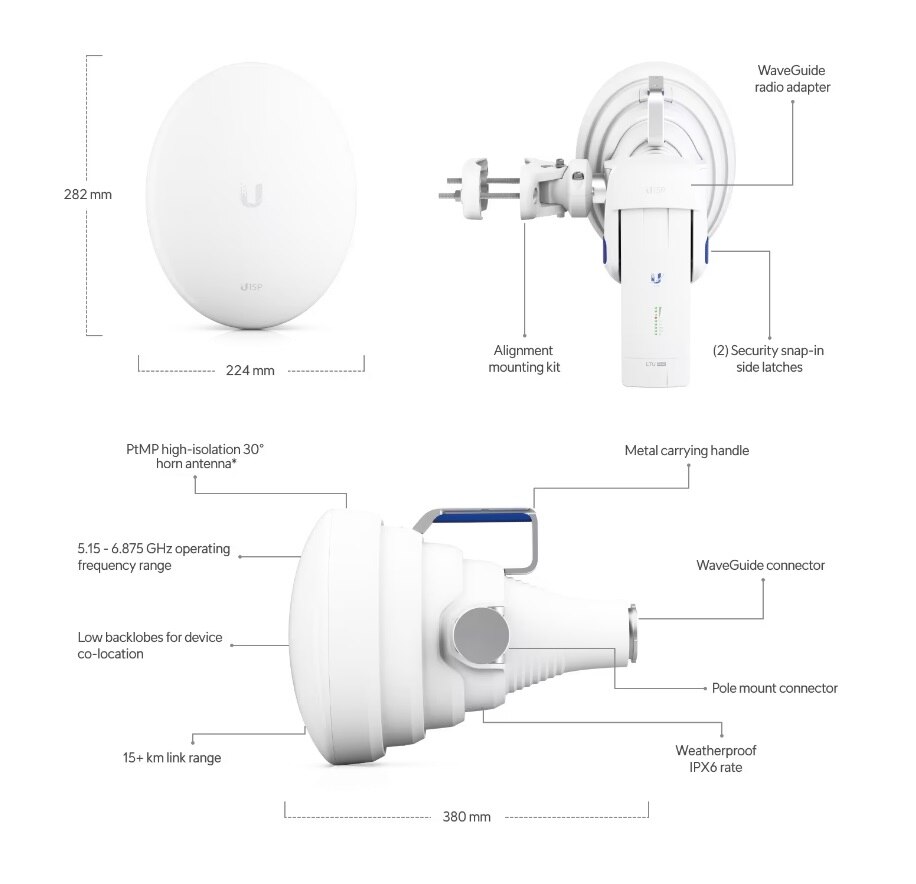

Dimensions282 x 224 x 380 mm (11.1 x 8.8 x 15")
WeightDevice: 3.06 kg (6.75 lb)
Mount: 925 g (2.04 lb)
Enclosure materialsUV stabilized polycarbonate, aluminum alloy
Wind survivabilityUp to 200 km/h (124 mph)
Wind loading90 N at 200 km/h
MountingAlignment mounting kit (included)
Mechanical adjustment: ±20° elevation, ±25° azimuth
Pole compatibility: Ø25 to 70 mm (Ø1 to 3")
WeatherproofingIPX6
Hardware
Frequency range5.15 to 6.875 GHz
Gain19.5 dBi
BeamwidthAzimuth: 30° (6 dB)
Elevation: 25° (6 dB)
Electrical downtilt
Maximum VSWR2:1
PolarizationDual-linear
Cross-pol isolation20 dB
Front-to-back ratioTypical: 45 to 50 dB
Min.: 40 dB
